HTY-FT224

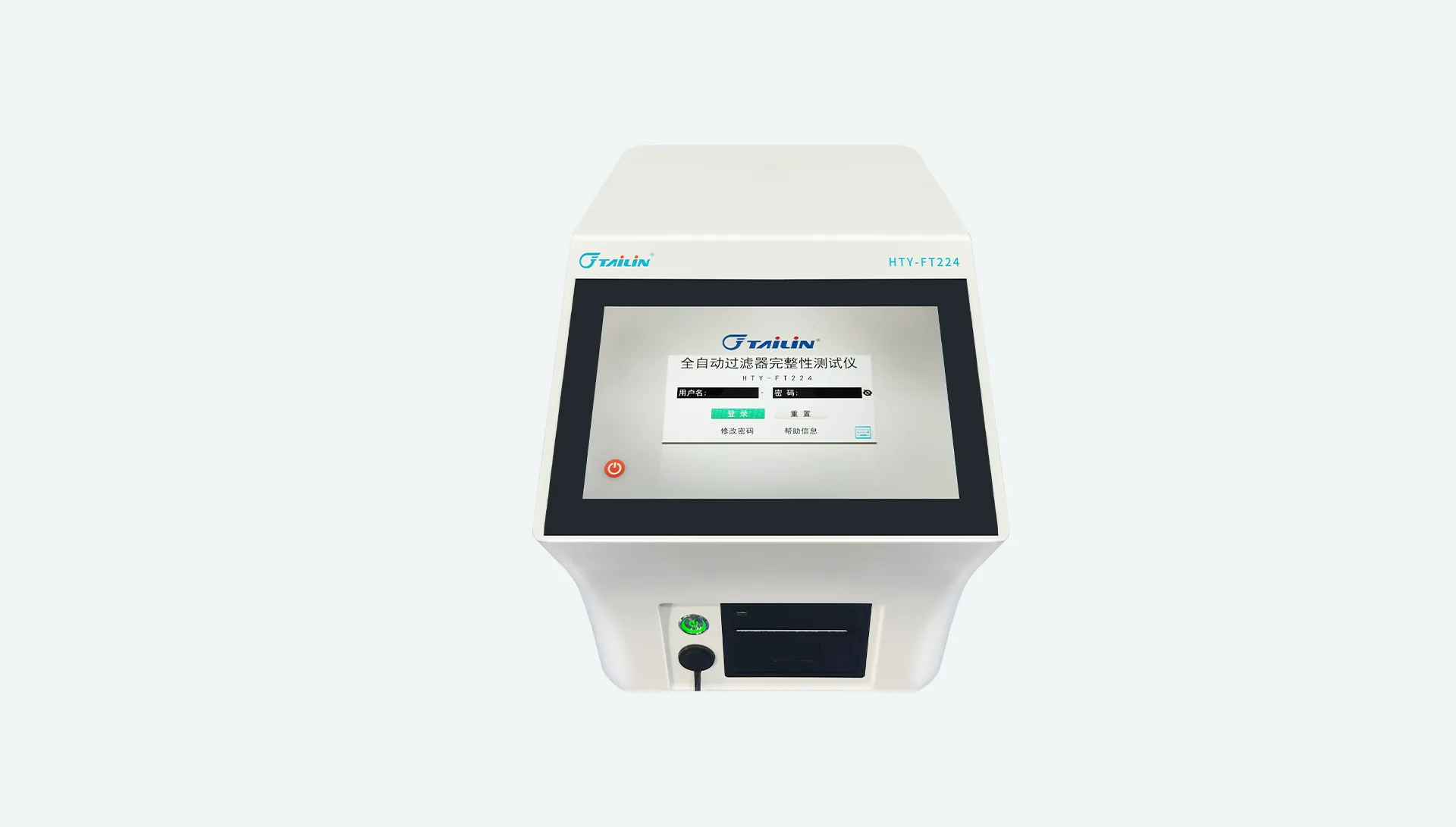

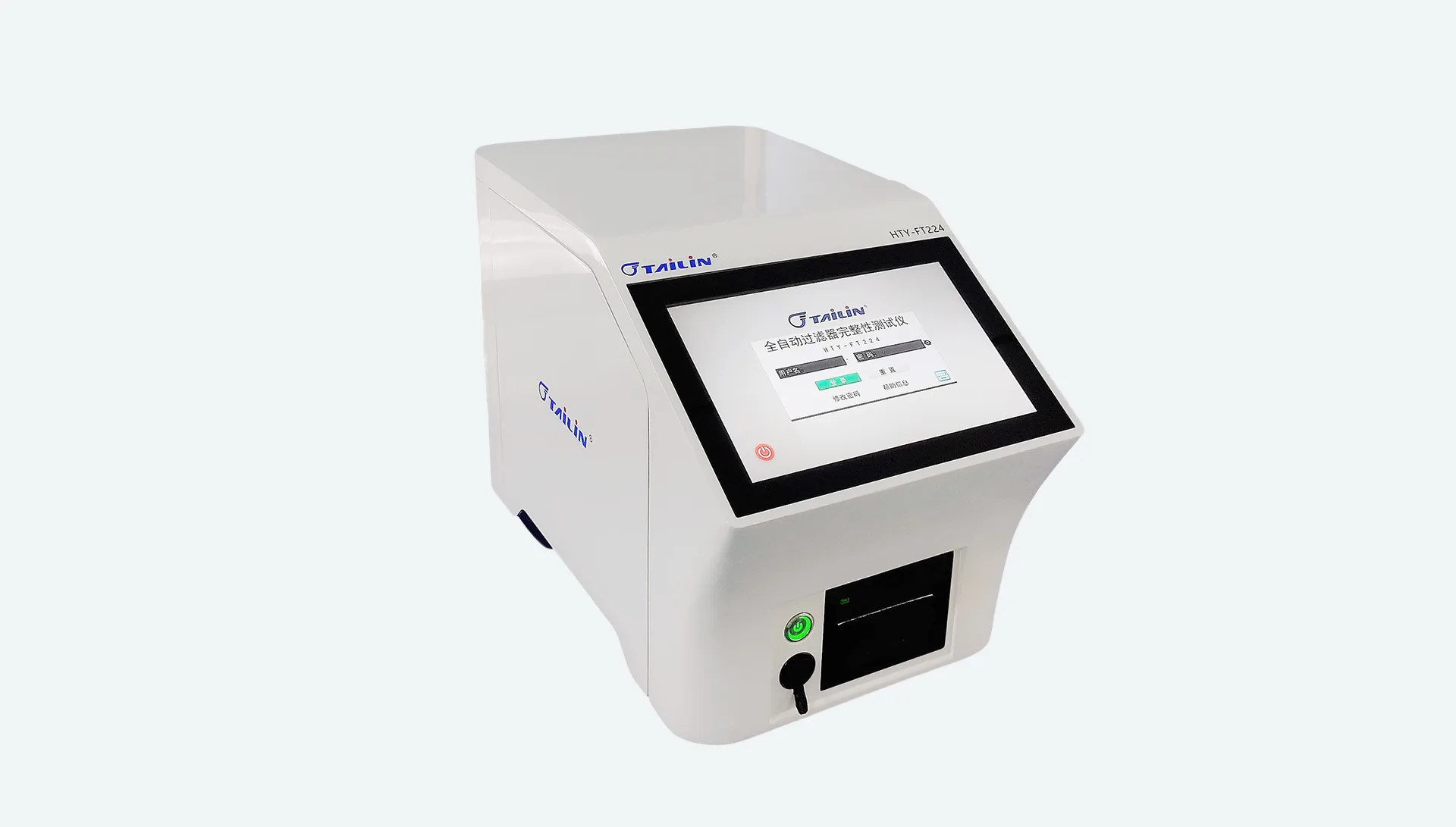

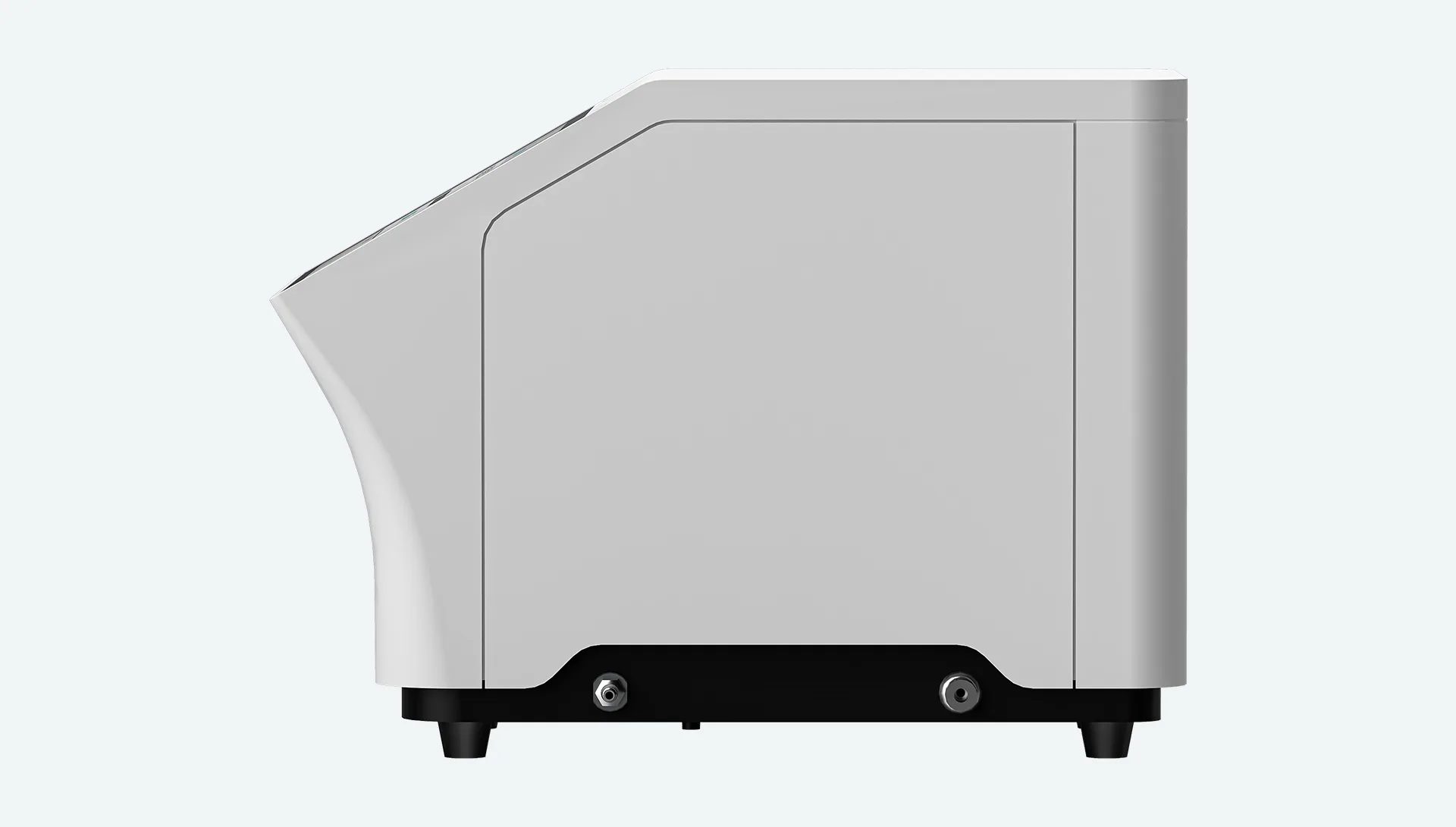

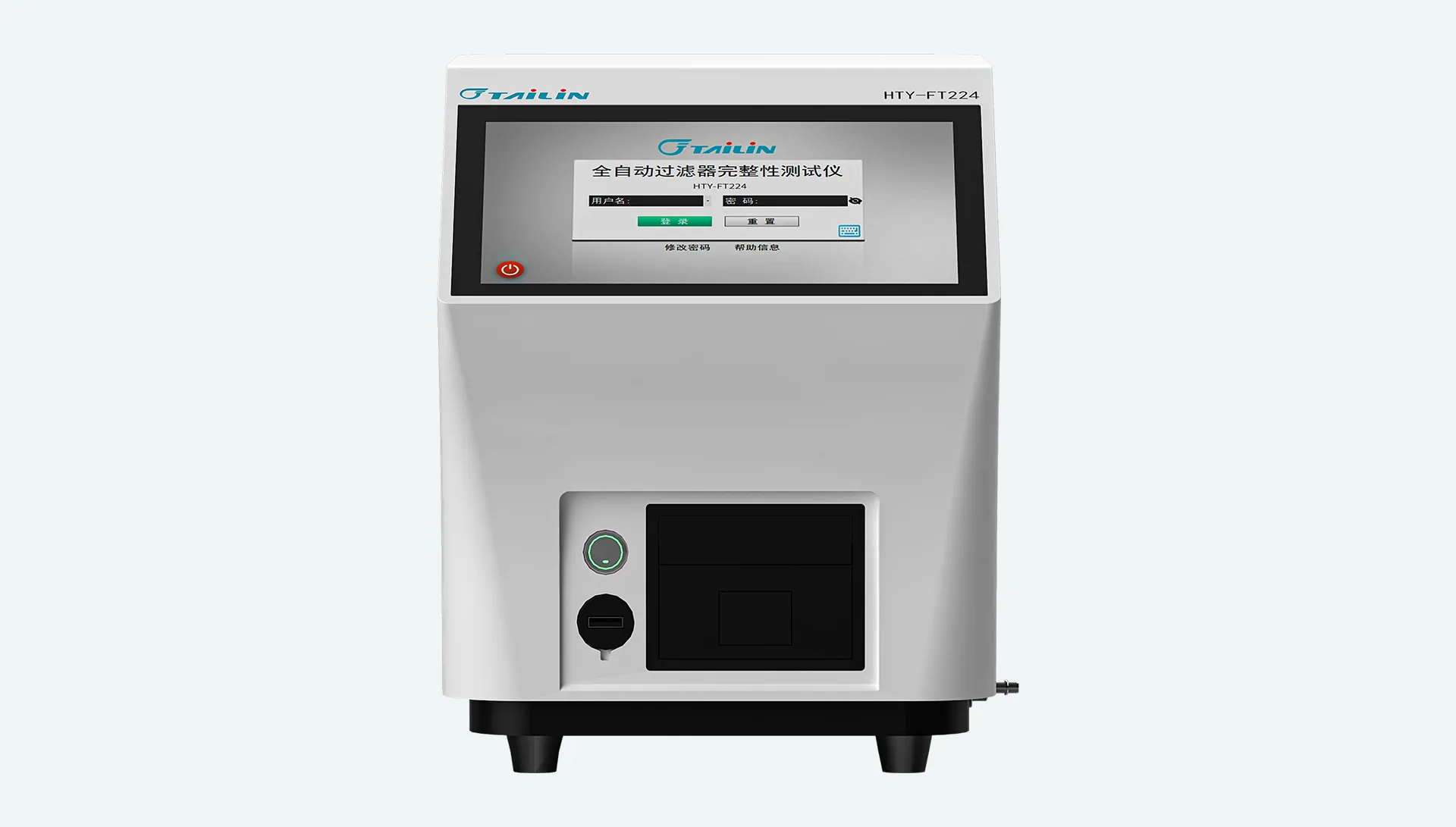

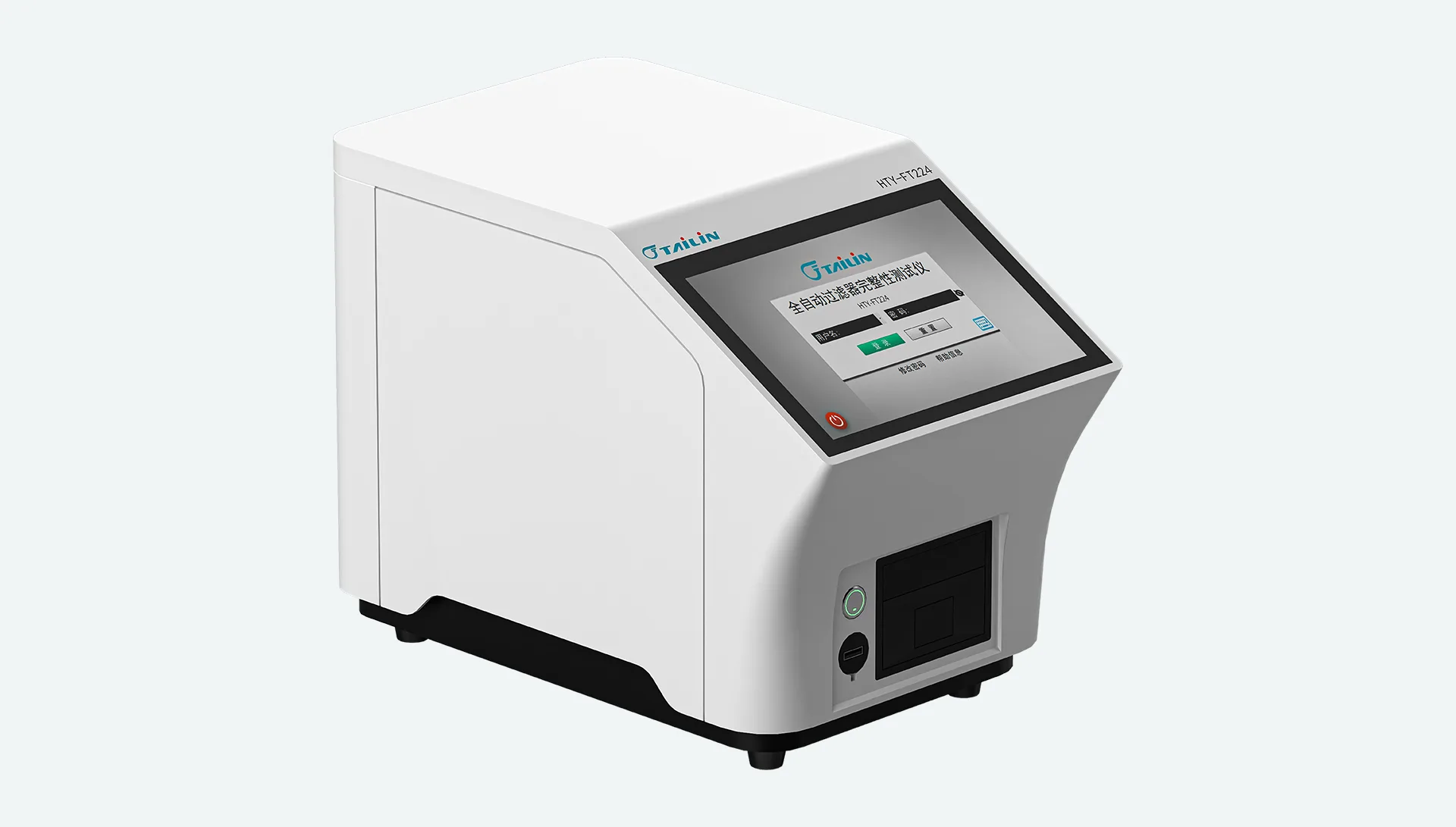

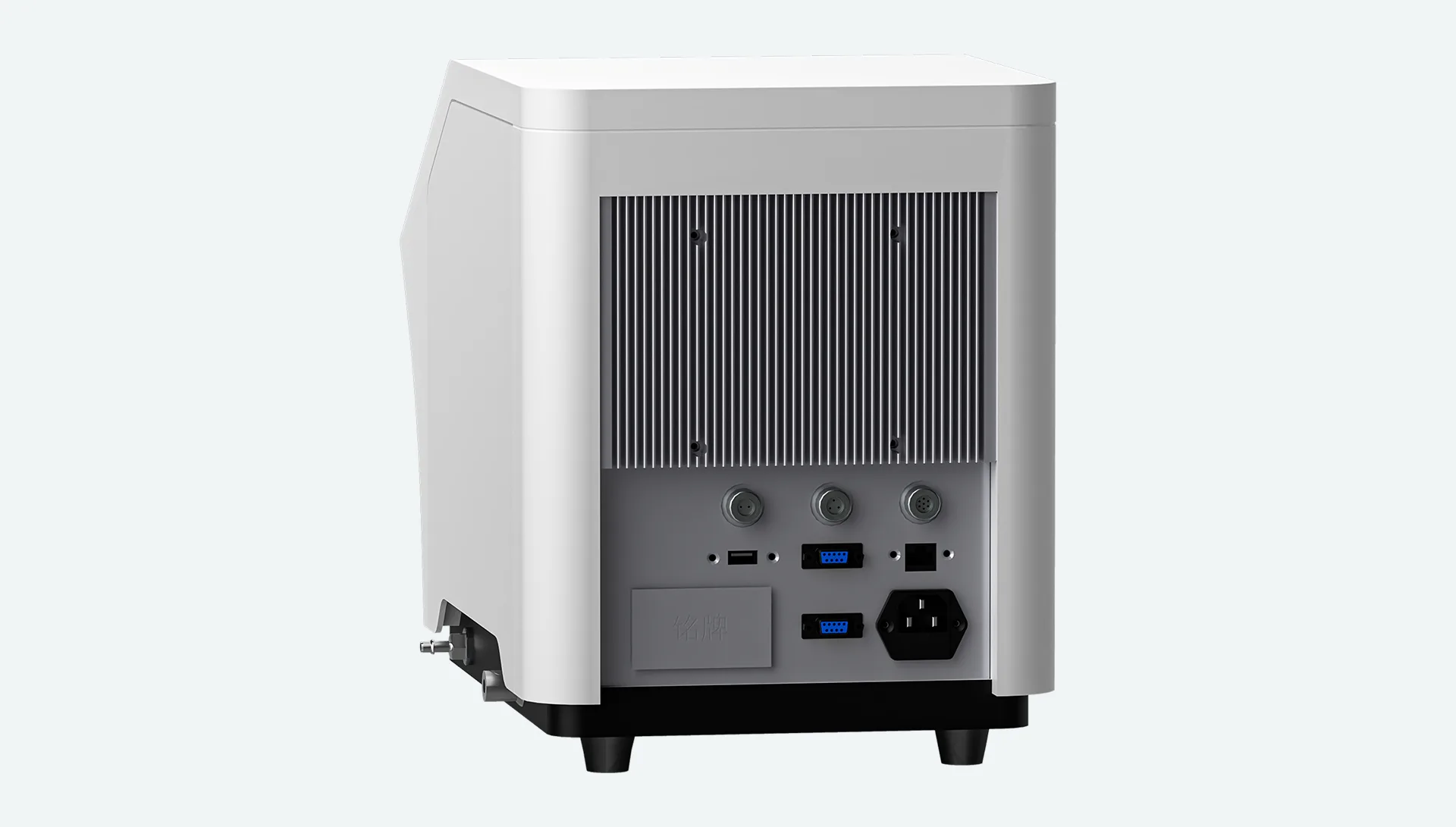

The Filter Integrity Tester FT224 is a microcomputer-based, intelligent, and highly sensitive precision analytical instrument independently developed by Tailin, specifically designed for detecting the integrity of filter elements and membranes in filtration systems.
| Input Voltage: (100-240)VAC | Test Accuracy to Forward Flow: ±4% or 0.1mL/min |
| Input Frequency: 50/60Hz | Test Accuracy to Water Intrusion: ±4% or 0.02mL/min |
| Input Power: 160W | Test Accuracy to Bubble Point: ±50mbar |
| Sensitivity to Forward Flow: 0.01mL/min | Test Range to Forward Flow: (0.1-1000)mL/min |
| Sensitivity to Water Intrusion: 0.01mL/min | Test Range to Water Intrusion: (0.01-100)mL/min |
| Sensitivity to Bubble Point: 1mbar | Test Range to Bubble Point: (100-8000)mbar |
| Repeatability: ≤3% | Test Range to Pressure Maintenance: (100-8000)mbar |
| Dimension: 27cm×46cm×35cm | Sensitivity to Pressure Hold: 1mbar |
