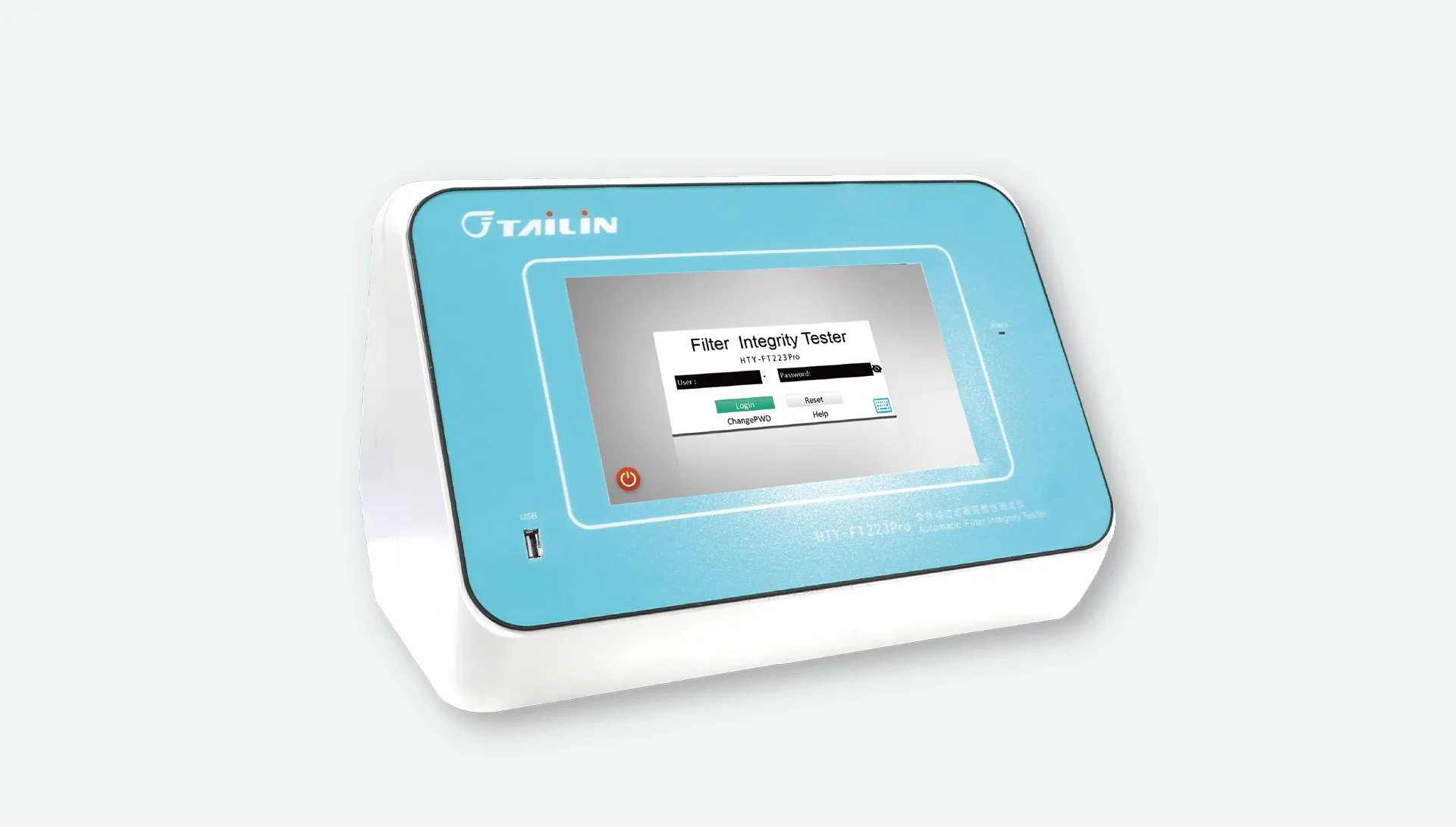

HTY-FT223 Pro
The Filter Integrity Tester FT223Pro is a microcomputer-based, intelligent, and highly sensitive precision analytical instrument, independently developed by Tailin, specifically designed to detect the integrity of filter elements and membranes in filtration systems.
Dust-proof & Backflow-proof Design: Easily cleaned to prevent liquid backflow and microbial contamination upstream of the filter.
Full Touch Screen Operation: 10-inch ultra-large capacitive screen with high resolution.
Dust-free High-Fidelity Printing Technology: Data results can be printed out quickly and efficiently and stored for a long time, with a storage period of more than 10 years.
Water-proof Design: IP54 protection level, to prevent the equipment from short circuiting due to sudden splashing of water droplets.
Wireless Transmission: Can be connected to wireless networks, LANs, and supports data remote management and synchronization.
Data Integrity: Compliant with 21CFR part 11, 4-level user access, audit trails, and various forms of backup.
| Input Voltage: (100-240)VAC | Test Accuracy to Forward Flow: ±4% or 0.1mL/min |
| Input Frequency: 50/60Hz | Test Accuracy to Water Intrusion: ±4% or 0.2mL/min |
| Input Power: 160W | Test Accuracy to Bubble Point: ±50mbar |
| Sensitivity to Forward Flow: 0.01mL/min | Test Range to Forward Flow: (0.1-600)mL/min |
| Sensitivity to Water Intrusion: 0.01mL/min | Test Range to Water Intrusion: (0.01-100)mL/min |
| Sensitivity to Bubble Point: 1mbar | Test Range to Bubble Point: (100-8000)mbar |
| Repeatability: ≤3% | Test Range to Pressure Maintenance: (100-8000)mbar |
| Dimension: 42cm×30cm×28cm | Weight: 10kg |
Filter integrity testing is required to ensure the effectiveness of sterile filtration, which is an essential terminal sterilization step for the microbial safety of biopharmaceutical products. Pre-use testing confirms that the filter meets the manufacturer’s specifications and has not been damaged during sterilization. Post-use testing verifies that the filter maintained its integrity during operation and achieved the expected bacterial retention performance.
A filter integrity tester determines filter or membrane integrity by measuring or observing the volume of gas that passes through a pre-wetted filter or membrane under a defined gas pressure gradient.
The main unit consists of three parts: the pressure control unit, the data processing unit, and the connection unit.
