Home > Filter Integrity Testing > Online Filter Integrity Tester

HTY-MBP

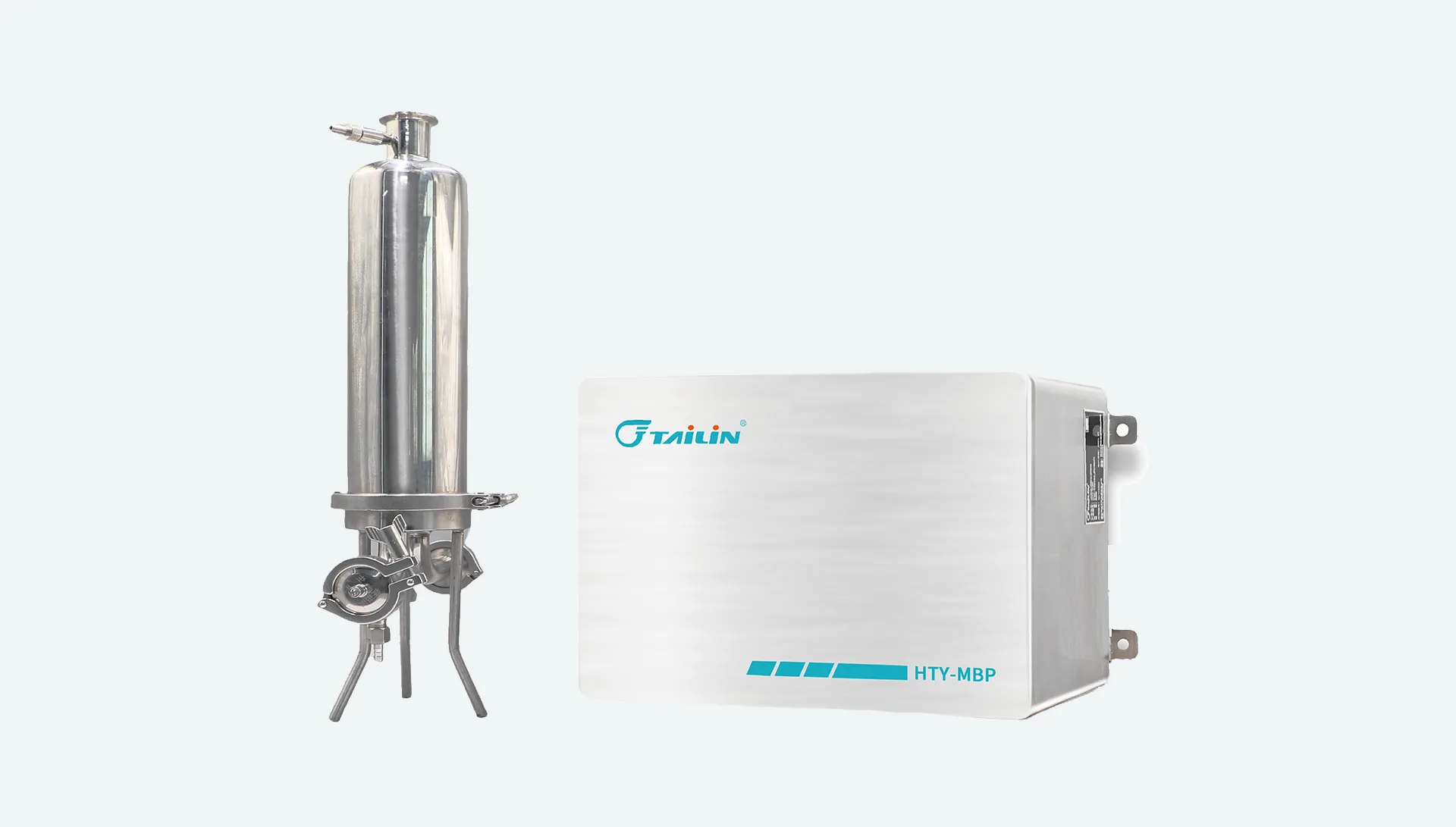

Online Filter Integrity Tester

Designed Specifically for PUPSIT Process, online module, industrial site, standalone function

Introduction

Features

Specifications

Applications

Inquiry

A filter integrity tester is a testing device that verifies the integrity of filter elements, such as filter cartridges and filter membranes, using a non-destructive method.

Widely used in industries such as pharmaceuticals, bioengineering, and food and beverage.

Online Filter Integrity Tester
Online Filter Integrity Tester
Online Filter Integrity Tester

For PUPSIT Process

Customizable Functions

Standalone Function

Features

  • Designed specifically for PUPSIT Process: High level of aseptic maintenance during online filter integrity testing.
  • Remote Online Operation: Simplifies the complexity of PUPSIT and effectively avoids masking effects.
  • Customizable Functions: Test items include bubble point, diffusive flow, water intrusion, or pressure hold.
  • Standard Fieldbus Functionality: Signal access to remote control terminals(e.g., PLC, etc. to transmit test parameters to the instrument for assigning and running integrity tests.
  • Module Fully Complies with DI Requirements: Real-time data and status can be accessed via PLC HMI (start, stop, status, results), and data is managed by SCADA.
  • Convenient Installation: Users can choose different installation methods, such as desktop or clamp-on types, according to different working conditions and environments.

Specifications

Input Voltage (100-240)VAC
Input Frequency 50/60HZ
Input Power 90W
Detection Accuracy Bubble Point±50mbar
Detection Range Bubble Point 400-8000mbar
Sensitivity Bubble Point 1mbar
Repeatability Error ≤3%
Dimensions 300×200×200mm

Applications

The product can be used for:

1) Disposable filtration system PUPSIT

2) Radiopharmaceutical production

3) Pharmaceutical liquid preparation system

4) Intake pressure recovery system on freeze dryers
Tailin Bioengineering

Pharmaceutical liquid preparation system

Tailin Bioengineering

Radiopharmaceutical production

Tailin Bioengineering

Disposable filtration system PUPSIT
