Poultry Isolator
Developed by Tailin in accordance with national regulations and industry standards, this new generation animal housing isolator integrates multiple innovative technologies. It isdesigned to provide a high-cleanliness environment and a high-level biosafety guarantee for poultry and small animal rearing.
The poultry isolator is an isolation device designed to completely isolate microorganisms and house SPF chickens. It provides anexcellent isolated rearing environment for the animals and ensures safe protection for animal handlers and laboratory personnel, supporting double-sided operation.
The main body is made of 316L SS, fully welded, ground, and polished to a smooth finish.
The front and rear doors of the main chamber are made of tempered glass with high light transmittance,capable of withstanding hydrogen peroxide decontamination,and feature smooth,flush joints.
The main chamber is equipped with double-sided 3+3 glove ports, providing a wider field of vision for better observation and operation.
Side transfer chamber for material entry and bottom transfer chamber for waste removal, fast and convenient.
Physically separated high and low voltage wiring to minimize interference and safety risks.
Universal casters at the base for easy movement of the isolator.
Equipped with an operation screen for enhanced control and ease of use.
Rational ventilation and filtration system to minimize the impact of small particles and animal dander on the environment, providing a better living space.
Integrated heating system within the main chamber to provide a stable internal temperature.
The equipment is stable and safe, ensuring reliable performance.

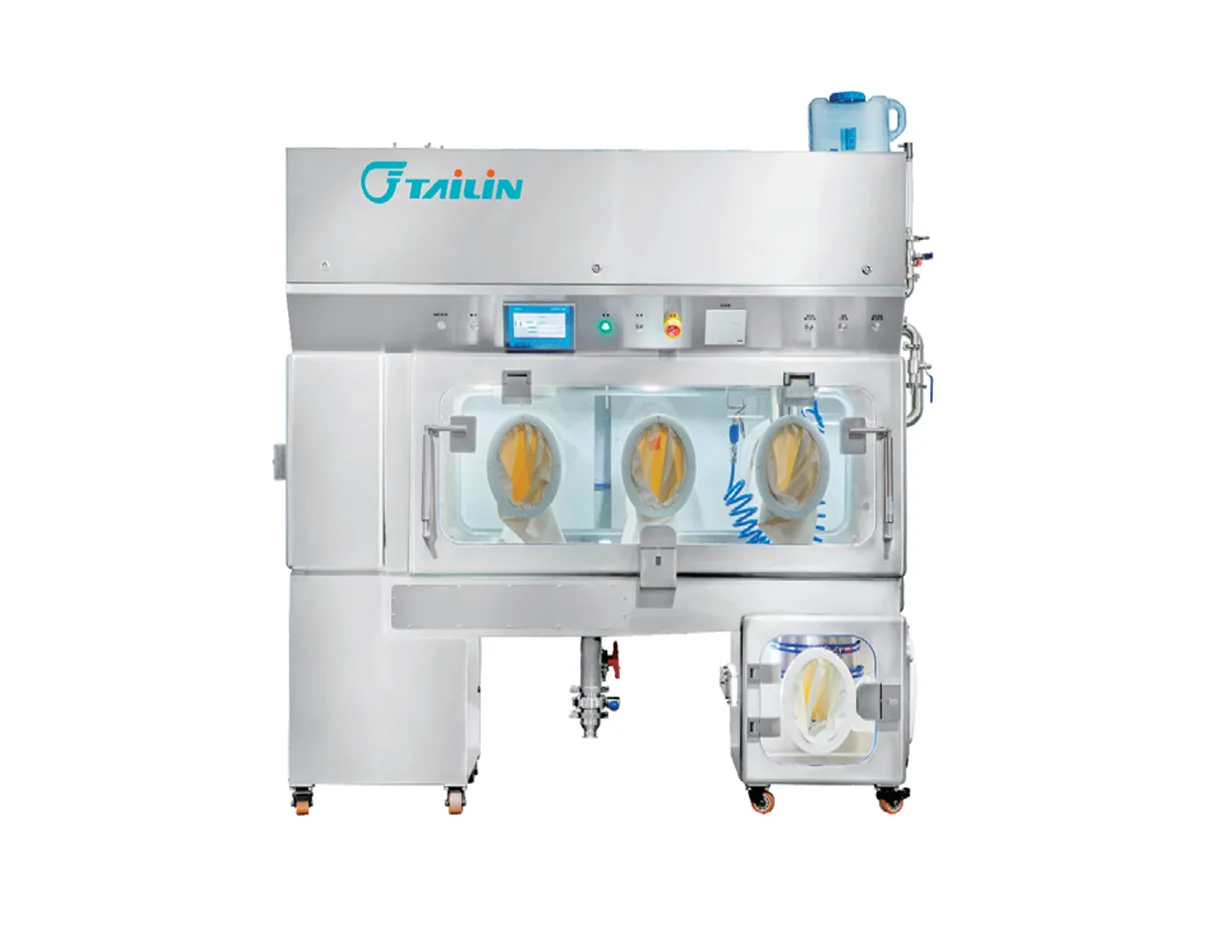

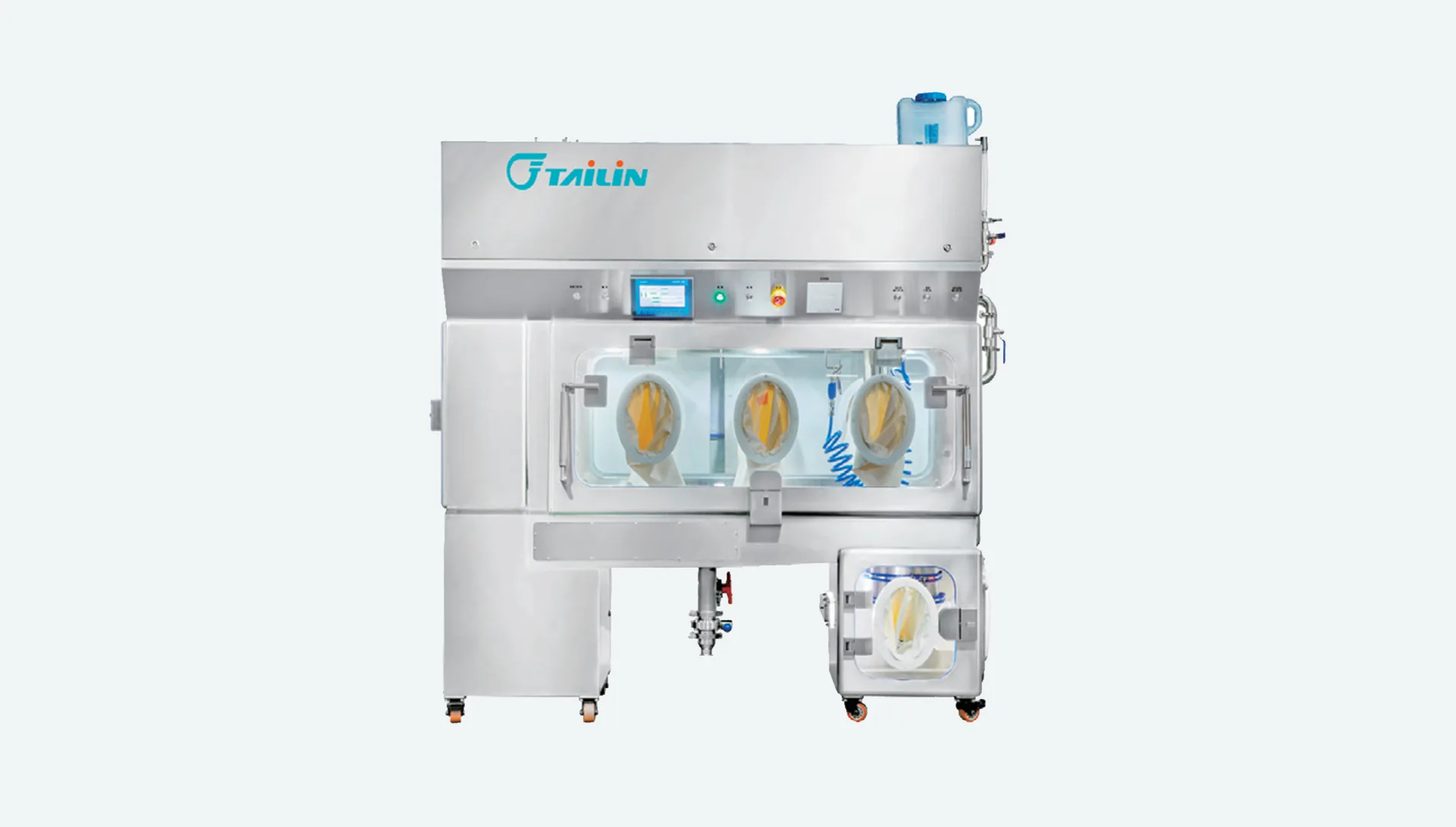

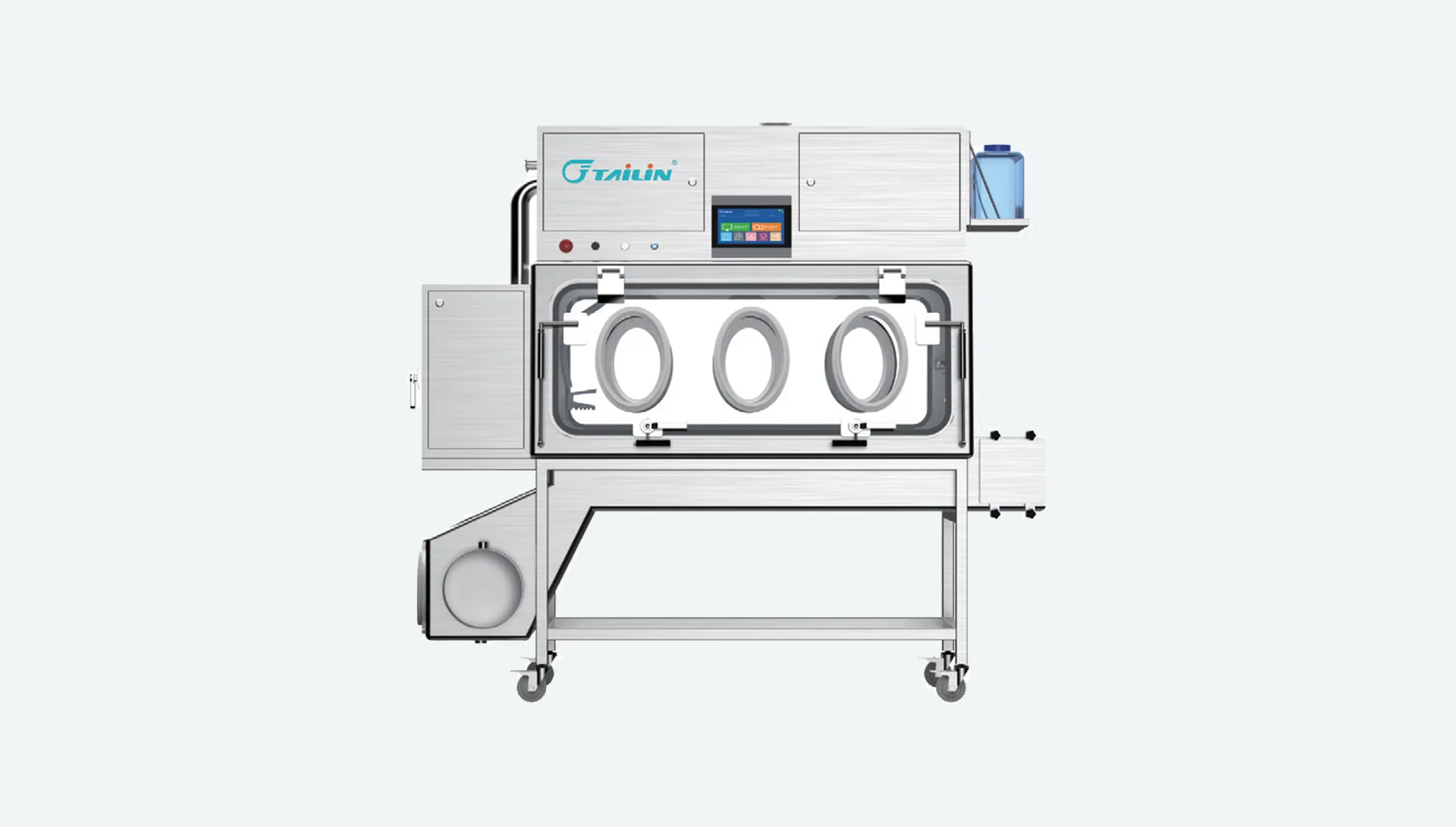

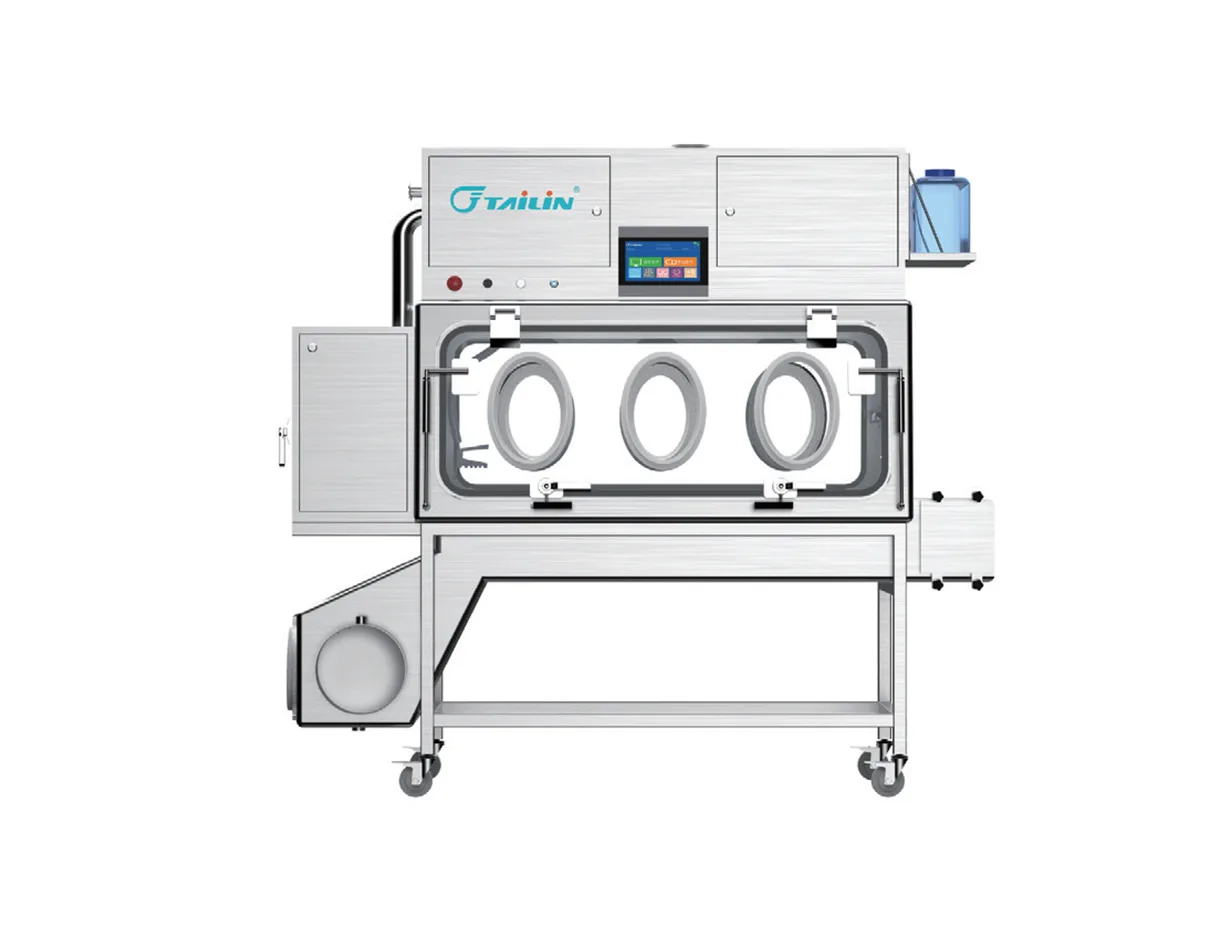

| Model: LH3-1D-G6-BS | Model: LH3-1D-G6 |
| Type: Biosafety Type | Type: Breeding Type (LH3-1D-G6) |
| Power Supply: AC220V, 50Hz | Power Supply: AC220V, 50Hz |
| Power: ＜3kW | Power: ＜3kW |
| Overall Dimensions: L1870×W800×H2000mm | Overall Dimensions: L1870×W800×H1960mm |
| Internal Chamber Dimensions: L1500×W690×H660mm | Internal Chamber Dimensions: L1500×W690×H660mm |
| Operation Screen: 10-inch Touch Screen | Operation Screen: 7-inch Touch Screen |
| Isolator Differential Pressure: (-150)-150Pa adjustable | Isolator Differential Pressure: (-150)-0Pa adjustable |
| Working Illuminance: (150-300)Lux | Working Illuminance: (150-300)Lux |
| Animal Illuminance: (15-20)Lux | Animal Illuminance: (15-20)Lux |
| Air Change Rate: 20-50 times/h | Air Change Rate: 20-50 times/h |
| Airflow Velocity: ＜0.2m/s | Airflow Velocity: ＜0.2m/s |
| Ammonia Concentration: ≤14mg/m³ | Ammonia Concentration: ≤14mg/m³ |
| HEPA Filter Grade: H14 | HEPA Filter Grade: H14 |
| Alarm: Audible and visual alarm | Alarm: Audible and visual alarm |
| Sterilization Method: Reserved VH2O2 sterilization interface | Sterilization Method: Reserved VH2O2 sterilization interface |
| Aseptic Rapid Transfer: Double-layer gas-tight sealing | Aseptic Rapid Transfer: Mechanical seal |
| Noise: ≤60dB(A) | Noise: ≤60dB(A) |
The relevant regulations and industry standards are as follows:
GB14925-2023 Laboratory Animal-Requirements for Environment and Housing Facilities
GB50346-2011 Architectural and Technical Code for Biosafety Laboratories
GB50447-2008 Architectural and Technical Code for Laboratory Animal Facilities
RBT010-2019 General Requirements for the Evaluation of Barrier and Isolation Devices for Laboratory Animals
RBT019-2019 Guidelines for Performance and Environmental Parameter Verification Procedures for Laboratory Animal Facilities
RBT199-2015 Technical Specifications for Biosafety Performance Evaluation of Laboratory Equipment
Experimentation, Rearing, and Breeding of SPF Poultry (e.g., SPF Chickens)
Animal Quarantine
