  • Flexible Film Isolator

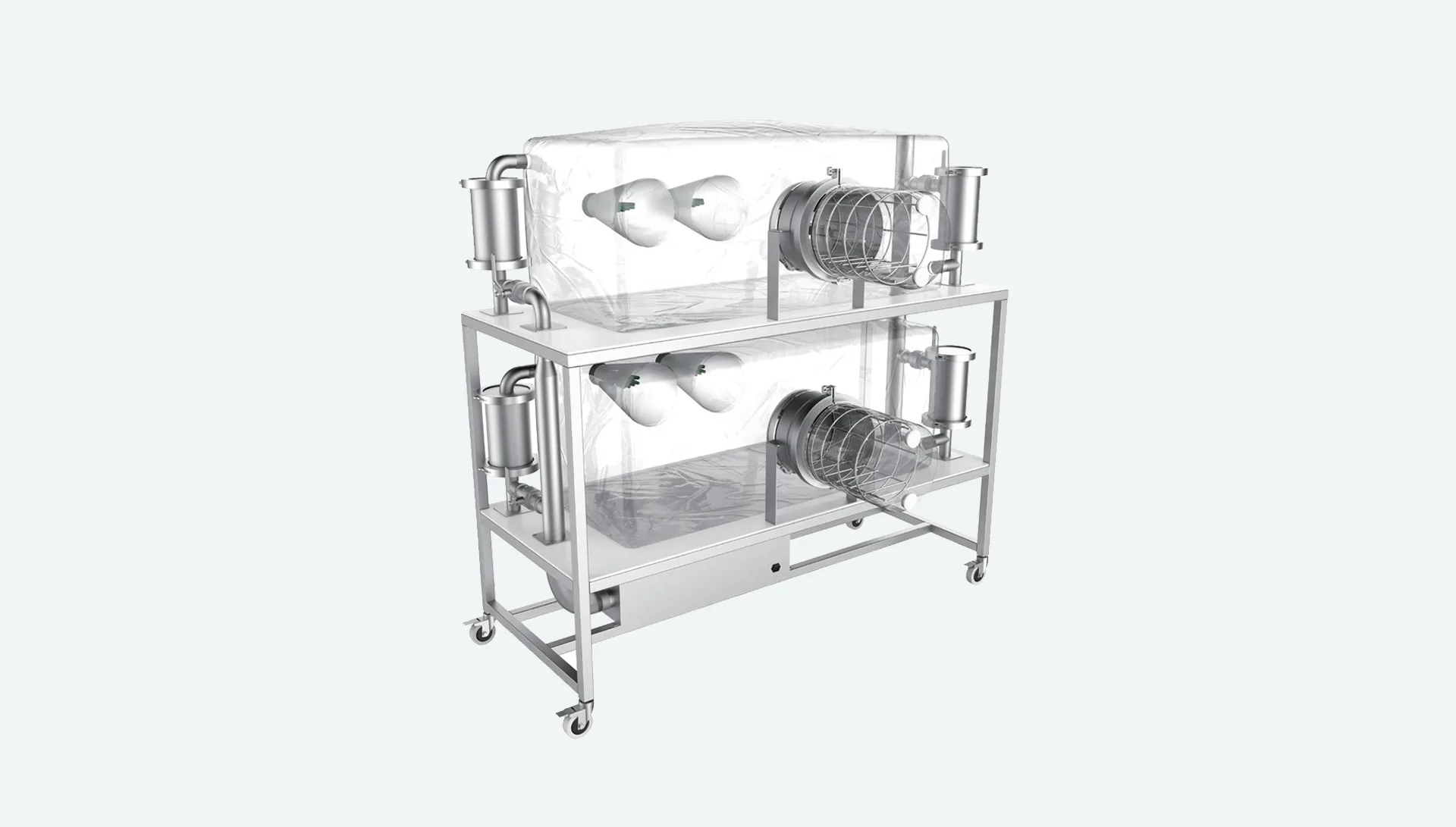

    Flexible Film Isolator

    Designed for high-density cluster operations of germ-free and SPF-grade mice and rats

    The flexible film isolator is designed for high-density cluster operations of germ-free and SPF-grade mice and rats. It can be used for the rearing and breeding of laboratory animals, offering space-saving benefits and a flexible layout while providing a safe and reliable environment for the animals.

    01
    Number of Chambers: 2
    02
    Internal Environment: Positive Pressure
    03
    Airflow Control: Air changes ≥ 20 times/h

    Model

    Features

    The chamber is made of high-transparency, tear-resistant, and high-toughness film, providing excellent internal visibility and resistance to various disinfectants and daily operations.

    Frosted film sleeves ensure smooth operation without sticking, providing operators with high flexibility and freedom of movement.

    Rapid material transfer channel equipped with double-sided sealed doors to meet sterile transfer requirements.

    Available in integrated and modular support frames to facilitate equipment entry.

    Inlet and exhaust are equipped with H14 HEPA filters and manual valves; each chamber is independently controlled to prevent cross-interference.

    Independent air inlet device with automatic control to provide a positive pressure environment for the chamber.

    Provides relatively uniform internal airflow coverage, with airflow pattern simulation ensuring no dead zones and a stable, consistent rearing environment.

    Specifications

    Model: LS1-2S-G8Model: LS1-2S-G4
    Overall Dimensions: L3200×W1130×H2200mmOverall Dimensions: L2000×W920×H1800mm
    Chamber Dimensions: L2500×W780×H870mmChamber Dimensions: L1500×W780×H870mm
    Operation Method: Single-sided operation, each unit equipped with 4 sets of operation sleevesOperation Method: Single-sided operation, each unit equipped with 2 sets of operation sleeves

    Applications
