  • Germ-free Mouse Isolator

    Germ-free Mouse Isolator

    Used for sterile operations and rearing of mice and rats

    Germ-free mouse isolators are primarily used for sterile operations and rearing of mice and rats. Utilizing an intelligent control system with built-in automated management programs, they feature multiple expansion ports and applications with powerful functionality. We provide complete equipment solutions for surgical experiments, sterile rearing, and sterile transfer. The entire workflow strictly controls exposure risks to maintain sterility, providing an efficient and convenient operational process along with a secure, sterile isolation environment.

    01
    Equipped with H14 HEPA filters
    02
    The front face adopts an ergonomic tilted design for ease of operation
    03
    The chamber interior is a rigid integrated welded structure with a smooth surface and rounded corners

    Model

    Germ-free Mouse Isolator

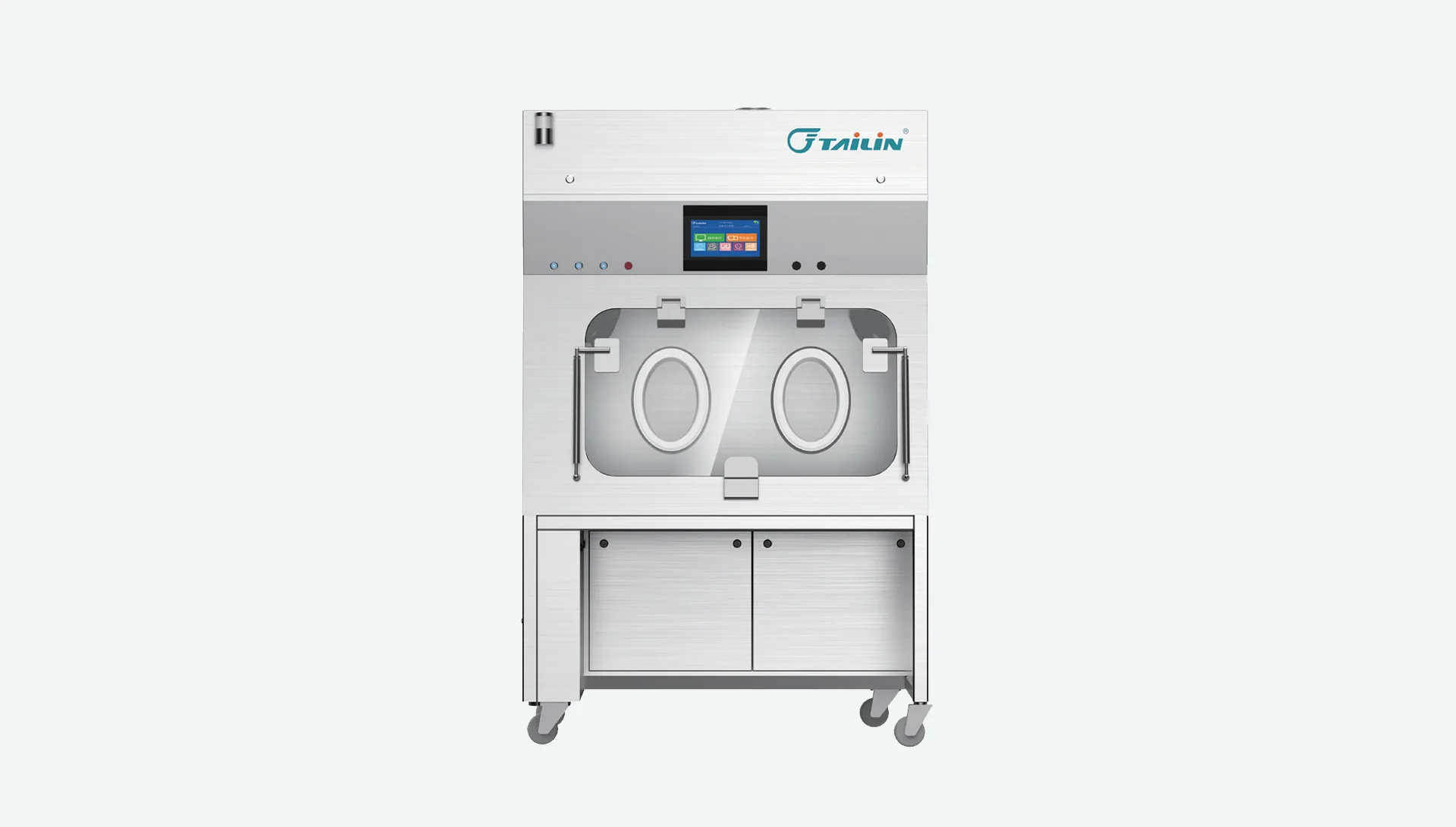

    LH1-1S-G2
    Germ-free Mouse Isolator

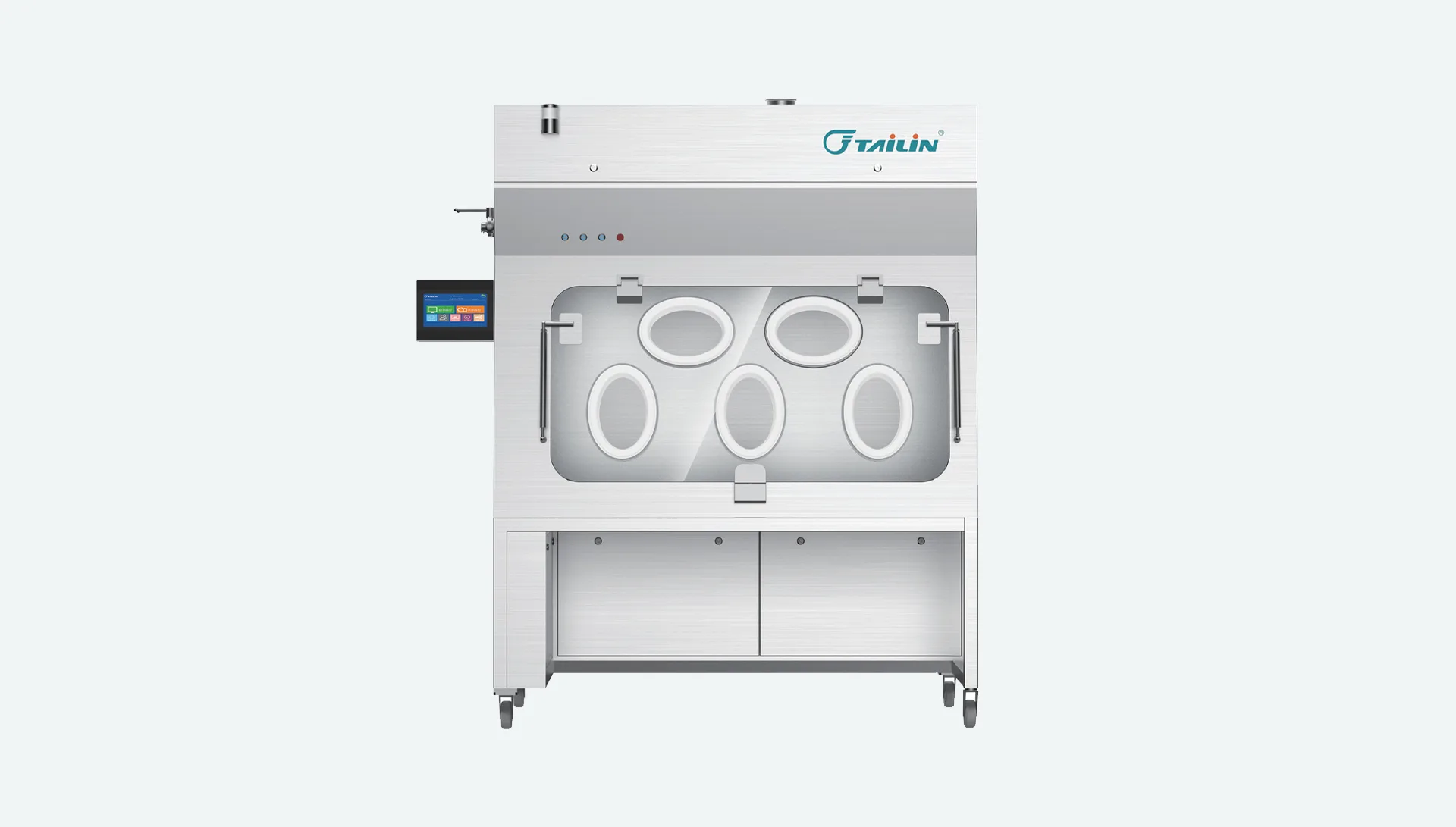

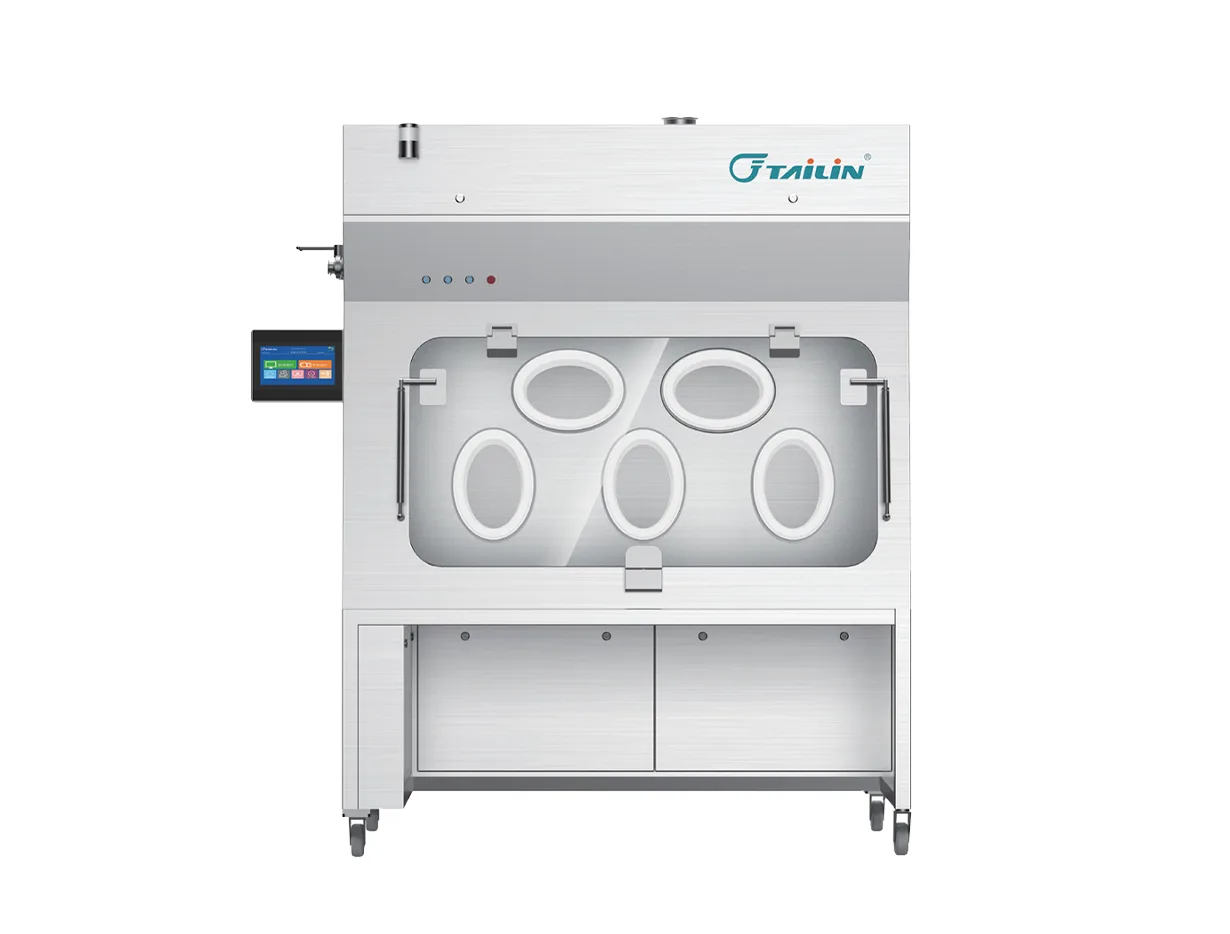

    LH1-1S-G5

    Features

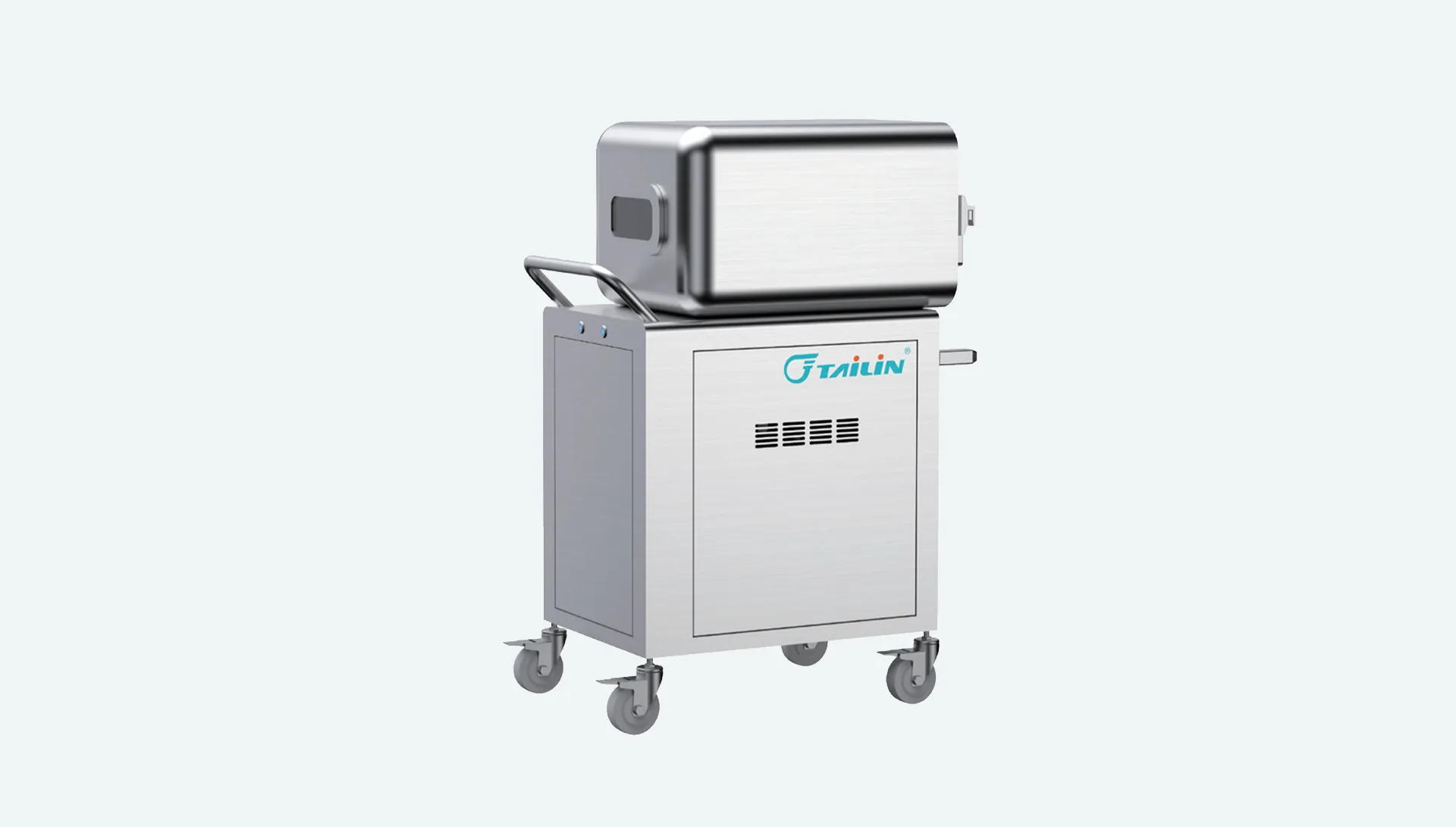

    The transfer trolley utilizes sterile docking to ensure the entire transfer process of animals and materials is protected from external environmental contamination.

    Inlet and exhaust air are equipped with H14 HEPA filters(99.995%MPPS efficiency per EN1822).

    The front face adopts an ergonomic tilted design for ease of operation.

    Front operating side features viewing windows with gloves and active inflatable sealing to ensure a stable sterile environment.

    The chamber interior is a rigid integrated welded structure with a smooth surface and rounded corners, free of burrs, sharp edges, cleaning dead zones, or contamination blind spots. The leakage rate is less than 0.5%Vol/hr at 2 times the working pressure.

    Reserved VH2O2 interfaces for external vaporized hydrogen peroxide generators or optional built-in integrated VH2O2 systems.

    Can monitor pressure differentials, temperature, humidity, and ammonia concentration within the chamber environment.

    Built-in lighting system for convenient operation and daily use.

    Specifications

    Model: LH1-1S-G2Model: LH1-1S-G5
    Function: Surgical experimentsFunction: Germ-free rearing
    Overall Dimensions: L1300×W820×H2050mmOverall Dimensions: L1700×W980×H2100mm
    Chamber Dimensions: L1200×W740×H770mmChamber Dimensions: L1700×W910×H920mm
    Operation Method: Single-sided operation, equipped with 2 sets of integrated sleeves on each operating faceOperation Method: Single-sided operation, equipped with 5 sets of integrated sleeves on each operating face
    Transfer Channel: Sterile transfer port, docks with sterile transfer trolleyTransfer Channel: Sterile transfer port, docks with sterile transfer trolley
    Sealed Door: Tempered glass viewing window, active inflatable sealingSealed Door: Tempered glass viewing window, active inflatable sealing
    Pressure Control: Adjustable from (-150) to 150 Pa; differential pressure between the interior and exterior of the chamber ≥ 50 PaPressure Control: Adjustable from (-150) to 150 Pa; differential pressure between the interior and exterior of the chamber ≥ 50 Pa
    Airflow Control: Air changes ≥ 20 times/hAirflow Control: Air changes ≥ 20 times/h
    Caging: /Caging: Built-in cage rack

    Applications
