  • Germ-free Pig Isolator

    Germ-free Pig Isolator

    Provides a comprehensive isolation equipment solution for the production of germ-free miniature pigs

    Provides a comprehensive isolation equipment solution for the production of germ-free miniature pigs, including hysterectomy units, sterile transfer systems, and germ-free rearing isolators. The entire workflow strictly controls exposure risks to maintain sterility, offering an efficient and convenient operational process alongside a secure, sterile isolation environment.

    01
    Equipped with H14 HEPA filters
    02
    The front face adopts an ergonomic tilted design for ease of operation
    03
    The chamber interior is a rigid integrated welded structure with a smooth surface and rounded corners

    Model

    Features

    The hysterectomy unit is equipped with a trough transfer channel and double-sided flat sealed doors, facilitating transfer and operation while ensuring no dead zones for sterilization.

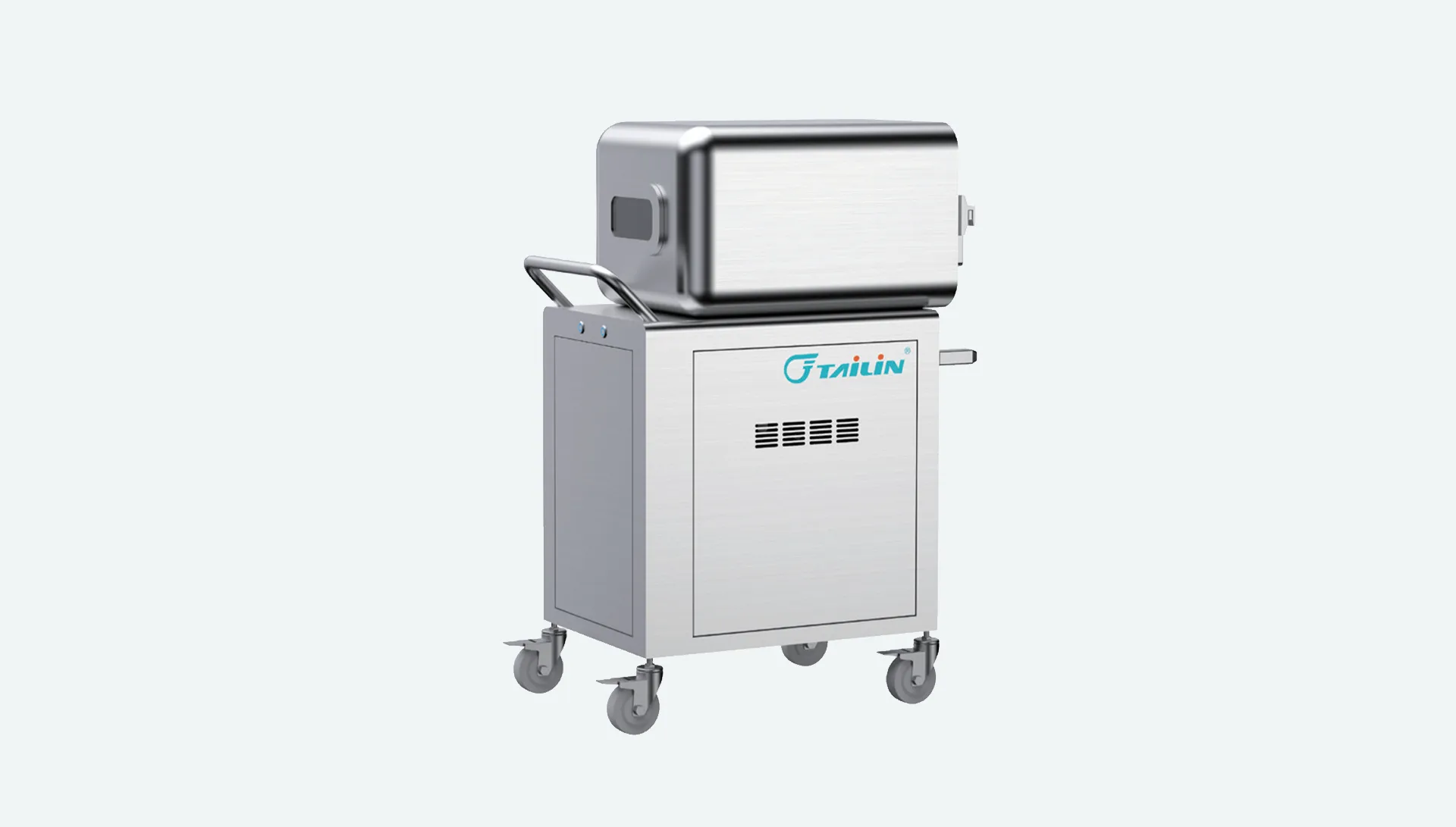

    The transfer trolley utilizes sterile docking to ensure the entire transfer process of animals and materials is protected from external environmental contamination.

    The waste removal process ensures no cross-contamination between the inside and the outside, safeguarding the safety of the internal environment.

    Inlet and exhaust air are equipped with H14 HEPA filters(99.995%MPPS efficiency per EN1822).

    The front face adopts an ergonomic tilted design for ease of operation.

    Front operating side features viewing windows with gloves and active inflatable sealing to ensure a stable sterile environment.

    The chamber interior is a rigid integrated welded structure with a smooth surface and rounded corners, free of burrs, sharp edges, cleaning dead zones, or contamination blind spots. The leakage rate is less than 0.5%Vol/hr at 2 times the working pressure.

    Reserved VH2O2 interfaces for external vaporized hydrogen peroxide generators or optional built-in integrated VH2O2 systems.

    Can monitor pressure differentials, temperature, humidity, and ammonia concentration within the chamber environment.

    Built-in lighting system for convenient operation and daily use.

    Specifications

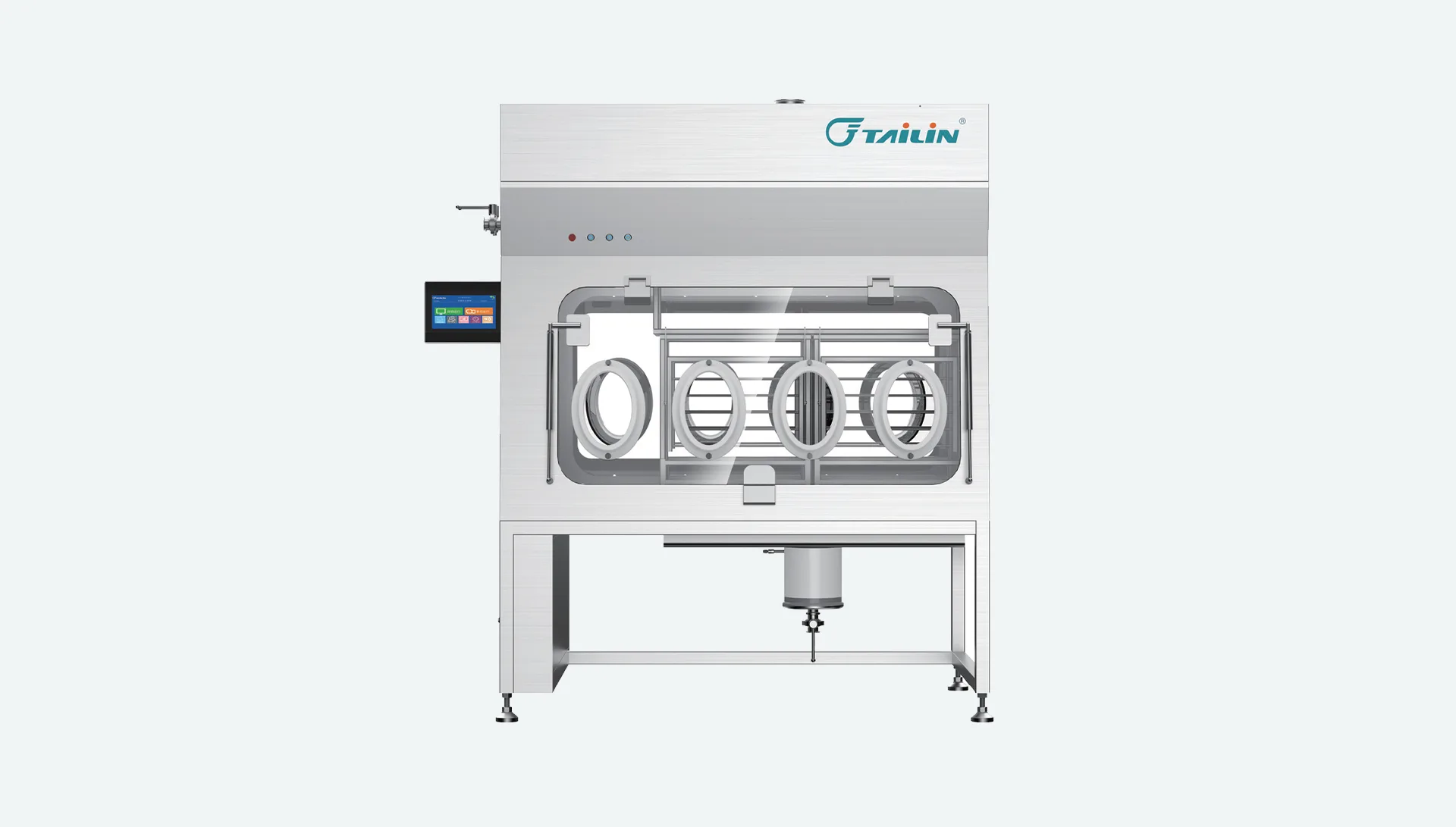

    Model: LH6-1D-G4Model: LH6-1D-G8
    Function: HysterectomyFunction: Germ-free rearing
    Overall Dimensions: L1700×W800×H1950mmOverall Dimensions: L1700×W1220×H2150mm
    Chamber Dimensions: L1200×W800×H700mmChamber Dimensions: L1600×W1200×H920mm
    Operation Method: Double-sided operation, equipped with 2 sets of integrated sleeves on each operating faceOperation Method: Double-sided operation, equipped with 4 sets of integrated sleeves on each operating face
    Transfer Channel: Sterile transfer port, docks with sterile transfer trolley via dunk tank; mechanical sealing for chamber interior and exteriorTransfer Channel: Sterile transfer port, docks with sterile transfer trolley for waste transfer channel; isolates and transfers out waste
    Sealed Door: Tempered glass viewing window, active inflatable sealingSealed Door: Tempered glass viewing window, active inflatable sealing
    Pressure Control: Adjustable from (-150) to 150 Pa; differential pressure between the interior and exterior of the chamber ≥ 50 PaPressure Control: Adjustable from (-150) to 150 Pa; differential pressure between the interior and exterior of the chamber ≥ 50 Pa
    Airflow Control: Air changes ≥ 20 times/hAirflow Control: Air changes ≥ 20 times/h
    Caging: /Caging: Built-in pig cage

    Applications
