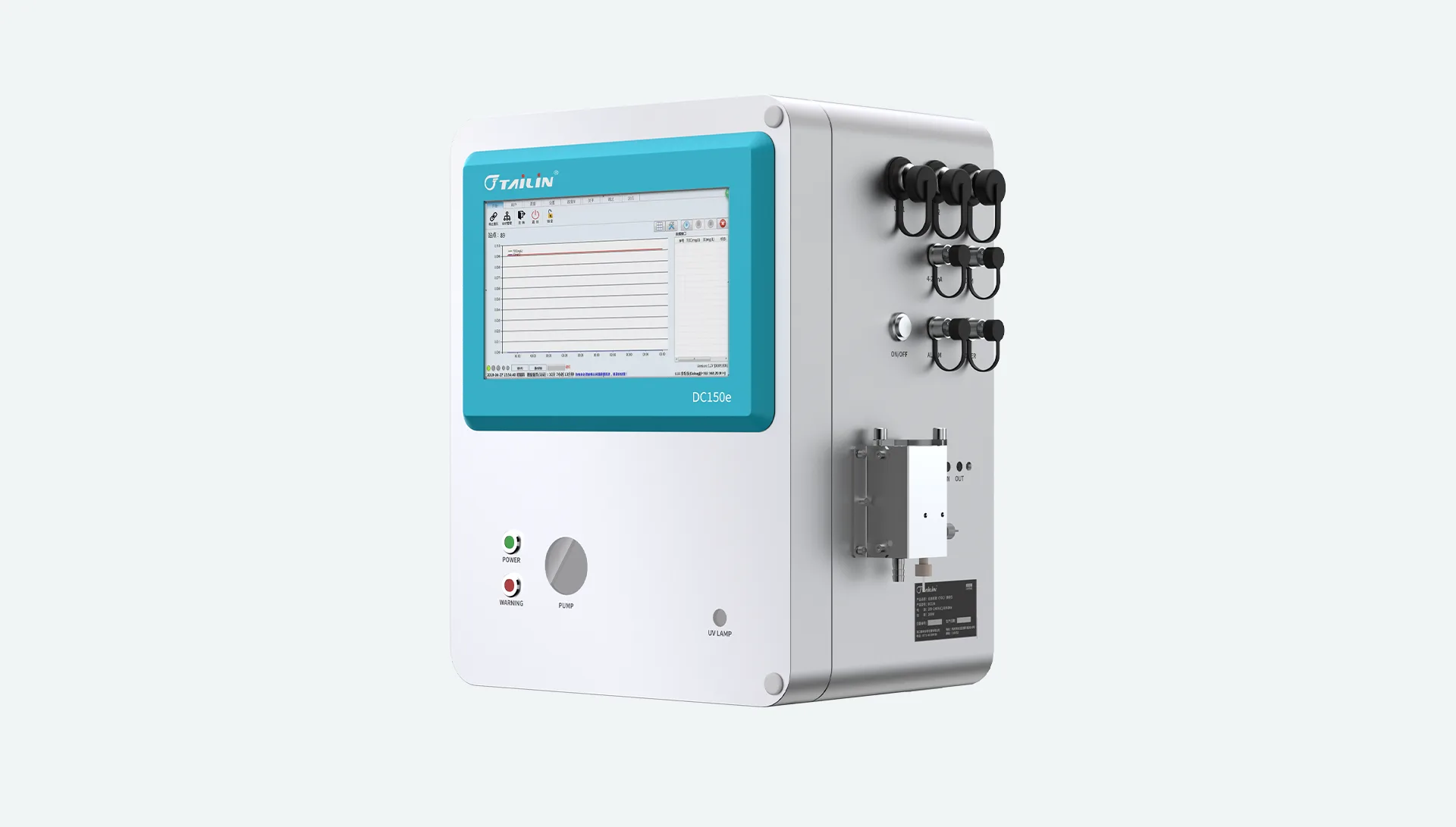

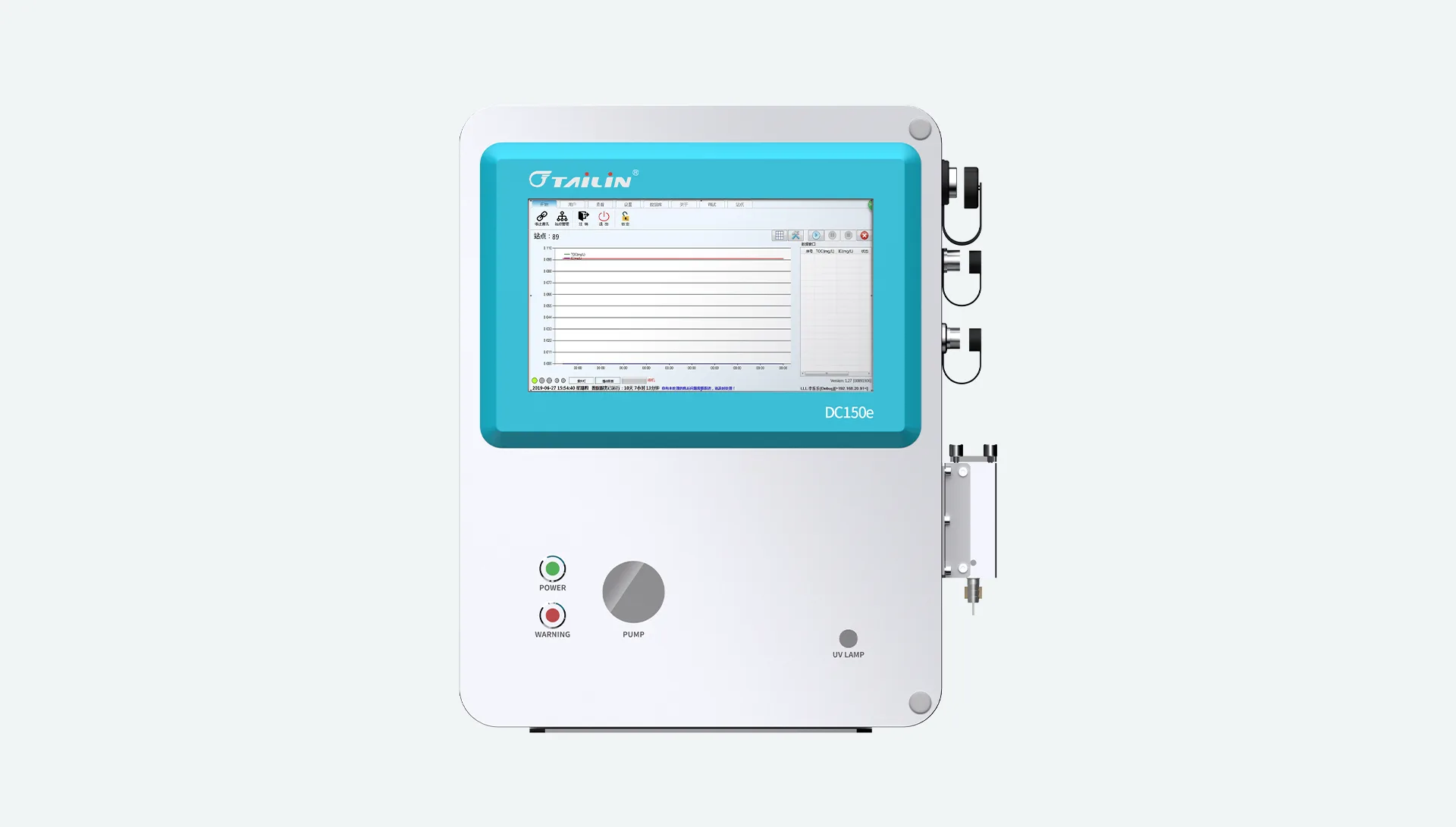

The DC150 Total Organic Carbon (TOC) analyzer employs efficient ultraviolet oxidation technology, which can completely oxidize small-molecule organic compounds. It is also equipped with a high-precision conductivity detector, ensuring accurate and repeatable measurements. It can detect minute changes in TOC concentration in samples in real time, meeting the requirements for detecting samples with ultra-low TOC concentrations.
| TOC Detection Range: (1.0-1500.0)μg/L | Indication Error: TC ±5% (JJG821-2005) |
| Testing Time: 3 min | Repeatability: ≤2% (JB/T20178-2017) |
| Sample Temperature: (1-95) ℃ | Linearity: R² ≥ 99.5% |
| Rated Power: 100W | Power Supply: (100-240) VAC 50/60Hz |
| Detection Method: Online detection | Ambient Temperature & Humidity: (10-60)℃, ≤100%RH, non-condensing |
| Dimensions: 400mm × 280mm × 345mm | Weight: 30kg |
Applicable in the semiconductor industry for testing process water, in the pharmaceutical industry for testing purified water and water for injection.
