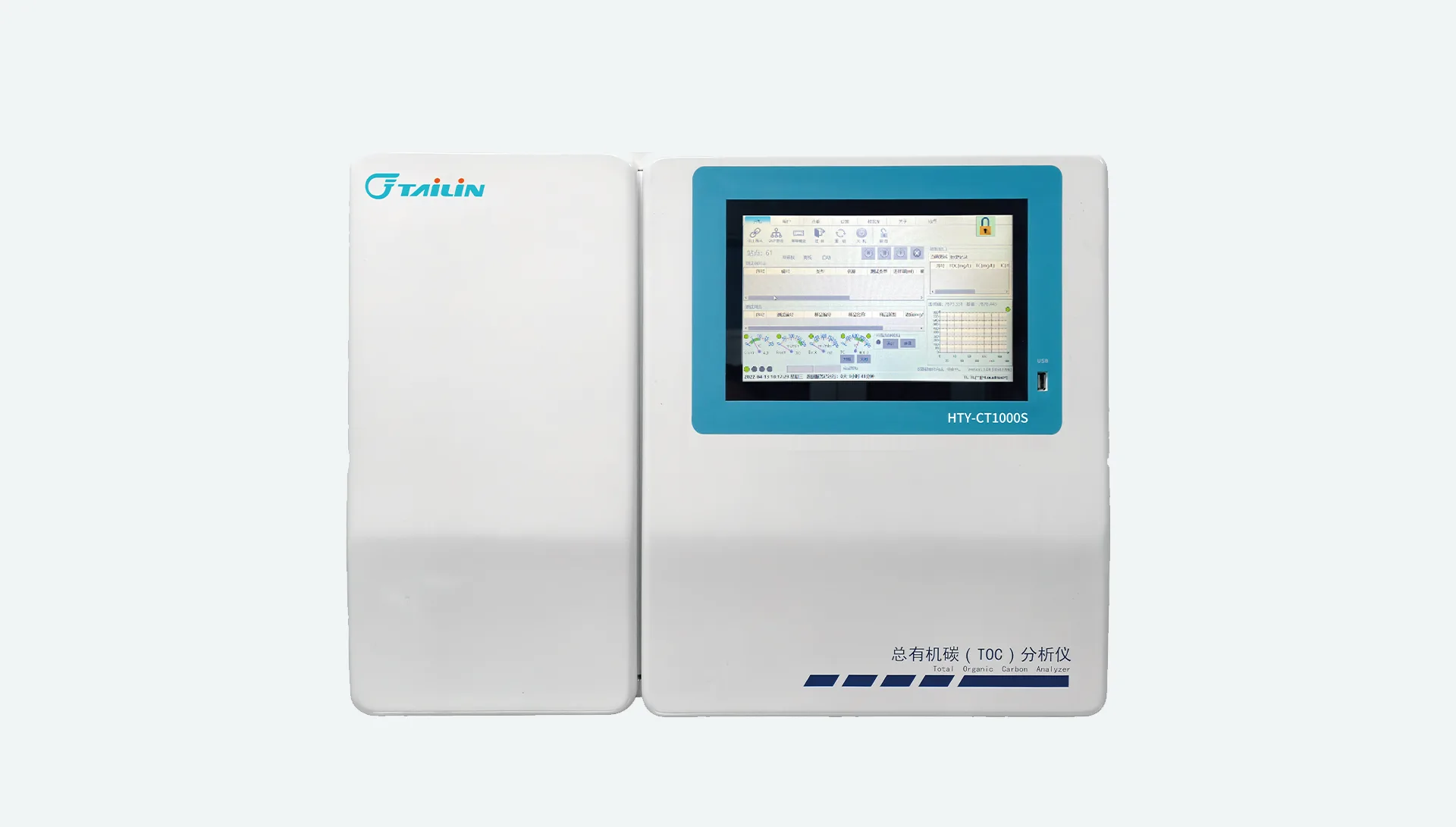

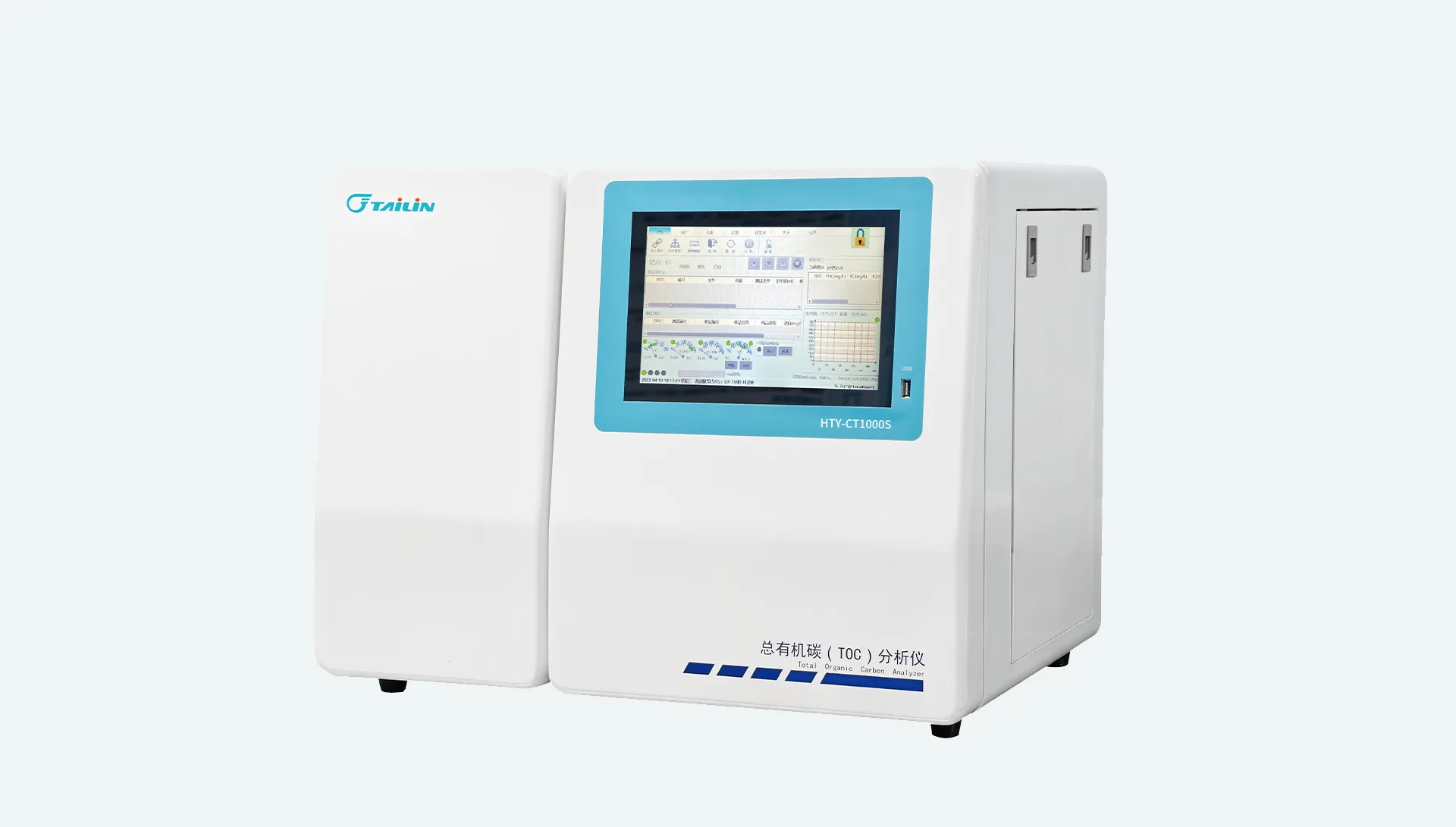

HTY-CT1000S
Tailin TOC Analyzer HTY-CT1000S uses high-temperature combustion oxidation technology and adds a full touchscreen operation function to the original server software control. A high-performance industrial control computer is directly installed inside the instrument, making the operation mode more flexible and versatile, and making monitoring easier and more efficient. It can be used to determine total organic carbon directly without external computer control.
| Detection Range:(0-30000.0)mg/L(Diluted state) | Test Items:TC/IC/TOC/NPOC |
| Ambient Temperature:(5-40)℃, (5-90)%RH, non-condensing | Resolution:0.001mg/L |
| Relative Humidity:(1-85)%RH | Repeatability Standard Deviation(RSD):≤3% |
| Detection Method:Non-dispersive infrared absorption method(NDIR) | TC Indication Error:±0.1%FS or±5%(Whichever is bigger) |
| Combustion Furnace Temperature Room temperature~1000℃(limit 1200℃) | IC Indication Error:±0.1%FS or±4%(Whichever is bigger) |
| Testing Time:3min | Linear.R²≥99.9% |
| Dimensions:62x49x49cm | Injection Volume Liquid(0.1-1)mL,Solid 10mg-1g |
| Optional Solid Device: SSE-10000 solid combustion device | Weight:55kg |
TOC test for electrolyte
TC test for hydrogen peroxide
TOC test for electroplating solution
TOC test for soil (often combined with solid combustion transfer)
Environmental sewage test
