Home > TOC Analyzer > TOC Analyzer

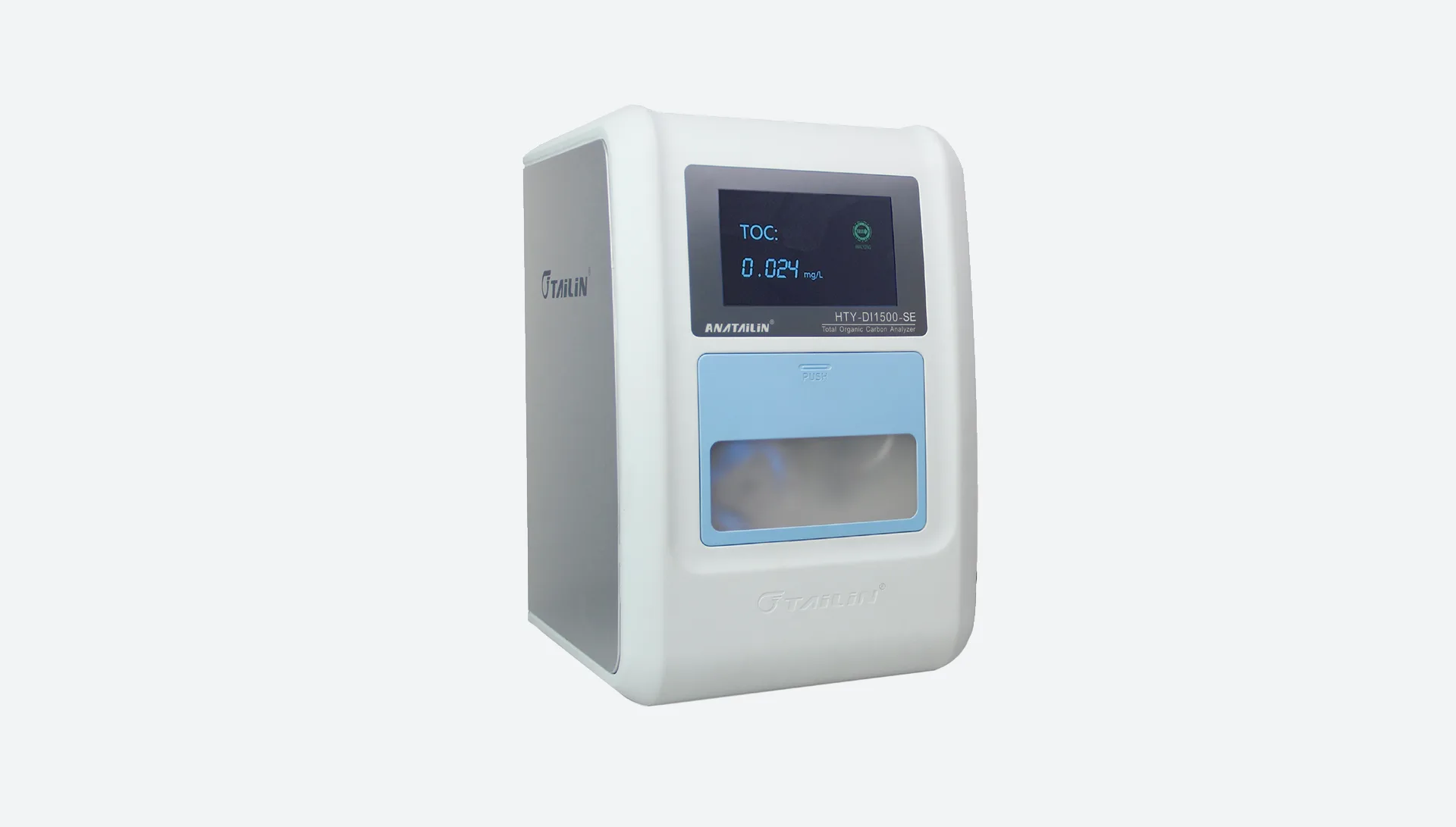

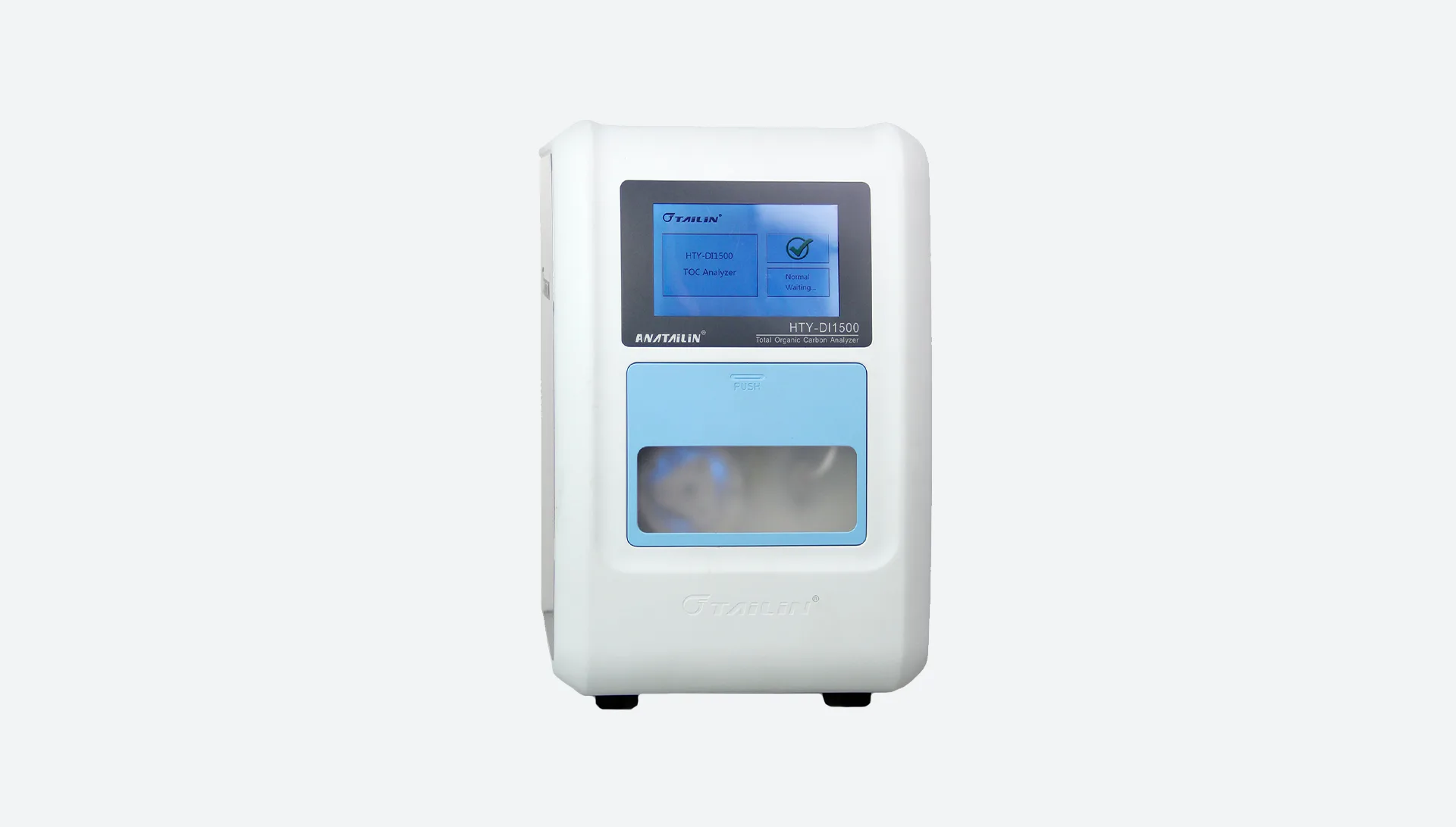

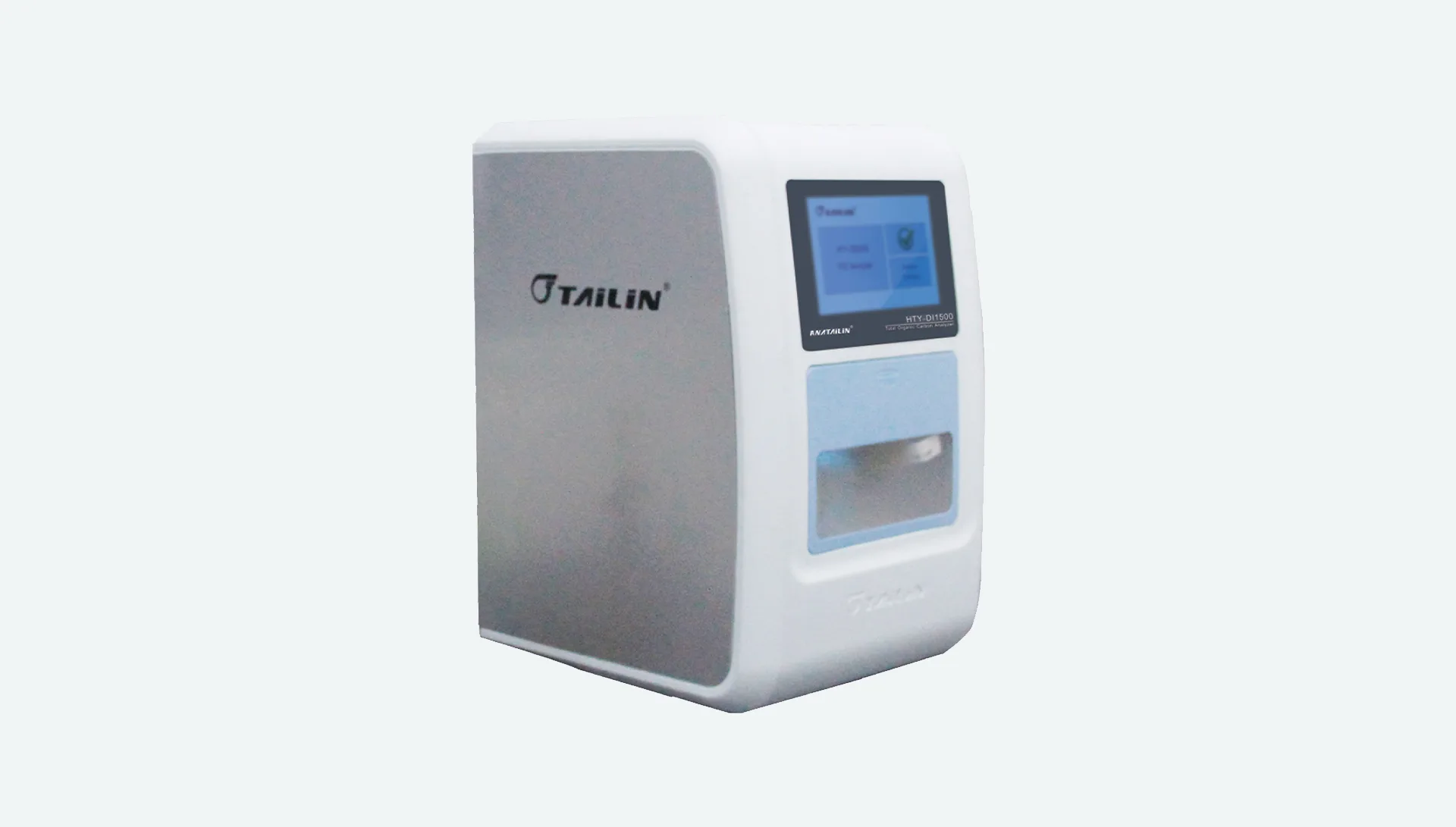

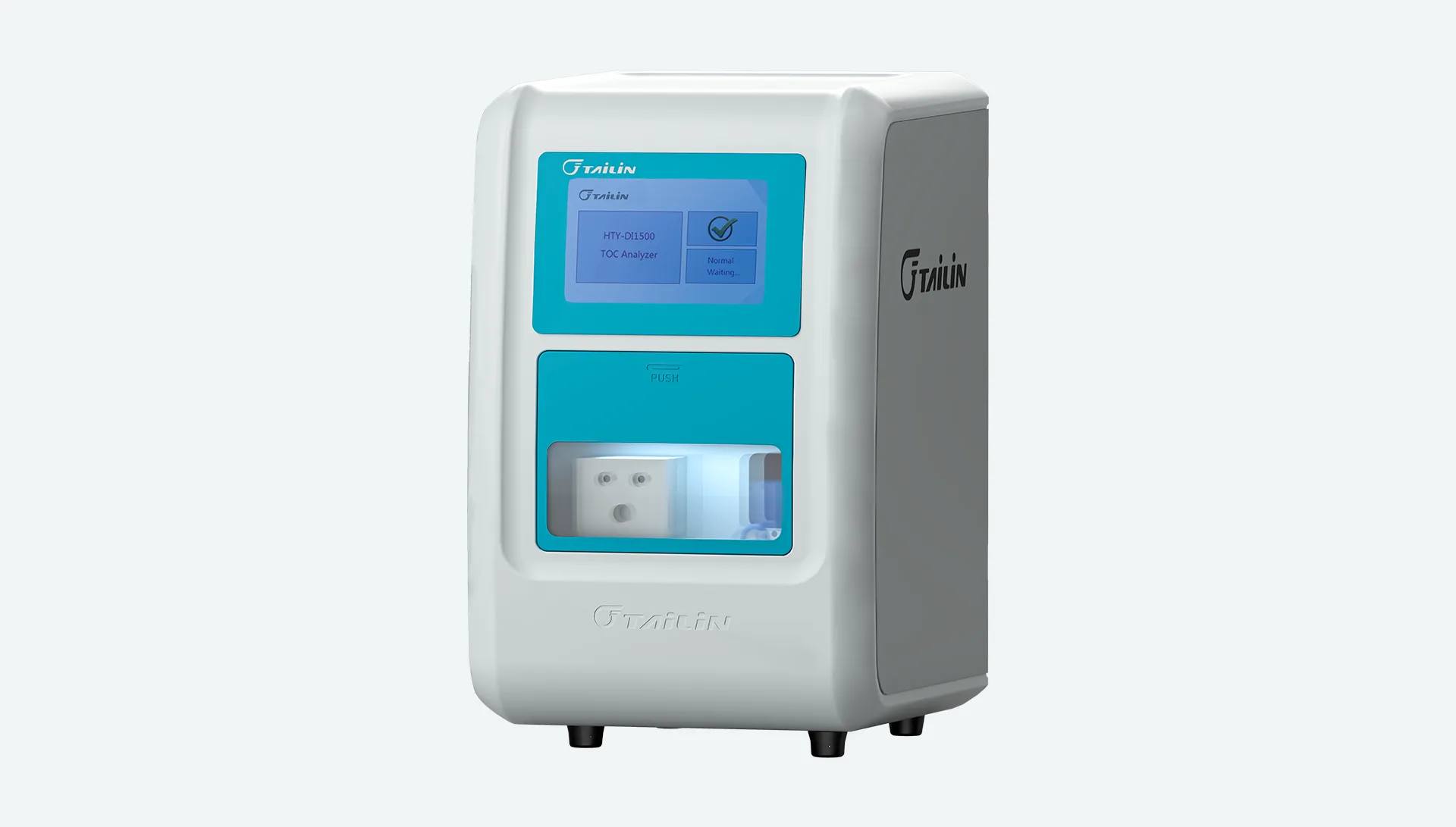

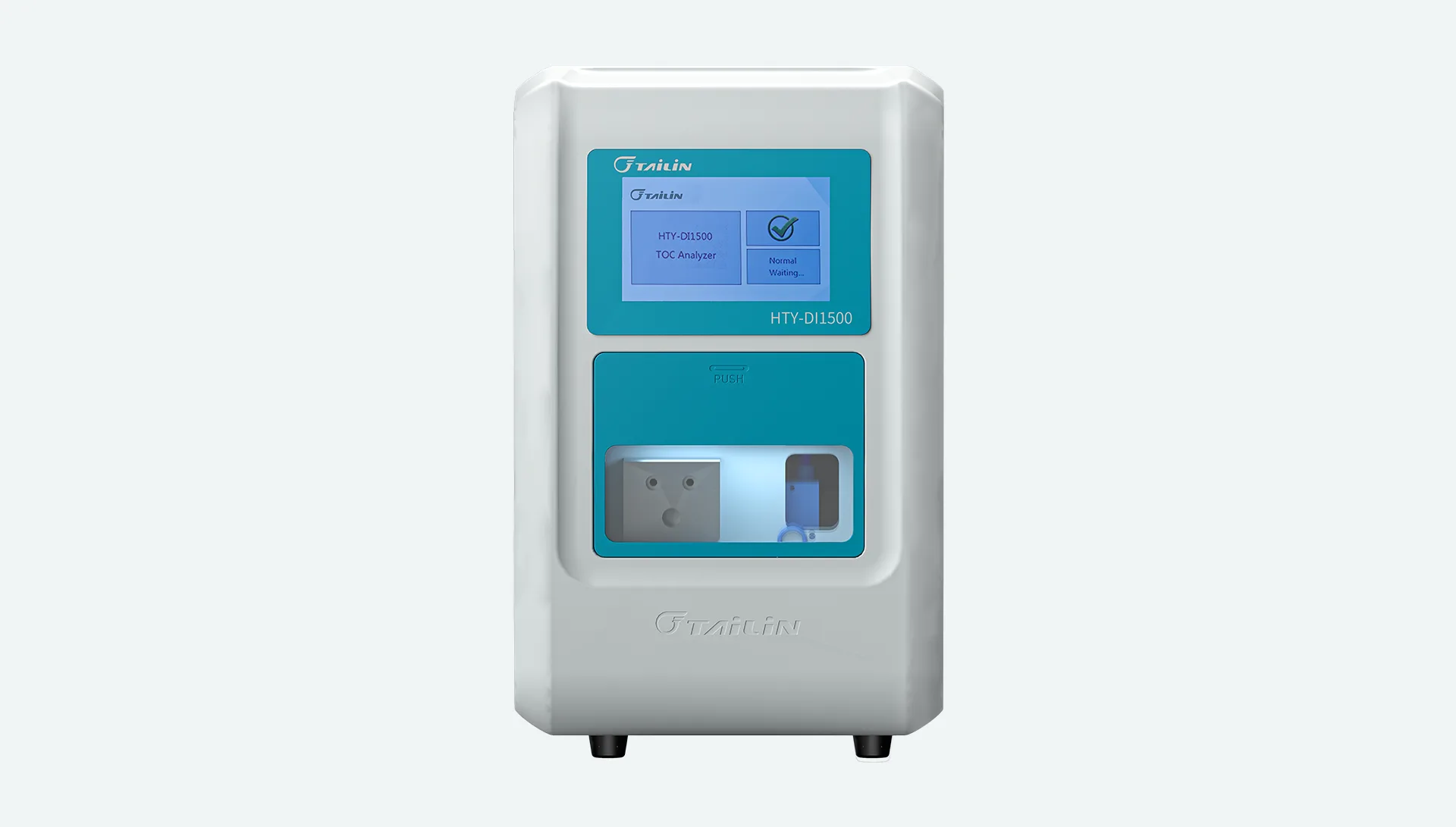

HTY-DI1500
A total organic carbon (TOC) analyzer is a type of analytical instrument designed to quantify the total organic carbon present in water. This tool is essential for ensuring the quality of public drinking water, overseeing and assessing pharmaceutical manufacturing processes, and serves numerous other purposes. Tailin Online TOC analyzers make it suitable for a variety of applications for the environmental and pharmaceutical industries.
| Detection Range: (1.0-1500.0)μg/L | Recommended Range of Water Sample Conductivity: (0-5.1)μS/cm @25℃ |
| Rated Power: 100W | Ambient Temperature: 10℃- 40℃, (5-90)%RH, non-condensing |
| Test Time: 3 min | Response Time: within 6 min |
| Indication Accuracy: ±5% | Repeatability Standard Deviation (RSD): ≤ 2% |
| Dimension: 23x25x35cm | Sample Temperature: (1-95)℃ |
| Weight: 8kg | Calibration Period: 12 months |
| Power Supply: (100-240) VAC, 50/60Hz |
It can be used to test purified water, water for injection, and cleaning validation (TOC Method) in the pharmaceutical industry; various types of sewage, tap water, and groundwater in the environmental protection and municipal industries.
There are two models:
DI1500: For offline, lab-based sample analysis.
DI1500-OL: For online, continuous real-time monitoring within a water system.

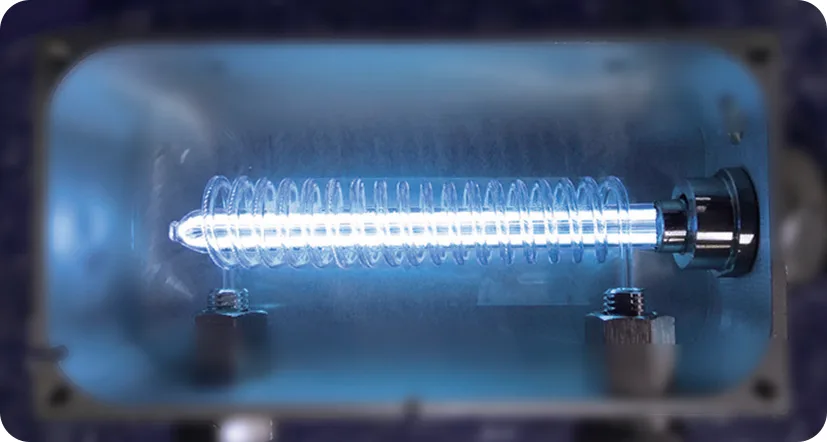

It uses Dual-Wavelength UV Oxidation to break down organics, followed by Direct Conductivity Detection to accurately measure the resulting carbon dioxide and calculate the TOC value.
The analyzer is designed to fully comply with GMP and 21 CFR Part 11 requirements. It features four-level password protection, a comprehensive audit trail, and robust data backup options.
Yes. It offers multiple signal outputs (analog and digital) for integration with water systems. Its multi-channel transmitter can also send data for TOC, conductivity, pH, temperature, and dissolved oxygen to systems like MES.
Yes. Its disassembly-free design simplifies operation and routine maintenance, minimizing downtime and effort.
