MD500

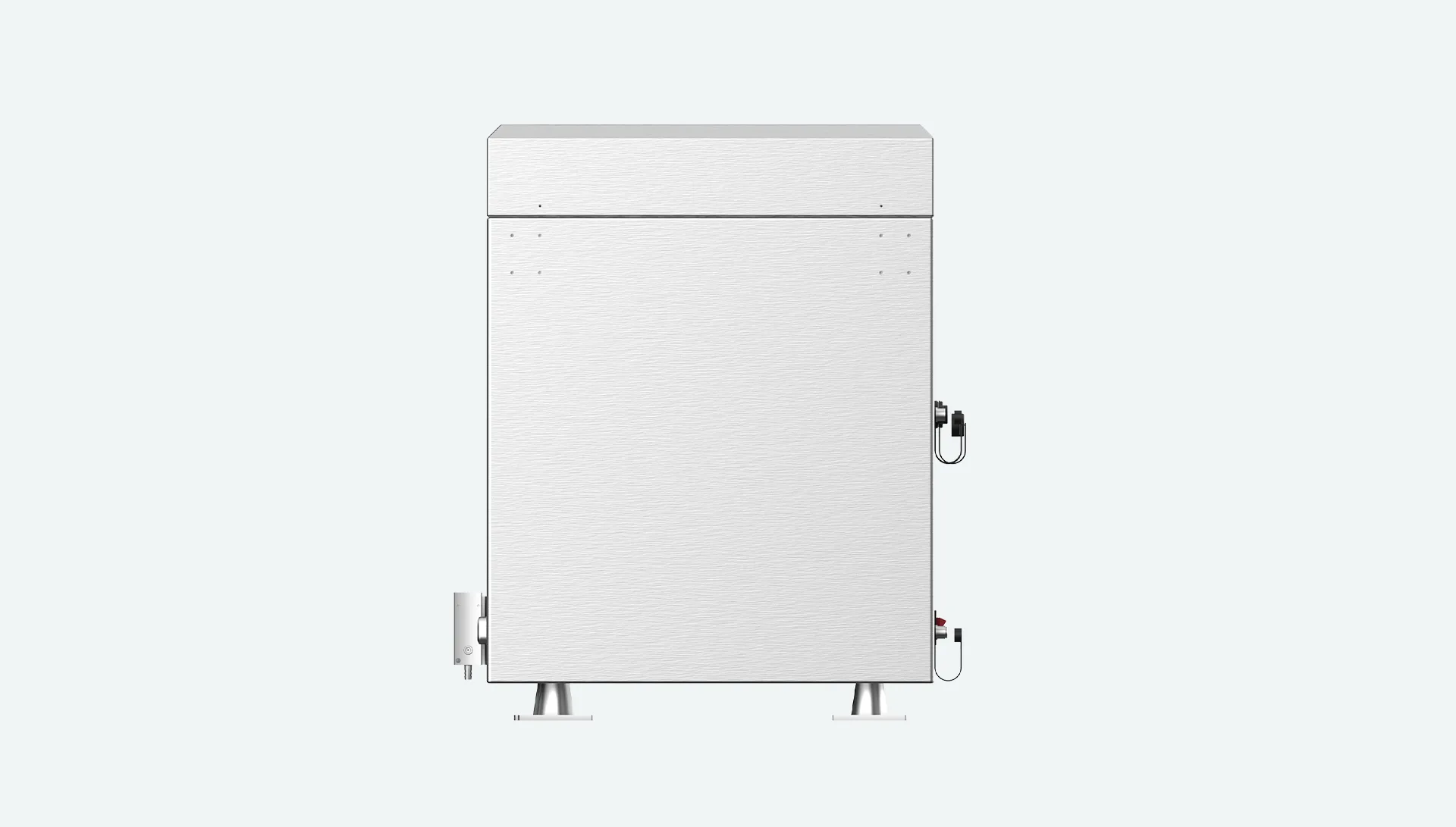

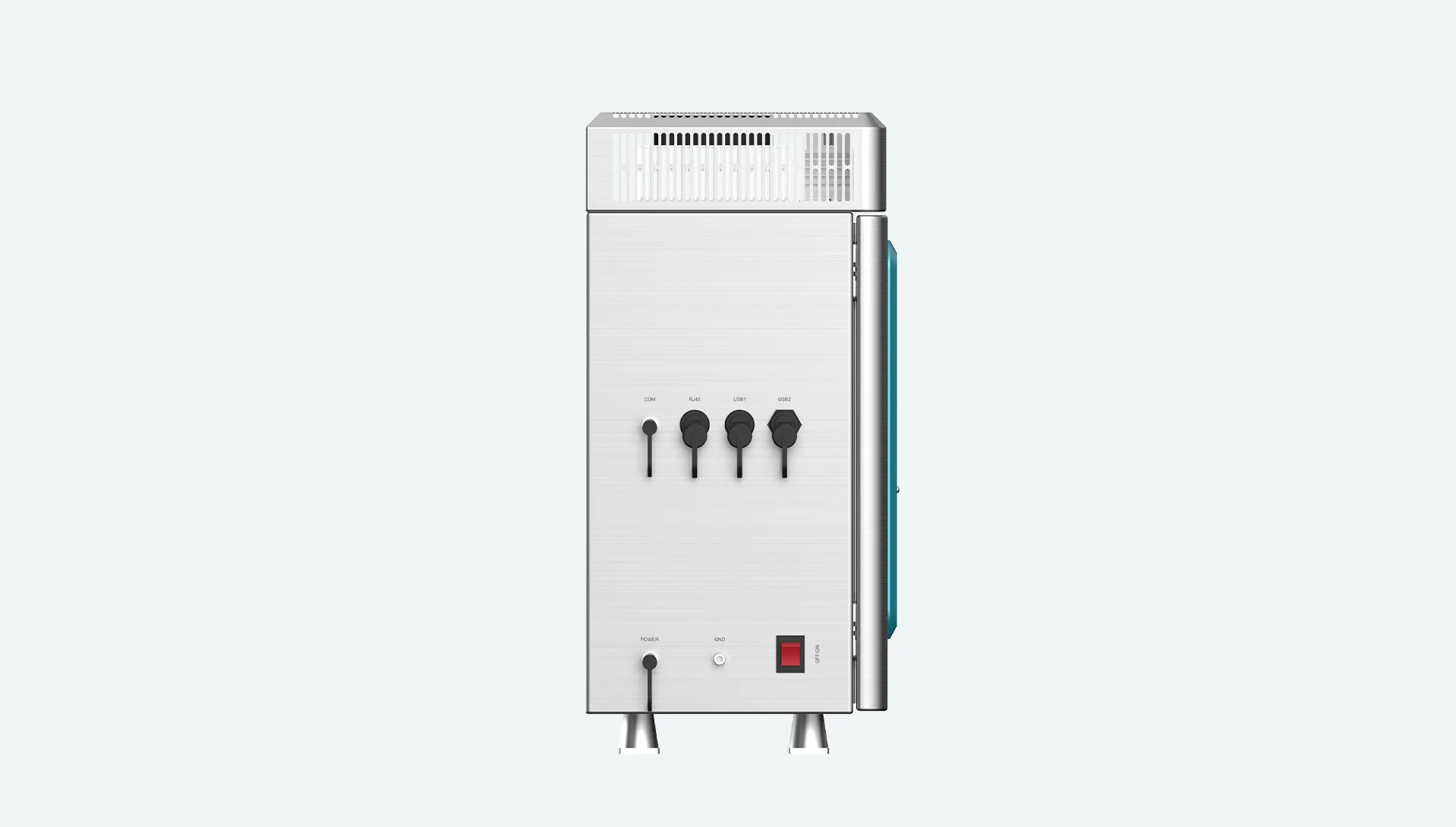

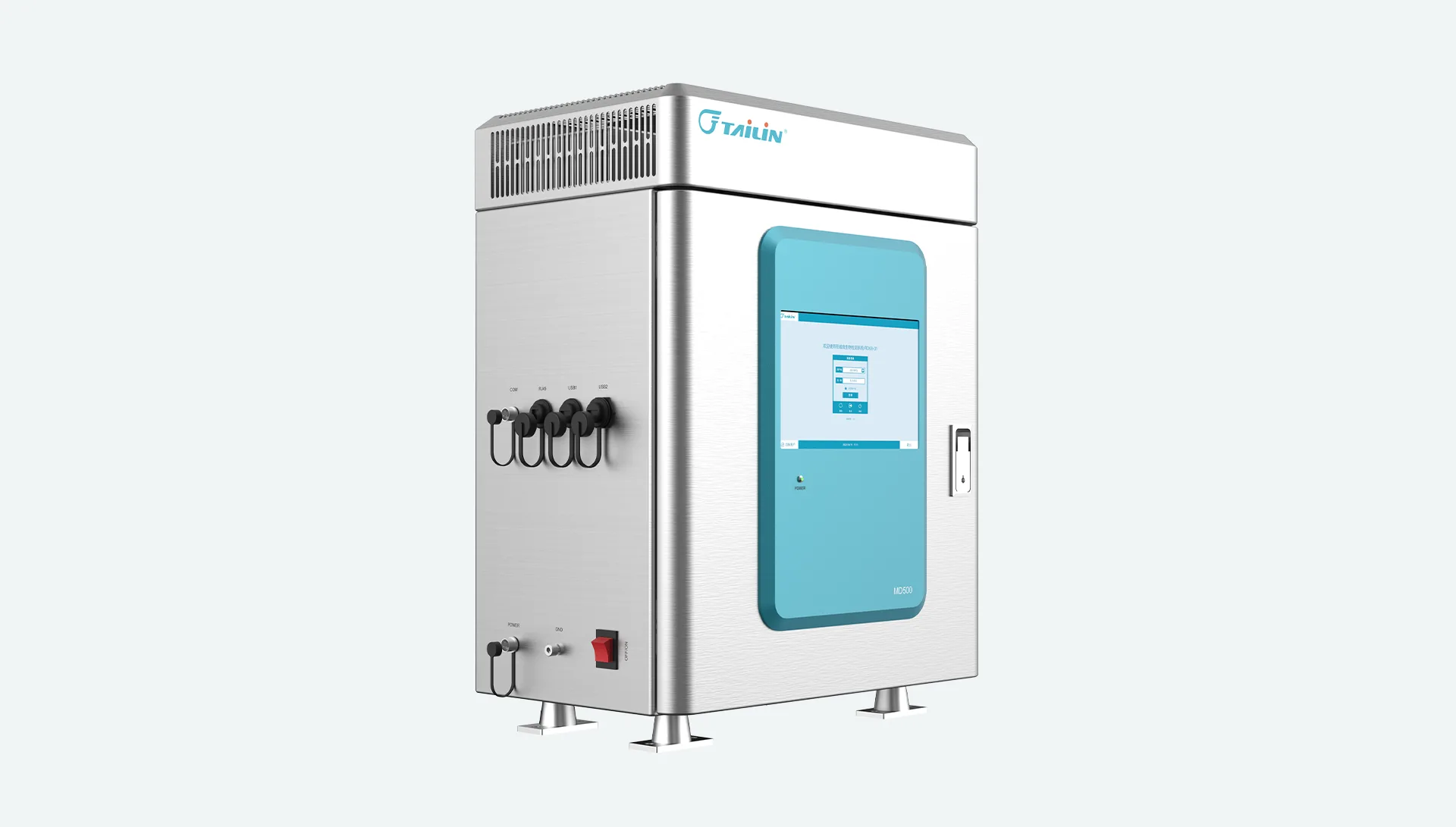

Tailin Rapid Microbial Detection Analyzer – MD500 Online Model combines two measurement technologies: laser-induced fluorescence and Mie scattering. It utilizes a 405-nanometer laser light source, ensuring optimal microbial fluorescence excitation while minimizing laser damage to microorganisms in the sample. It also achieves a particle detection limit of 0.1 micron.
| Measurement Range:0-10,000 AFU/mL | Minimum Detection Size:0.1μm |
| Detection Limit:1 AFU | Response Time:Real-time |
| Flow Rate:(1.5-30)mL/min | Sample Temperature:(5-90)℃ |
| Sample Outlet Connection:1/8”(3.2mm)OD | Types: Purified Water(PW),Ultrapure Water(UPW),Water for Injection (WIFI) |
| Inlet Connection Outer Diameter:1/8”(3.2mm)OD | Ambient Temperature:(0-50℃/80%RH |
| Analysis Time:Continuous operation | Weight:35 Kg |
| Dimension:50cm×32cm x60cm | Power Supply:(100-240)VAC,50/60 Hz,5A;use the power cord provided with the instrument |
| Data Transmission:4-20mA standard,configurable output range,Analog output channels,Ethernet-supports standard RJ 45/Wi-Fi,SCADA connectivity via Modbus TCP;USB |
It is used to monitor microbial content trends in purified water, water for injection, and ultrapure water in the pharmaceutical industry, and to strictly control microbial concentration in water samples for semiconductors, food, research institutions, pharmaceuticals, chemicals, etc.
It replaces time-consuming culture-based methods with continuous, real-time monitoring – reducing detection time from 5-7 days to just hours while eliminating manual sampling errors.
The MD500 has a measurement range of (0-10,000) AFU/mL and a detection limit of 1 AFU, providing precise and sensitive microbial detection capabilities.
Traditional culture takes 24-72 hours, while MD500 enables real-time or minute-level detection, accelerating the production process. It can continuously monitor your entire water loop, providing immediate detection of microbial excursions. This enables rapid intervention, minimizes process downtime, and significantly enhances your overall control and operational efficiency.
Yes, the MD500 possesses advanced detection capabilities to identify and quantify bacteria in the VBNC state, providing a more comprehensive microbial analysis.
