Offline Microbial Detection Analyzer

Rapid bioburden analyzer uses advanced with laser-induced fluorescence and Mie scattering technology

Introduction

Features

Specifications

Applications

Inquiry

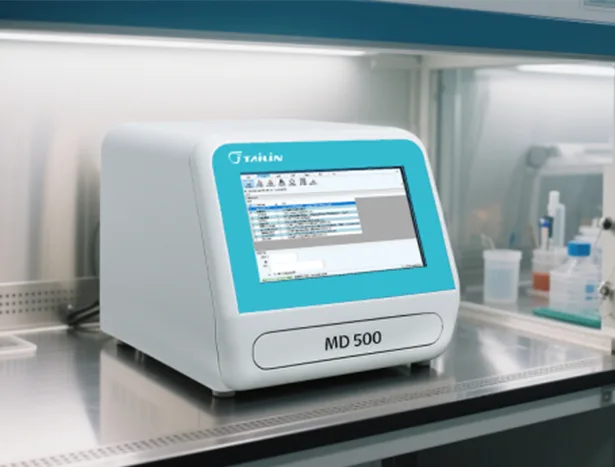

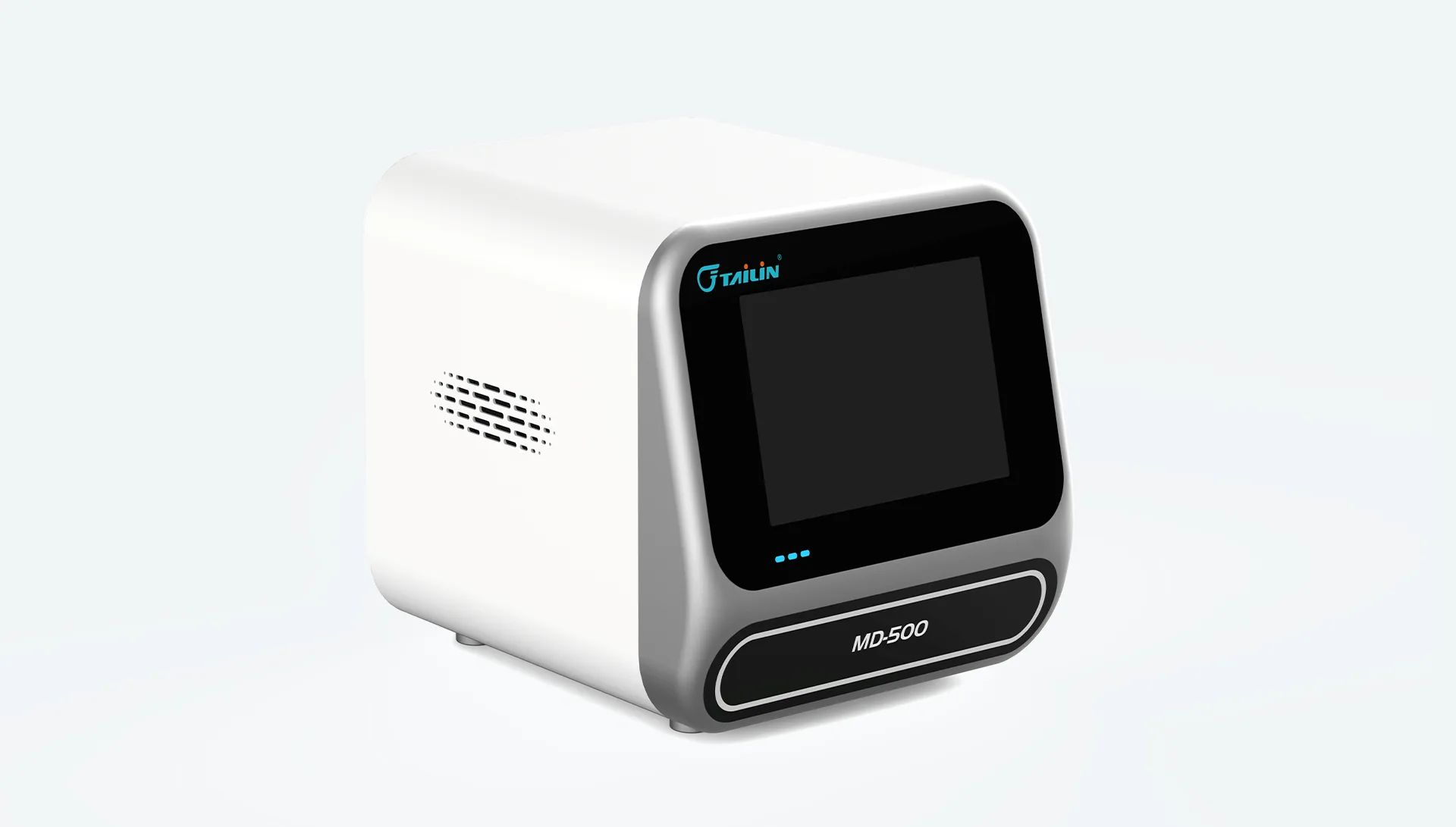

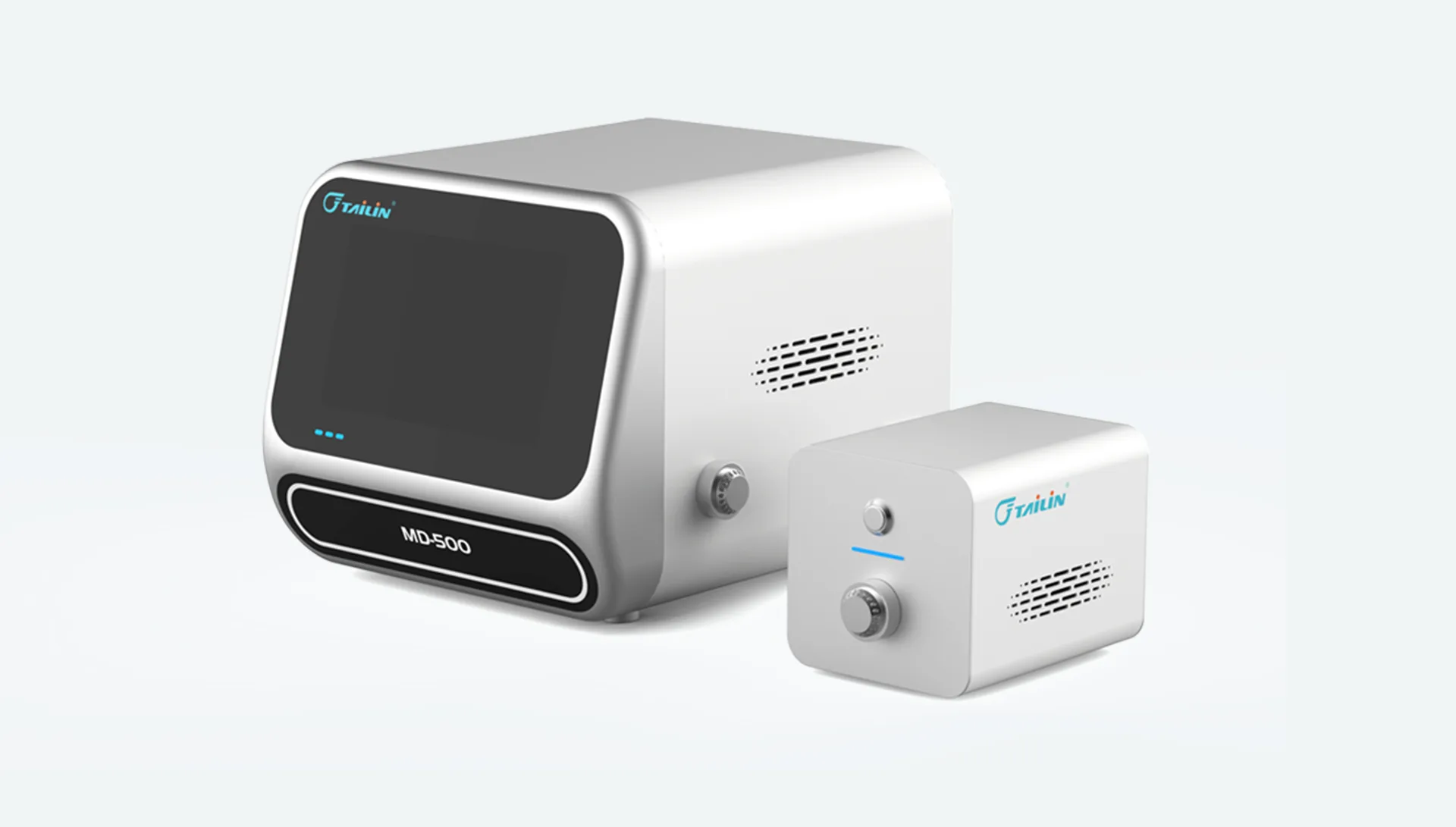

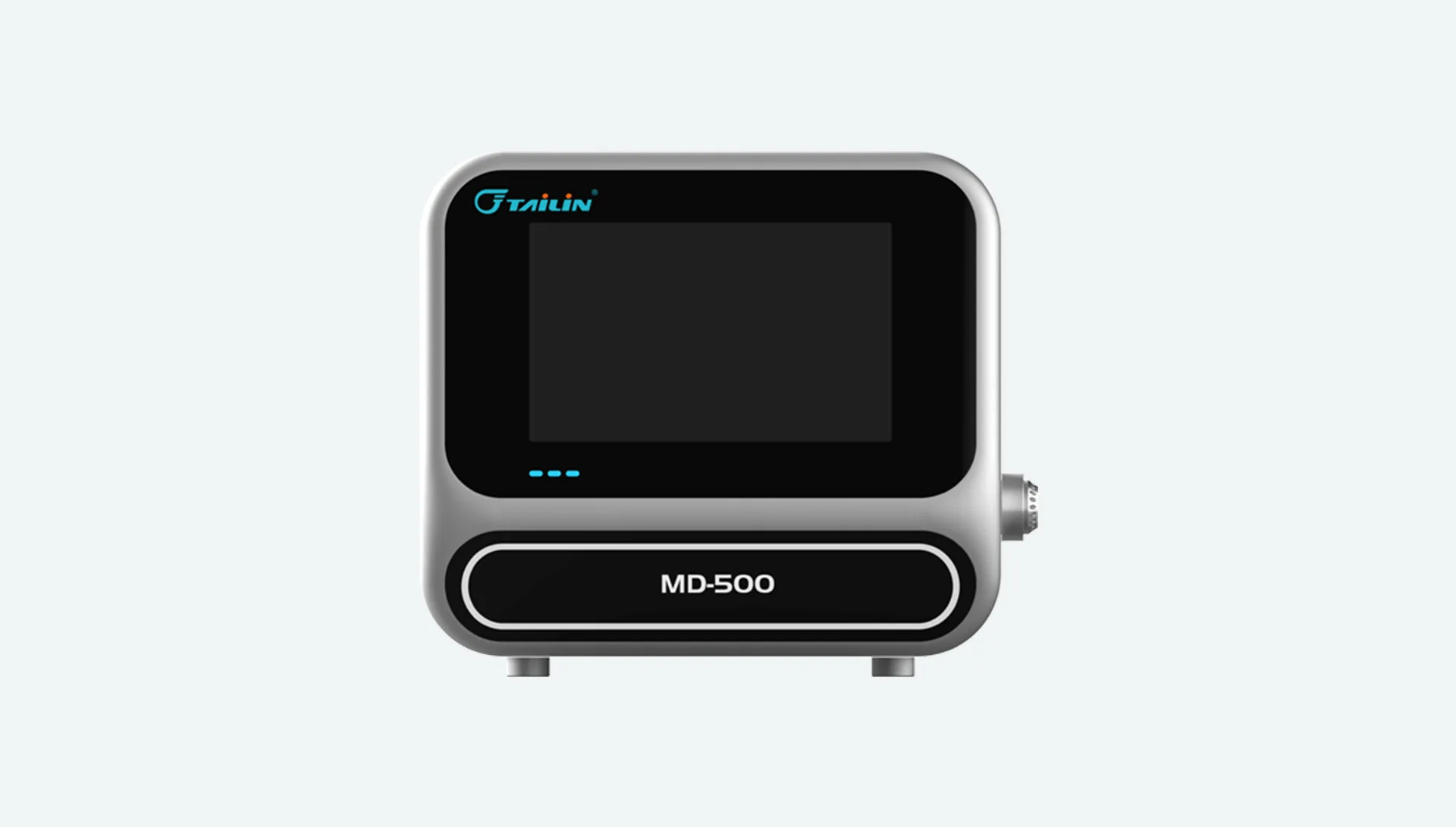

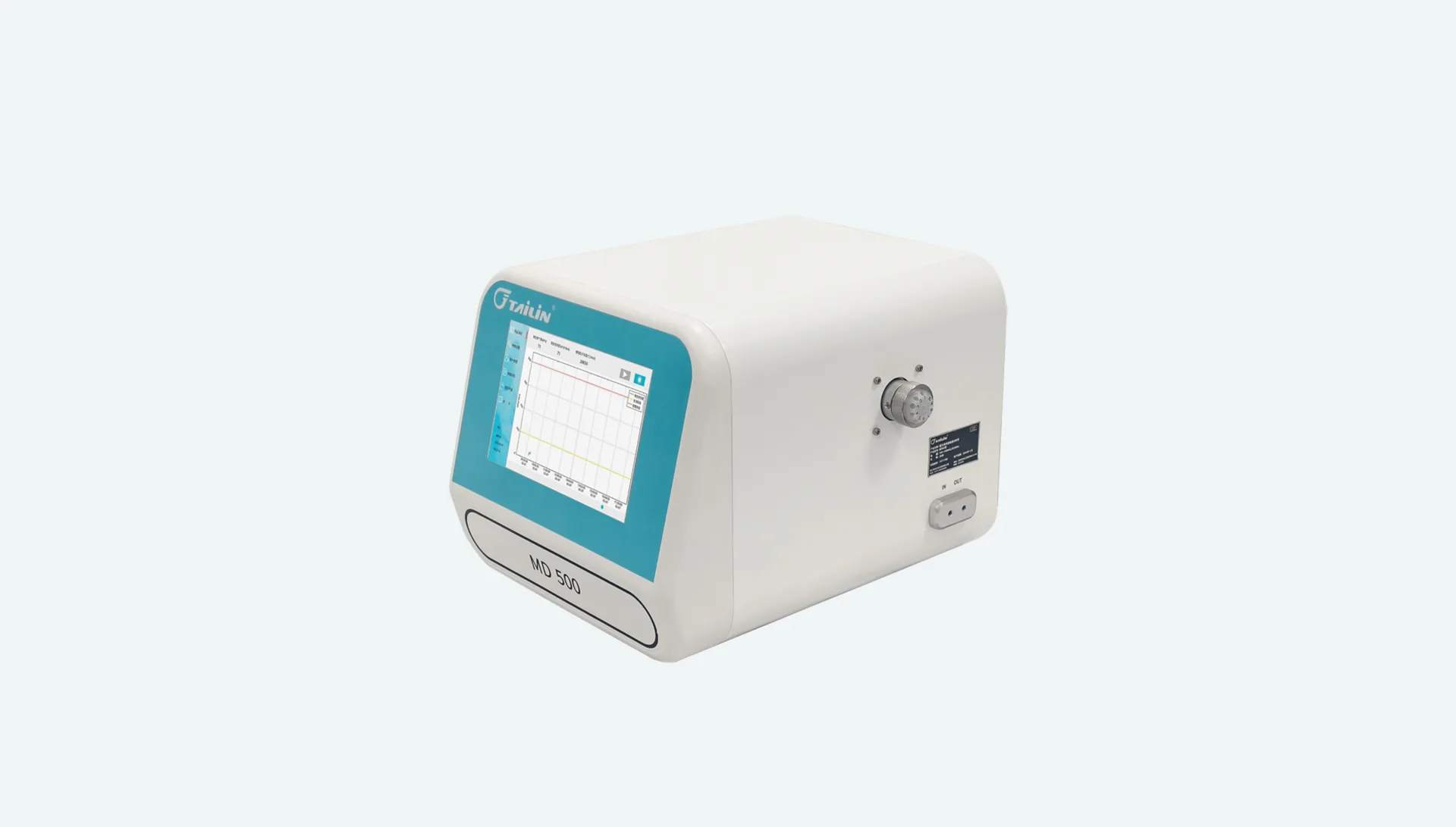

Tailin Rapid Microbial Detection Analyzer – MD500 Offline Model combines two mature measurement technologies, namely microbial laser-induced fluorescence and particle Mie scattering technology, to count individual microorganisms in relatively pure water bodies in all microbial control scenarios. It can continuously monitor bioburden contamination without waiting for plate count results.

Real-time monitoring

Multi-scenario application

Detect up to 10 samples, with the capability to expand to 100 samples

Features

Comprehensive Microbial Species Detection: Measures range from 0 to 10,000 AFU/mL, making it suitable for monitoring all relatively pure water bodies for microbial presence.
Versatile Application Scenarios: Capable of detecting microbial levels in various types of relatively pure water, including injection water, purified water, rinsing water, product solutions, and natural drinking water.
Multiple Data Output Formats: Offers multiple signal output options, including analog and digital signals.

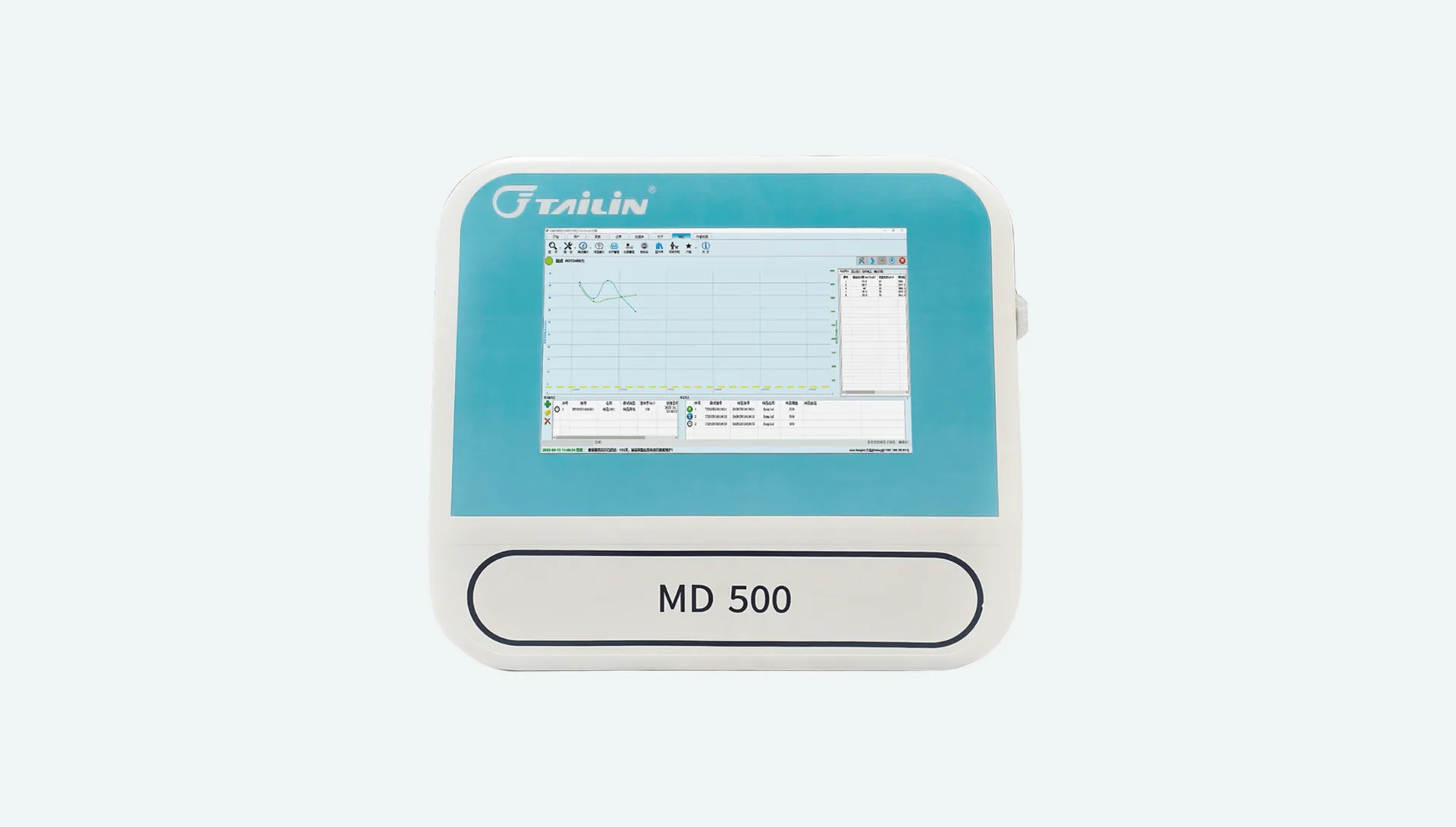

Reagent-Free Operation: Features a full touchscreen interface for easy use, eliminating the need for sample or reagent preparation during testing.
Built-In Multiple Methods: The system features a one-key flushing option and can continuously detect up to 10 samples, expandable to 100.
Data Integrity: The system fully complies with GMP and Part 11 requirements for electronic data integrity. It includes four levels of password permissions, an audit trail function, and multiple backup options.

Specifications

Measurement Range:0-10,000 AFU/mL	Minimum Detection Size:0.1 μm
Detection Limit:1 AFU	Response Time:Real-time
Analysis Time:Continuous operation	Sample Temperature:(5-90)℃
Flow Rate:(1.5-30)mL/min	Ambient Temperature:(0-50℃/80%RH
Channels:Comes with 1-10 channels,expandable to 100 channels	Power Supply:(100-240)VAC,50/60Hz
Inlet Connection Outer Diameter.1/8”(3.2mm)OD	Weight:10Kg

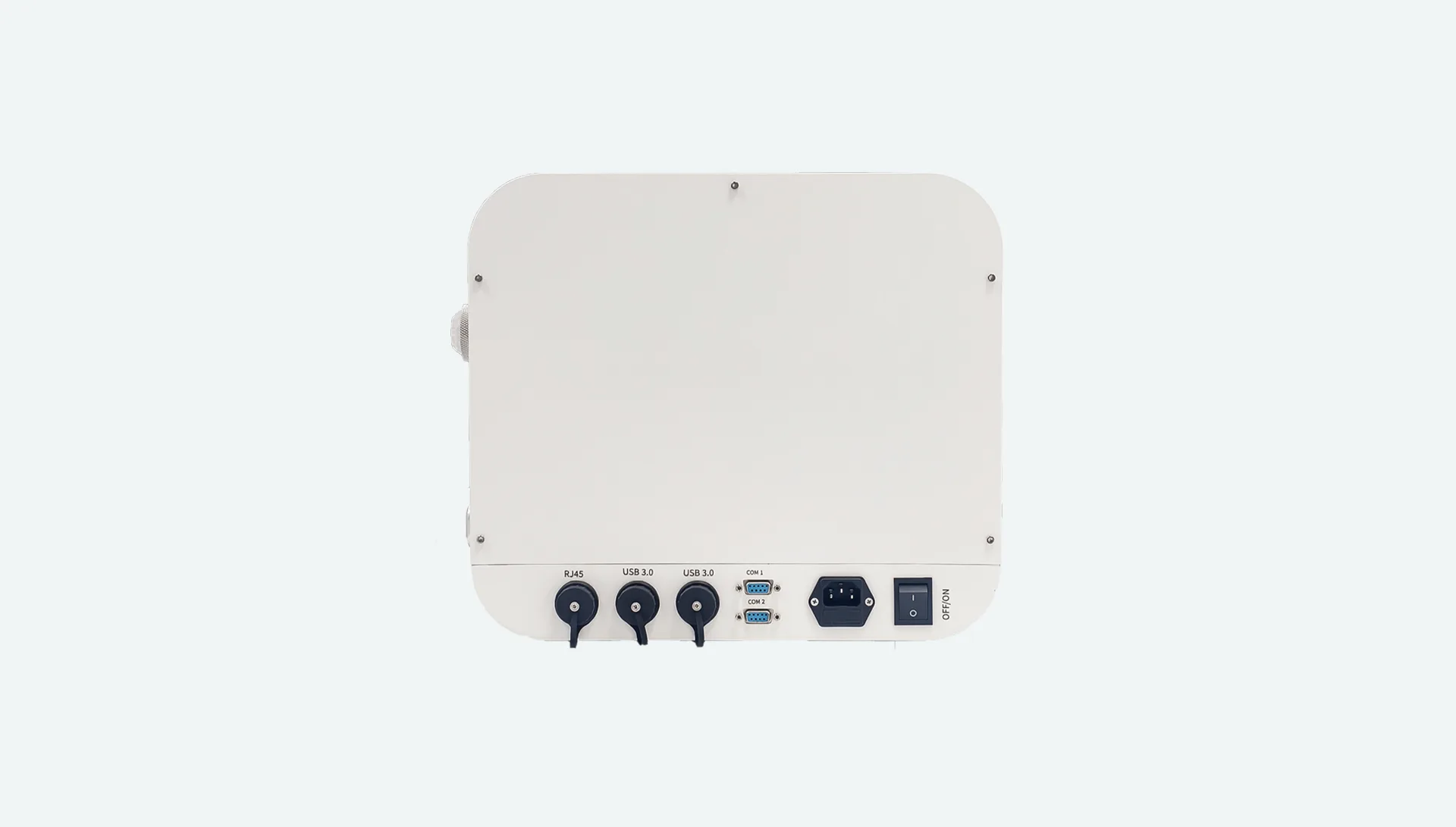

Applicable Object:All relatively pure water bodies under scenarios of microbial control	Data Transmission:4-20mA standard,configurable output range,Analog output channels,Ethernet-supports standard RJ 45/Wi-Fi,SCADA connectivity via Modbus TCP;USB

Applications

Meets the requirements for purified water, injection water, ultra-pure water, rinsing water, drinking water, product solutions, and other water types.
