Dry Fogger

Using hydrogen peroxide atomization to achieve highly efficient, broad-spectrum sterilization

Introduction

Features

Specifications

Applications

Inquiry

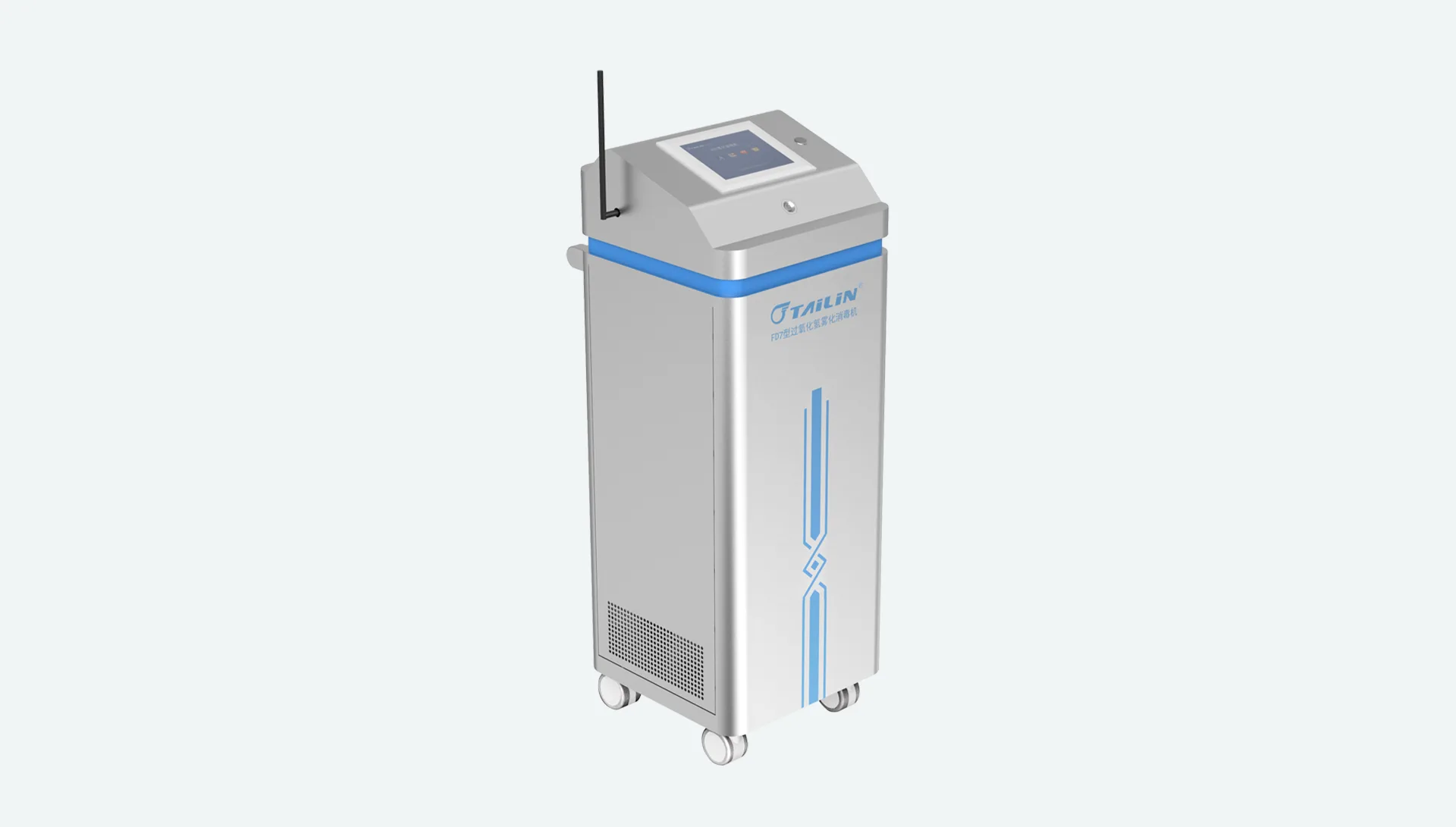

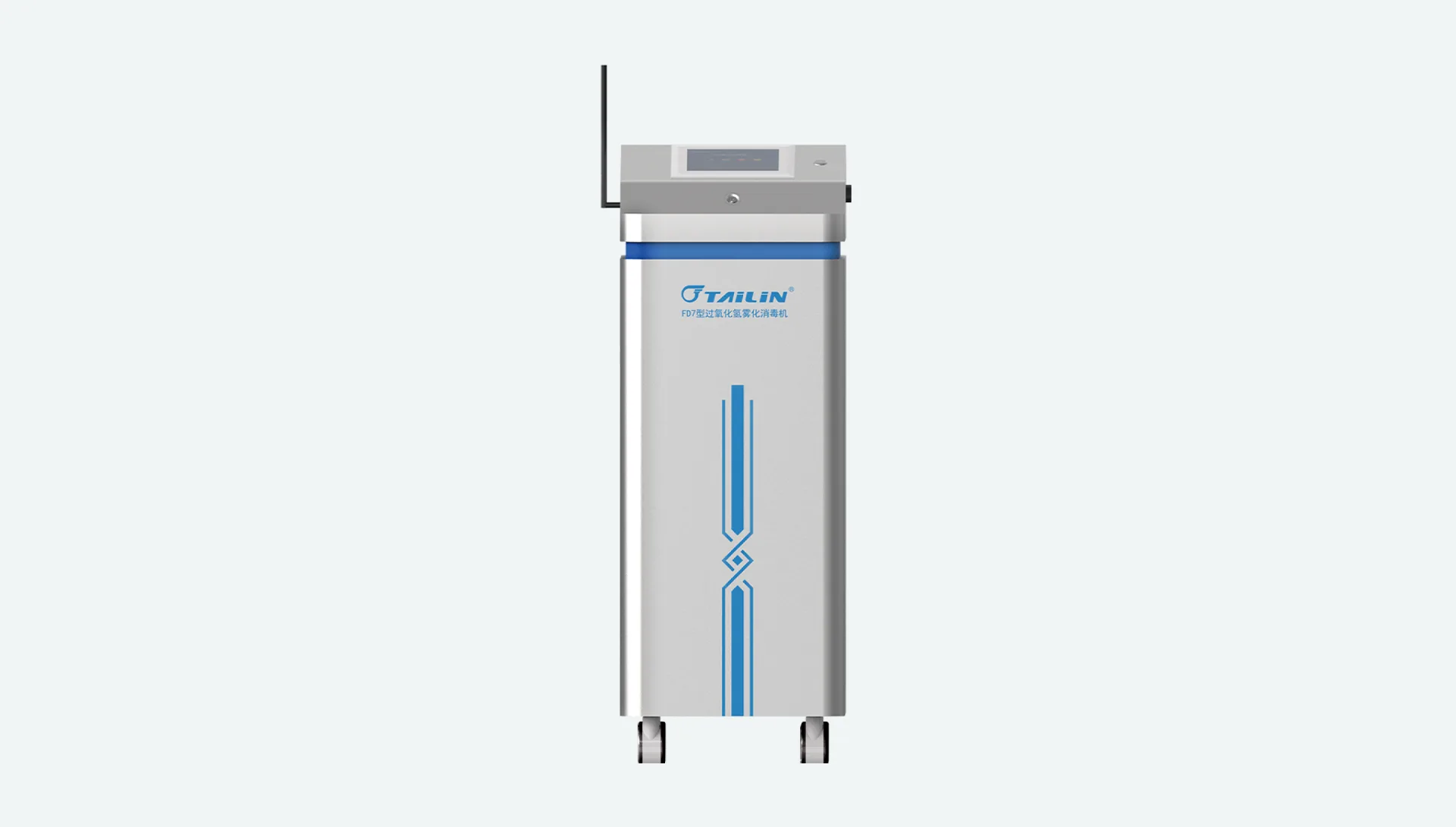

The Dry Fogger FD7 utilizes the Venturi principle for hydrogen peroxide atomization. The hydrogen peroxide disinfectant solution in a dry fog state exhibits strong diffusibility and resistance to settlement, enabling it to rapidly disperse in the environment and act on the air and surfaces of objects within. This effectively eliminates various microorganisms, including bacteria, achieving a broad-spectrum and highly efficient disinfection effect.

Maximum sterilization space of 600 m³, with automatic generation of disinfection parameters based on room volume

The 8-inch industrial computer features disinfection start/stop, parameter setting, and history query functions

It can store multiple disinfection recipes for easy sterilization and features environmental monitoring, voice prompts, audit trail, audio-visual alarms, and automatic power-off

Features

Highly efficient and broad-spectrum sterilization, capable of eliminating bacteria, viruses, fungi, and spores.
Ultra-fine atomized particles with uniform diffusion.
Multiple disinfection formulas and parameters can be added and edited as needed.
H₂O₂solution concentration 8%, ensuring excellent material compatibility.
No residue, secondary pollution, or harmful substances after disinfection.
Quick and convenient dosing.
No external air source required, suitable for a wide range of applications.
Intelligent operation with one-button setup and start.
Three-level access permissions with password protection.
Data recording, export, and printing.
Precise PLC control.
Audit tracking.
Group control.
Delayed start.
Scheduled start.
Audio-visual alarm.

Specifications

Dimensions (mm): 400x400x1100(WxDxH)	Outer Shell Material: 316L stainless steel
Net weight: 60kg	Solution Tank Capacity: 6L
Injection Rate: ≥50g/min	Sterilant: 7.5% food-grade H2O2 solution
Max. Power: 600W	Information Editing: Supports English
Appointment Start: Support	Delayed Start: 0-120s (adjustable)
Record Storage: 25,000 cycles	Data Printing: Equipped with a printer
Data Export: USB support for data export

Applications

Widely used for air and surface disinfection in sterile pharmaceutical cleanrooms, sterility testing laboratories, sampling rooms, material transfer rooms, animal facilities, and various hospital wards.
