Home > VH2O2 Sterilization System > Vaporized Hydrogen Peroxide Generator
HTY-V350

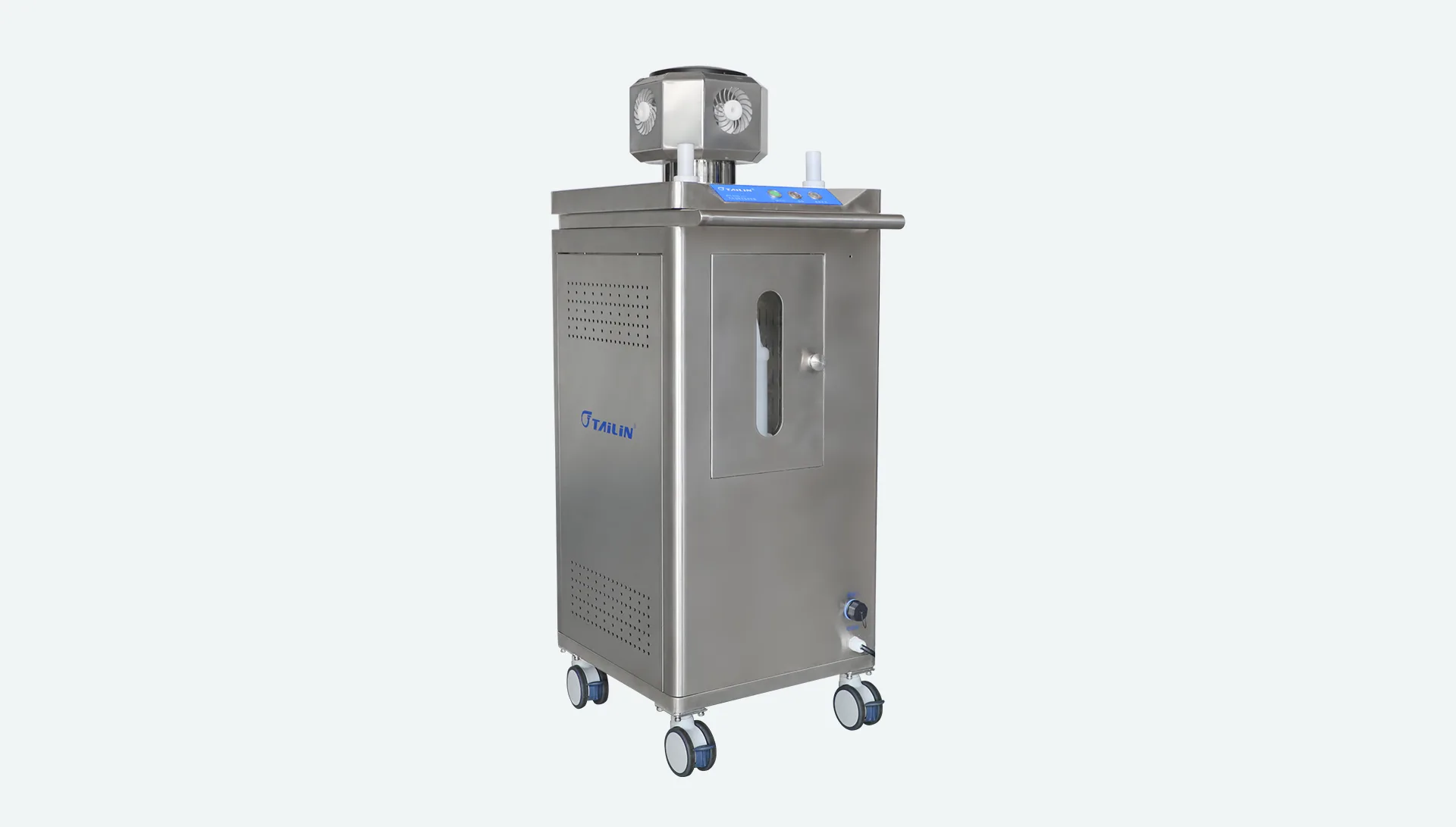

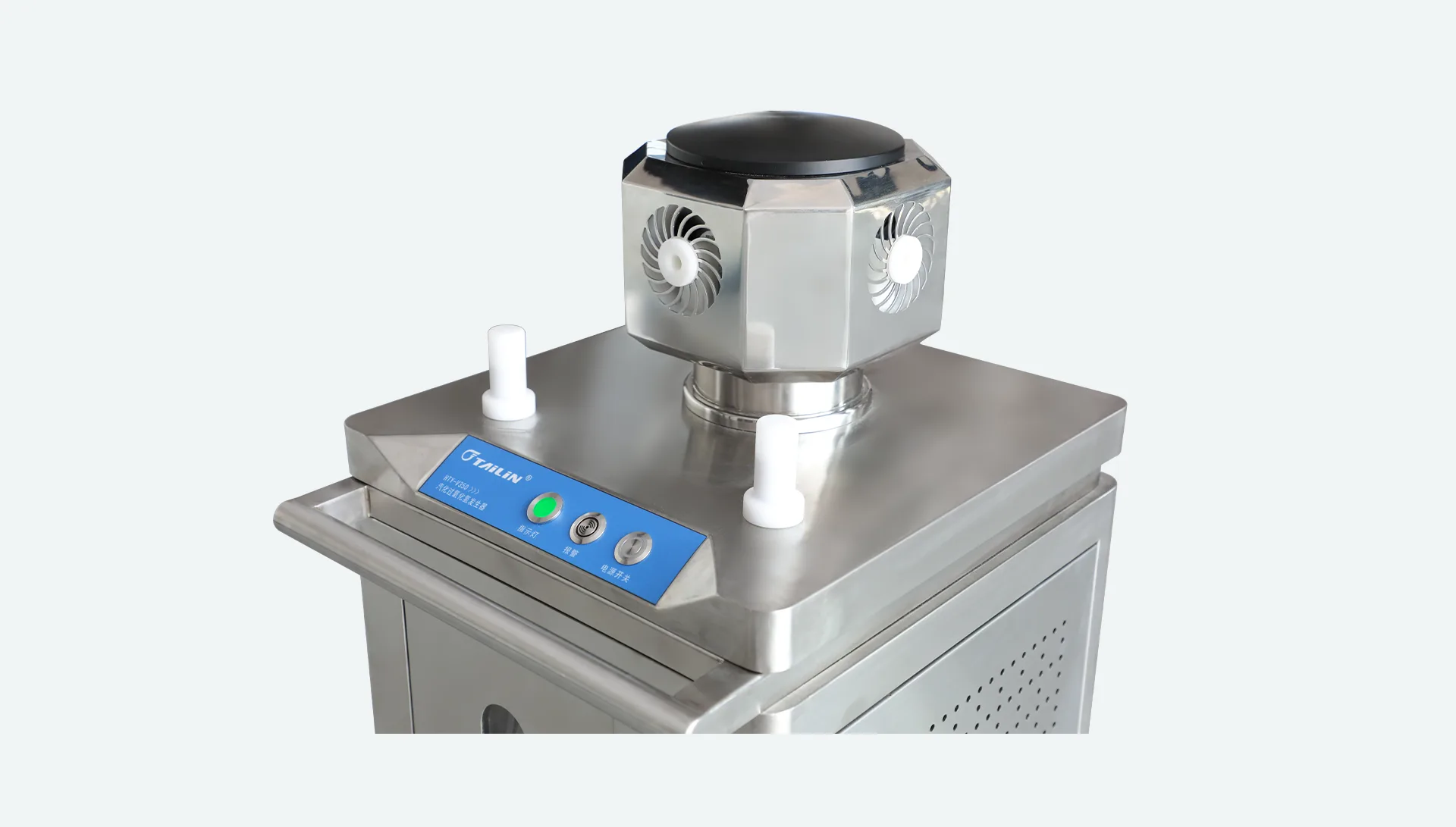

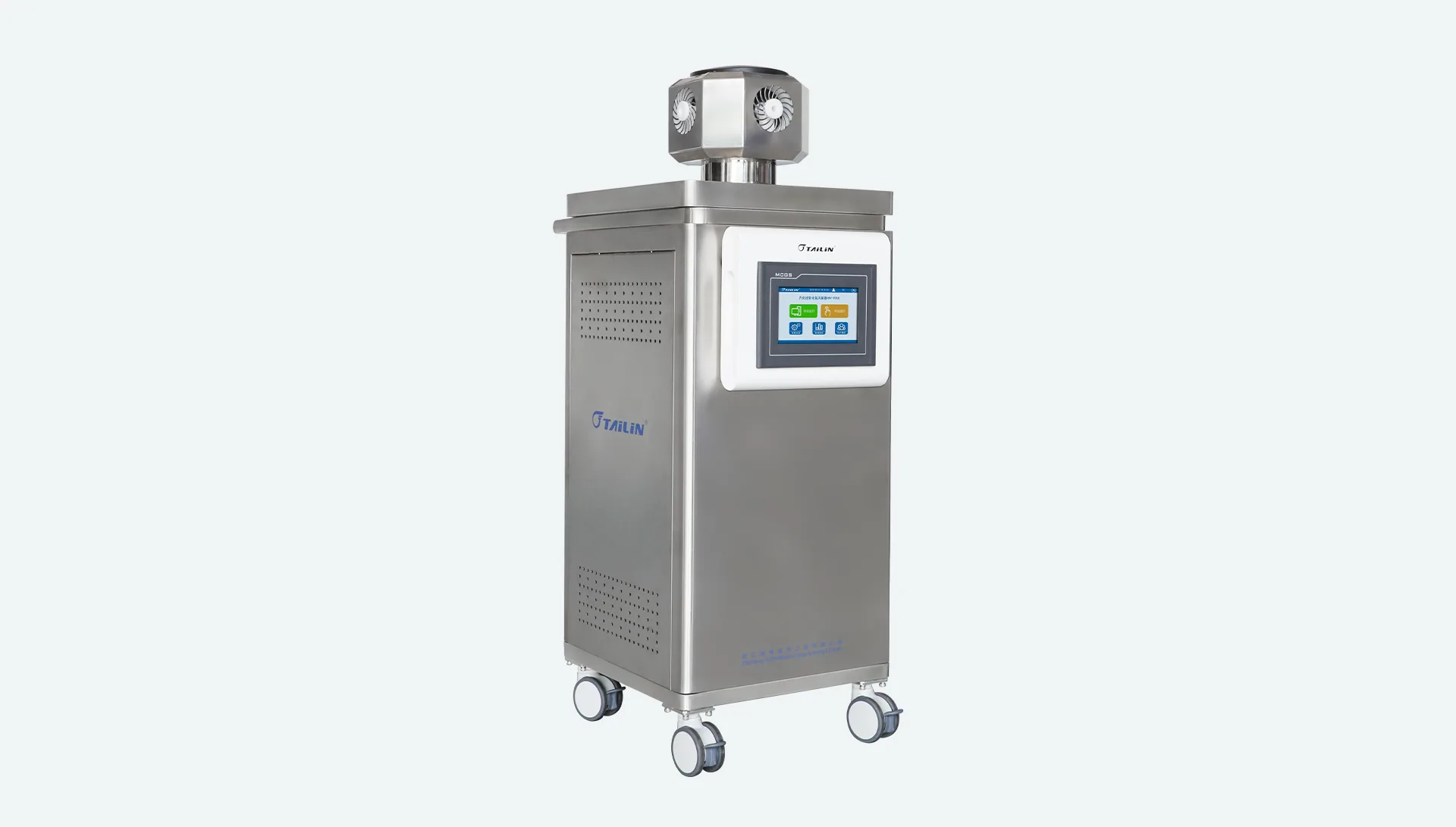

Vaporized Hydrogen Peroxide Generator (VHP Generator) HTY-V350 adopts high-speed airflow and flash vaporization technology to vaporize a 35% hydrogen peroxide solution into hydrogen peroxide steam. Through the pipeline or nozzle, the system delivers hydrogen peroxide into the confined space to achieve rapid vaporized hydrogen peroxide sterilization (VHP sterilization).
The vaporized hydrogen peroxide molecules contain a large number of hydroxyl radicals, which can kill microorganisms by attacking molecules on cell membranes and biologically active components such as DNA inside cells. This advanced VH2O2 generator system ensures a highly efficient and repeatable VH2O2 sterilization process, making it ideal for pharmaceutical and laboratory environments.
| Airflow: <200m³/h | Max. Sterilization Volume: 400m³ |
| Solution Tank Capacity: 2.5L, compatible with 5L | Number of Outlets: 4 |
| Injection Rate: 0–14g/min, adjustable | Flash Vaporization Temperature: ≤150°C |
| Sterilant: 35% food-grade H2O2 solution | Data Management: Password management or three-level permissions |
| Data Reports: Log records and operational data with time stamps | Monitoring Parameters: Time |
| Killing Rate: ≥log6 | Control Method: Dual-mode control with industrial tablet and Siemens HMl controller, supports remote wired control |
| Gas Output: Built-in scattering system | Target Objects: Cleanrooms and other enclosed spaces, for high-level air and surface disinfection/chemical sterilization |
| Residue Removal Method: Decomposition via the sterilized space’s airconditioning and ventilation system until residual concentration meets OSHA standards | Dimensions: 410x430x1150mm (W×D×H) |
| Power Supply: 220V±22V, 50Hz | Power: 3kW, 16A |
| *Vaporized Hydrogen Peroxide (VH2O2) technology is commonly referred to as VHP in the industry. |
Primarily used for sterilization and disinfection in the public spaces, such as pharmaceutical cleanrooms, bio-laboratories, animal laboratories, and animal facilities, etc.
Vaporized Hydrogen Peroxide Generator (VHP Generator) HTY-V350 is specifically designed for effective vaporized hydrogen peroxide sterilization (VHP sterilization) in cleanrooms, isolators, and pass boxes. It utilizes flash evaporation technology to convert liquid hydrogen peroxide into vapor, ensuring rapid sporicidal action and 6-log reduction of biological indicators, while being highly compatible with sensitive materials.
No. Vaporized hydrogen peroxide sterilization (VHP sterilization) is an eco-friendly process. The HTY-V350 breaks down vaporized H2O2 into oxygen and water vapor after the cycle. This ensures that the sterilized area is safe for re-entry without any toxic residues, making it ideal for GMP-regulated environments.
The unit features high-precision sensors to monitor H2O2 injection rates, temperature, and humidity. These parameters are critical for a successful vaporized hydrogen peroxide sterilization (VHP sterilization) cycle. As a leading vaporized hydrogen peroxide generator (VHP generator), the HTY-V350 provides repeatable and validated performance, meeting the strict requirements of GMP standards.
