Home > Solutions > Pharma Processing > High Precision Filling and Dispensing > Desktop Nested Liquid Filling & Stoppering Machine

DNLF01

Desktop Nested Liquid Filling & Stoppering Machine

A compact solution integrating liquid filling and stoppering

Introduction

Features

Specifications

Applications

Inquiry

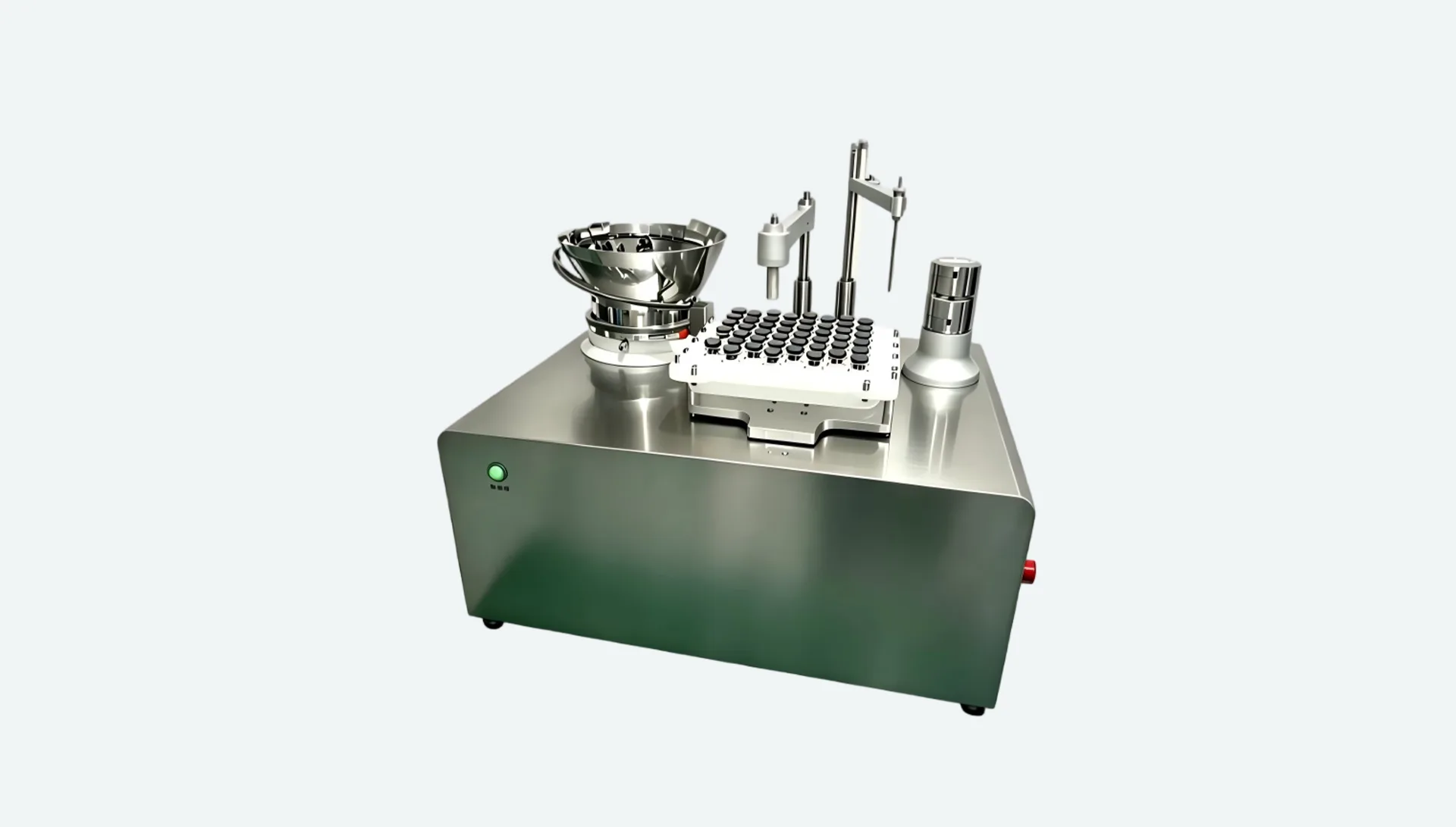

DNLF01 Desktop Nested Liquid Filling & Stoppering Machine is a compact solution integrating liquid filling and stoppering. Compatible with RTU nests, it minimizes manual intervention and supports aseptic processing. It enables continuous processing of an entire nest, with adjustable filling volume and stoppering height

Desktop Nested Liquid Filling & Stoppering Machine DNLF01

Vacuum stoppering for vials, cartridges, and prefilled syringes

Fully automated filling and stoppering of complete RTU nests

High-precision peristaltic pump filling with volumes as low as 0.1 ml

Features

RTU Nest Compatibility

  • Compatible with major RTU nest formats for vials, cartridges, and prefilled syringes
  • Adjustable filling volume and stoppering height

Precision Filling & Stoppering

  • Fully automated filling and vacuum stoppering for complete RTU nests
  • High-precision peristaltic pump filling down to 0.1 mL

Efficient Operation

  • Intuitive HMI with quick format changeover
  • Recipe management for consistent and repeatable production
  • Reduced operator intervention through automation

Aseptic & Data Integrity Compliance

  • GMP Grade A compatible construction with VH2O2-resistant design
  • 21 CFR Part 11 and GAMP compliant system with audit trails, batch records, electronic signatures, and user management
  • PDF report generation, export, and printing

Specifications

Power: 220V 50Hz 2.0kW Filling Range: 0.1mL-1200mL/min
Air Supply: Clean compressed air, ≥0.5 MPa Filling Repeatability: ±1%(1 mL fill volume, purified water, ambient temperature)
Capacity: Up to 600 containers/h Dimensions: 676mmx536mmx596mm（LxWxH）

Applications

Designed for high-precision filling and stoppering of vials, cartridges, and prefilled syringes.
Tailin Bioengineering

Pharmaceutical Industry

Tailin Bioengineering

Biotechnology & Gene Therapy

Tailin Bioengineering

R&D
