MLFC

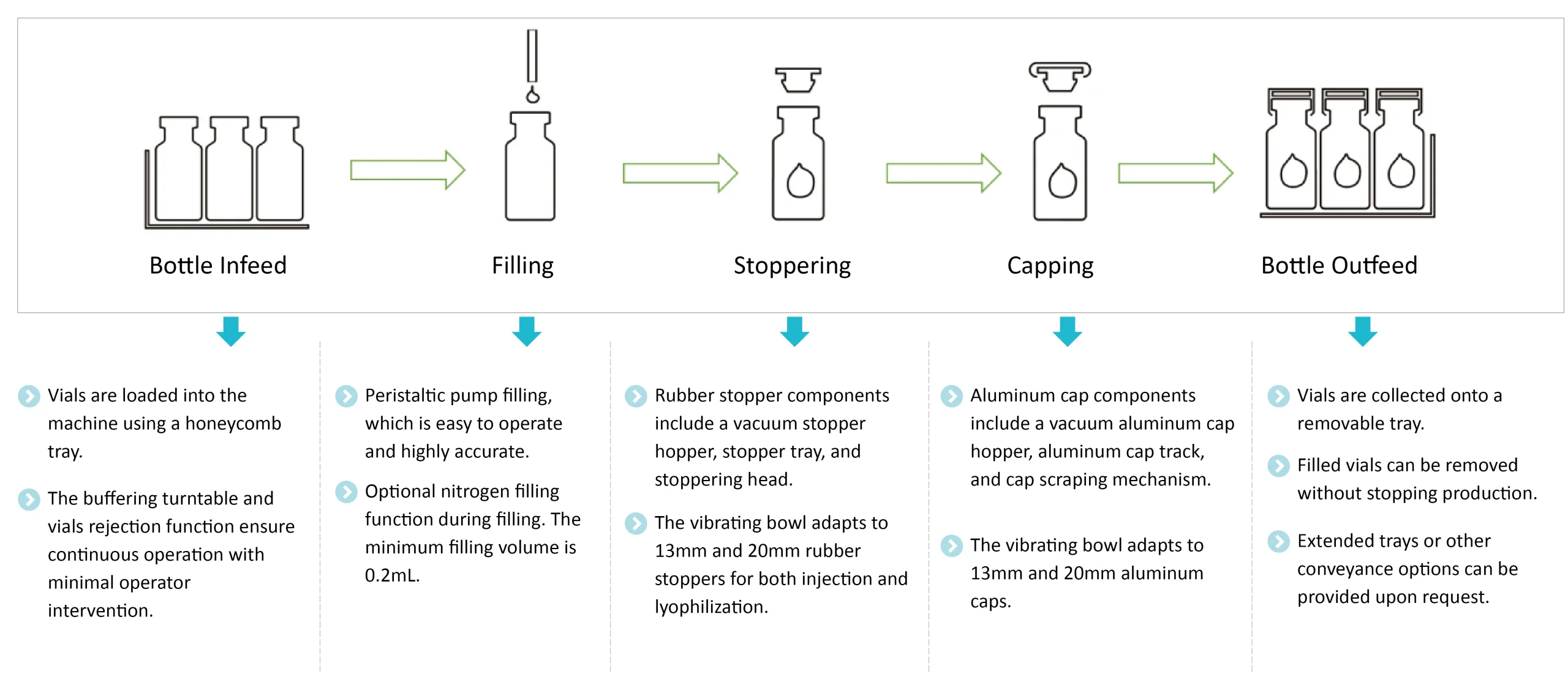

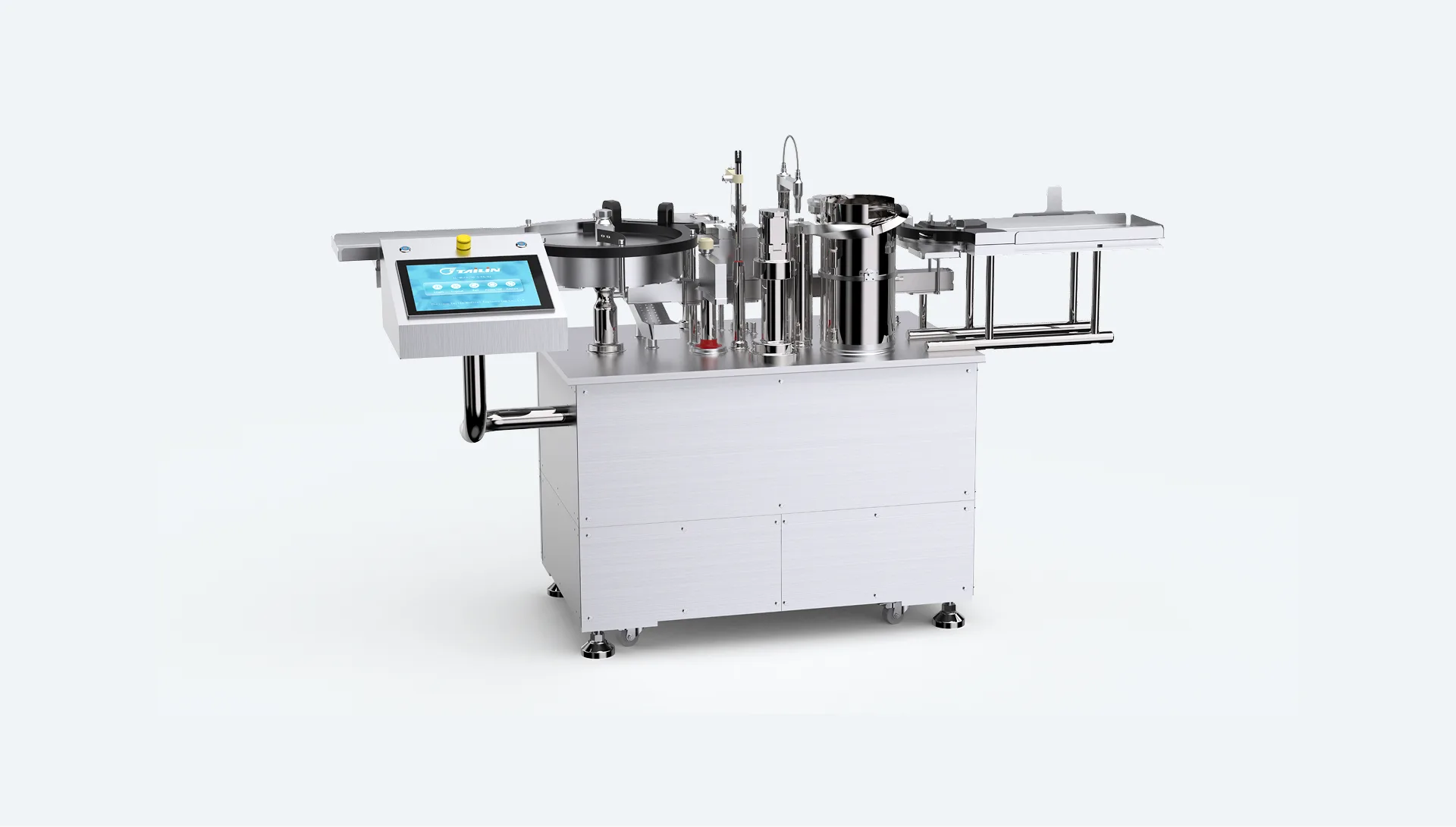

Tailin MLFC is a ready-to-use system for filling, stoppering, and capping vials. It is ideal for clinical trials and small-scale production. It is mainly targeted at product development departments in the pharmaceutical and biotechnology industries, as well as other high-precision quantitative filling, stoppering, and capping processes for products such as lentiviral vectors and gene therapies. It handles vial sizes from 2 mL to 100 mL and can be used in laminar flow cleanrooms, isolators, or RABS systems.
| Stopper Size: 13mm and 20mm | Cap Size: 13mm and 20mm aluminum caps, aluminum-plastic caps, RayDyLyo® plastic press caps |
| Filling Method: Peristaltic pump | Output: Approx.6 Vials/min |
| Power Supply: 220V, 50Hz | Power: 1.5kW |
| Filling Volume and Accuracy: 0.5-100mL ±1% (based on water) | Air Supply: Clean compressed air ≥6 bar |
| Vacuum: -150 mbar; pumping speed 4m³/hour | Materials: Stainless steel, anodized aluminum (contact parts with stopper and aluminum cap are SUS316L) |
| Optional: Nitrogen filling before/after filling | Bottle Infeed and Outfeed Trays: Customizable as needed |
