DL01

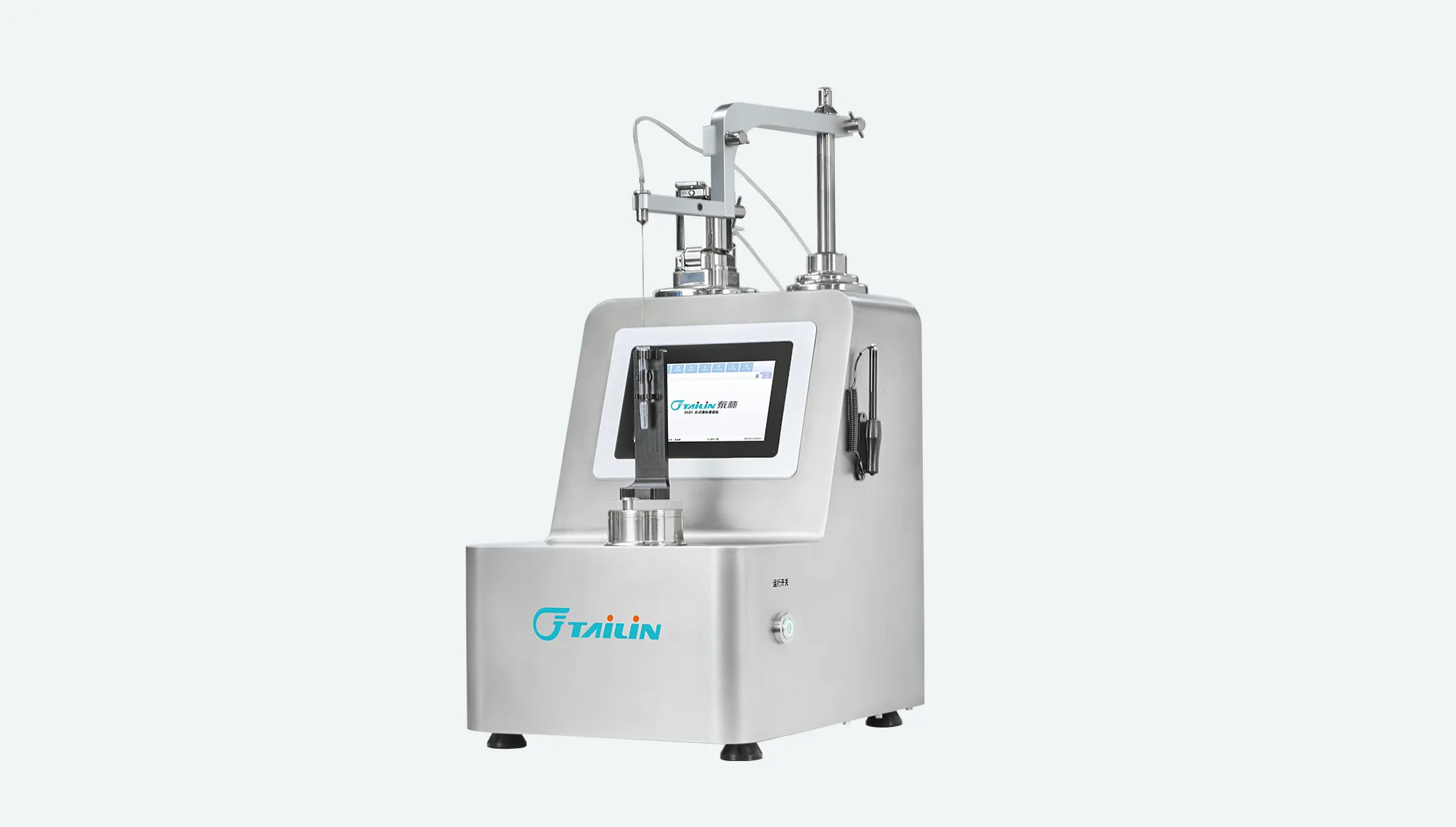

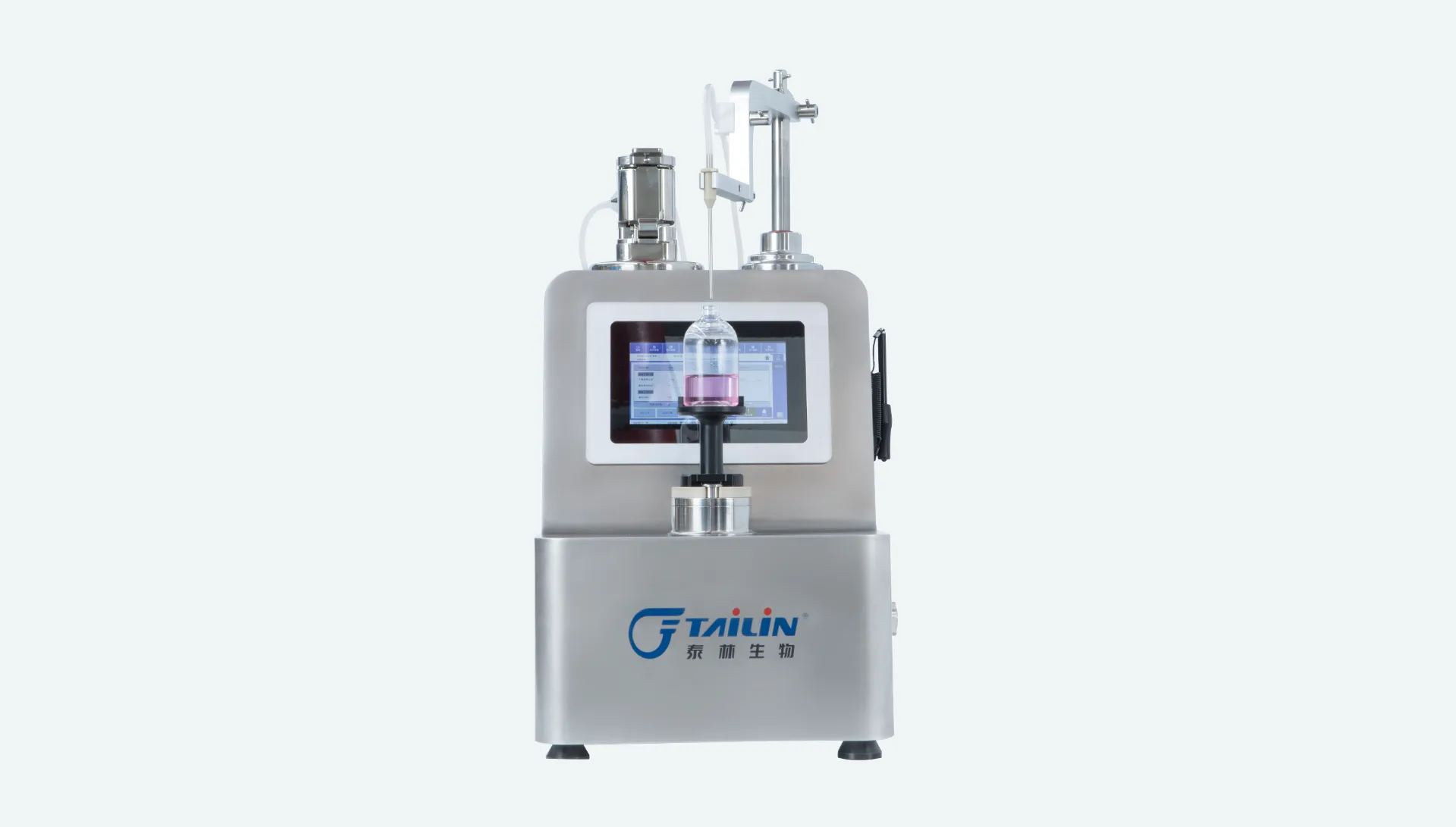

Desktop Liquid Filling DL01

A multi-functional compact filling machine

Introduction

Features

Specifications

Applications

Download

Inquiry

DL01 is a multi-functional compact filling machine. The hardware adopts an advanced and reliable algorithm of the pharmaceutical large filling line, with the pump-needle linkage function, avoiding the splashing liquid and bubbles.

High-Precision & Stable Filling

Smart Control & Data Traceability

Compact & User-Friendly Design

Features

  • Pump-needle linkage function avoiding the splashing liquid and bubbles.
  • Emptying and sucking-back to avoid waste.
  • Timed filling, online backup and disaster recovery.
  • Recipe versioning, audit trail, batch records, e-signatures, and user management.
  • PDF report generation and export for printing.
  • High-precision filling as low as 0.1 mL.
  • Superior repeatable filling accuracy of±0.5%.
  • Complies with 21 CFR Part 11 and GAMP.
  • Full 316L stainless-steel pump head and body, resistant to VH2O2 sterilization.
  • HD multi-touch screen, glove-friendly.
  • Easy-to-use, quick-swap carrier design.
  • Convenient independent trigger button.

Specifications

Power Supply: 220V Power: 0.85kW
Capacity: 500 units/h Filling Range: 0.1ml~2200ml/min
Repeat Fill Accuracy: ±0.5% Dimensions: 425mmx335mmx680mm (LxWxH)

Applications

Used for high-precision filling of various containers such as vials, cryovials, prefilled syringes and ampoules.
