Vaporized Hydrogen Peroxide Generator

High-efficiency VH₂O₂ generator featuring Flash Vaporization Technology and real-time process monitoring

Introduction

Features

Specifications

Applications

Inquiry

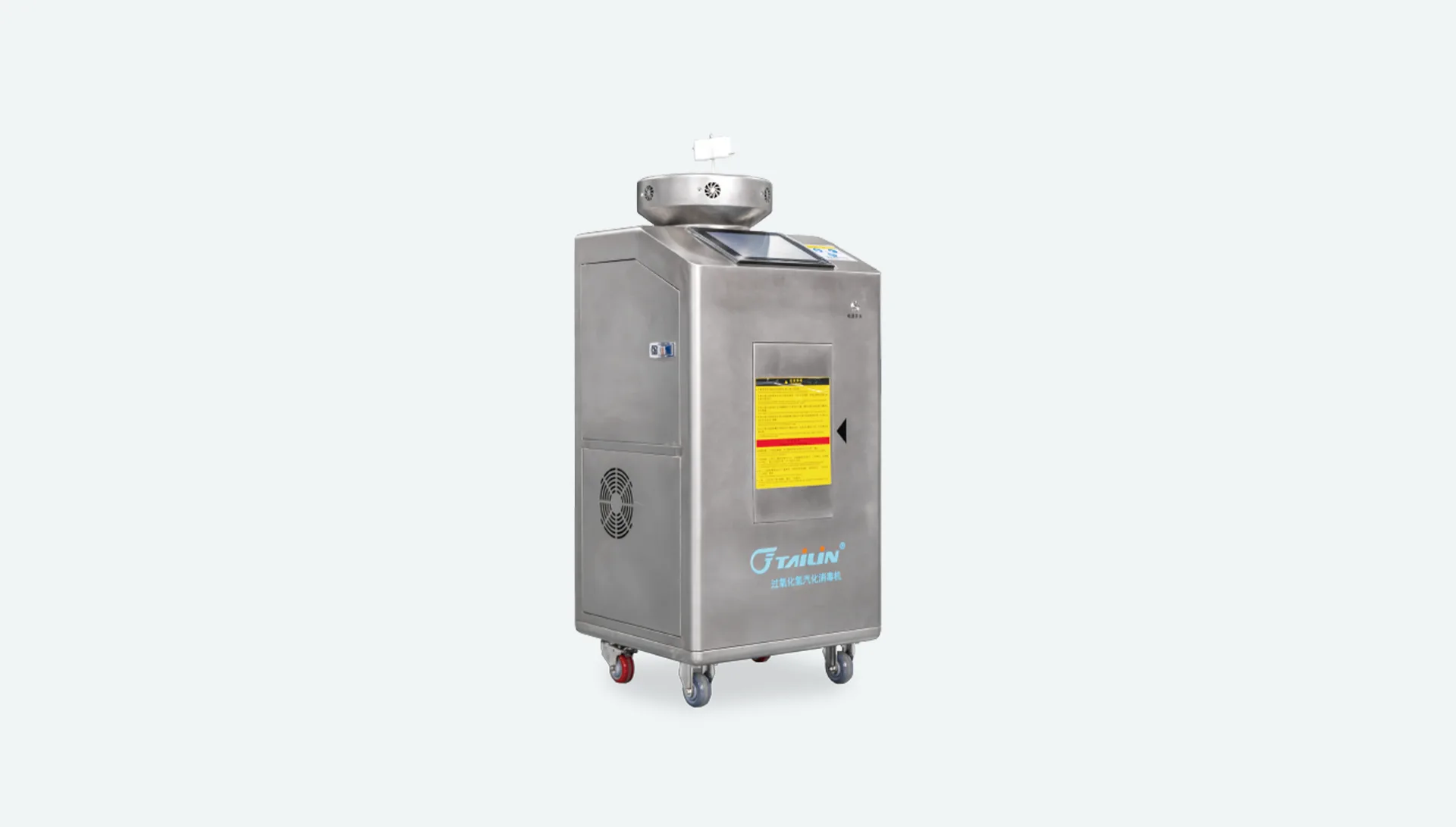

The VH2O2-Basic-S Vaporized Hydrogen Peroxide Generator adopts Tailin’s new-generation High-Efficiency Flash Vaporization Technology. Its liquid-electric separation design and 3D spiral heating structure ensure stable heat transfer, safe operation, and long-term scale-resistant performance. An external integrated sensor provides real-time monitoring of hydrogen peroxide concentration, temperature, and humidity throughout the decontami-
nation process.

Decontamination parameters are automatically saved for reuse. Process data, including temperature, humidity, and hydrogen peroxide concentration, are recorded in real time with online trend curves available. After decontamination, the data can be printed or exported.

High-Efficiency Flash Vaporization

Real-Time Process Monitoring

Automated Data Management

Features

Control Method: The main unit is configured as an Advantech industrial computer running a genuine Windows 10 operating system, with the SCADA software being NetCA-DA 5.0, which features electronic signature and audit trail capabilities.
Solution Dosage: Real-time monitoring of hydrogen peroxide solution level in the reservoir determines whether the required sterilization dosage is met; an alarm is triggered if insufficient. Utilizing Tailin’s advanced control algorithm, the total solution usage error remains ≤2%, ensuring high accuracy.
Turbulent Flow Diffusion: The device features six evenly distributed exhaust ports on the top, equipped with an integrated high-speed turbulent fan to ensure faster and more uniform dispersion of disinfectant gas. The operation interface allows independent control of both left and right fans, adapting to complex sterilization environments and preventing direct gas spray onto powder-coated steel panels when installed in narrow corridors, thereby reducing corrosion risks.
3D Circulation Airflow: The integrated circulation fan at the device’s base delivers vertical airflow, addressing low air concentration at the bottom of cleanrooms.
Real-time Monitoring Function: The device can be connected to an integrated sensor for temperature, humidity, and hydrogen peroxide concentration, enabling accurate online monitoring of hydrogen peroxide concentration, temperature, and humidity values during the decontamination process.

Specifications

Outline Dimension: 610mm×540mm×1200mm(L×W×H)	Weight: 81kg
Power Supply: 220V±22V, 50Hz±1Hz	Power: 1800W
Decontamination Volume: 500m³	Reservoir Capacity: 5L
Injection Rate: 0.1-15g/min adjustable	Sterilizing Agent: 30–35% reagent-grade hydrogen peroxide solution (without stabilizer)
Casters: ＞7cm	Control Authority: Features standard three-level permission roles for operators, process engineers, and administrators
Sterilization Effect: The applicable biological indicator achieved a ≥6-log reduction in spore count	Monitoring Parameters: Time, Temperature, Relative Humidity, Hydrogen Peroxide Concentration, Solution Consumption
Control Method: An industrial tablet computer is employed as the operating screen for fully automated control, with the program automatically executing stages such as preheating, adjustment, sterilization, and residue removal	Post-disinfection Treatment Methods: The degradation is achieved through the combined action of the sterilizer, the degradation module of the diffusion degrader (optional), and the external air conditioning unit in the sterilization chamber, until the residual concentration meets the national standard requirement of below 1 ppm
Safety: 1. The control system is resistant to interference from handheld radio devices and mobile phone signals within a 1-meter radius around the device. 2. In case of failures in public power infrastructure (e.g., electrical systems), all circuits and components of the device will cease operation

Applications

It can be connected via pipelines for the sterilization of isolators, biosafety cabinets, BIBO units, and other enclosed chambers. Additionally, it is suitable for sterilizing cleanrooms, biosafety laboratories, hospitals, etc.
