Home > VH2O2 Sterilization System > Vaporized Hydrogen Peroxide Generator

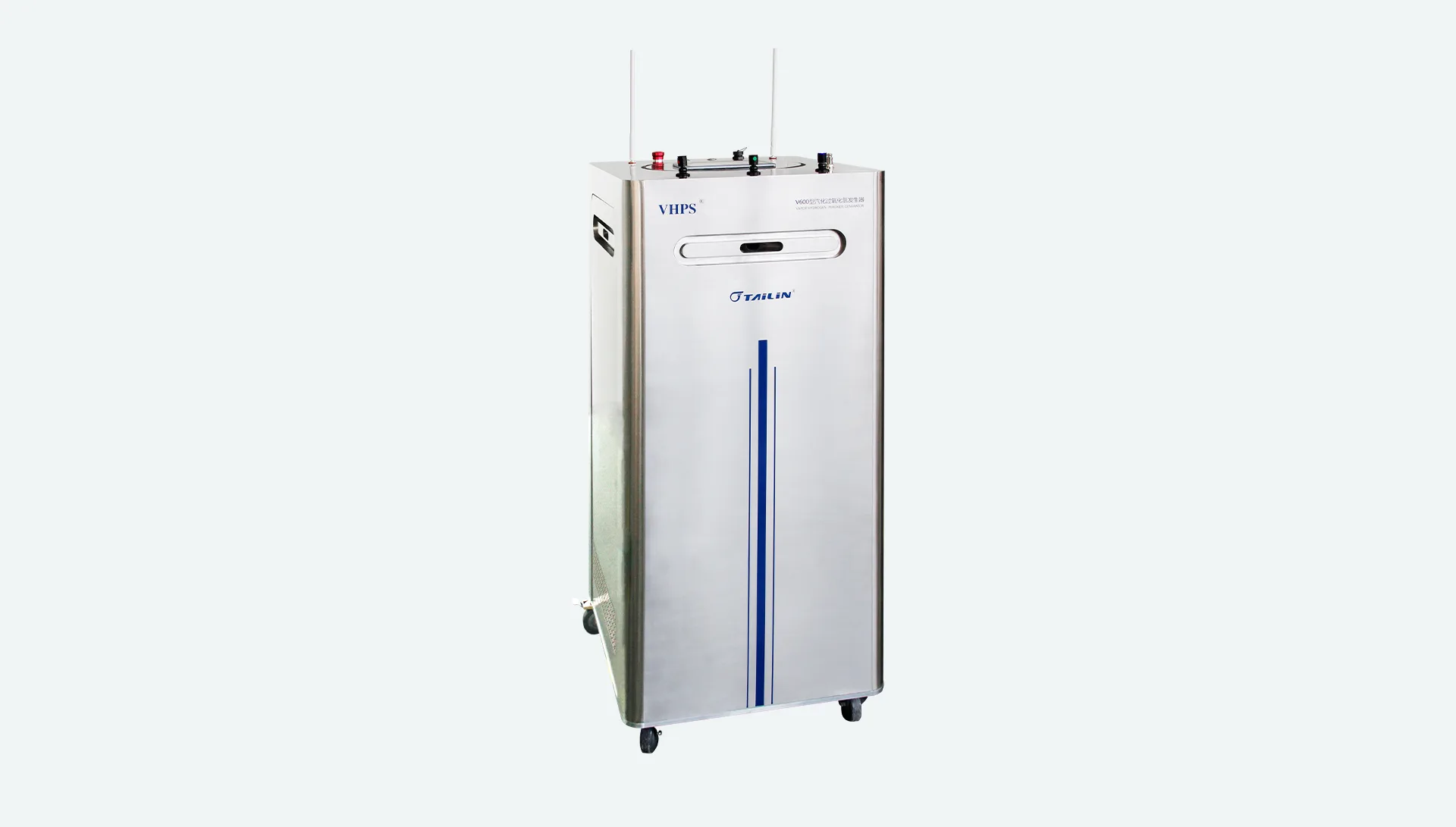

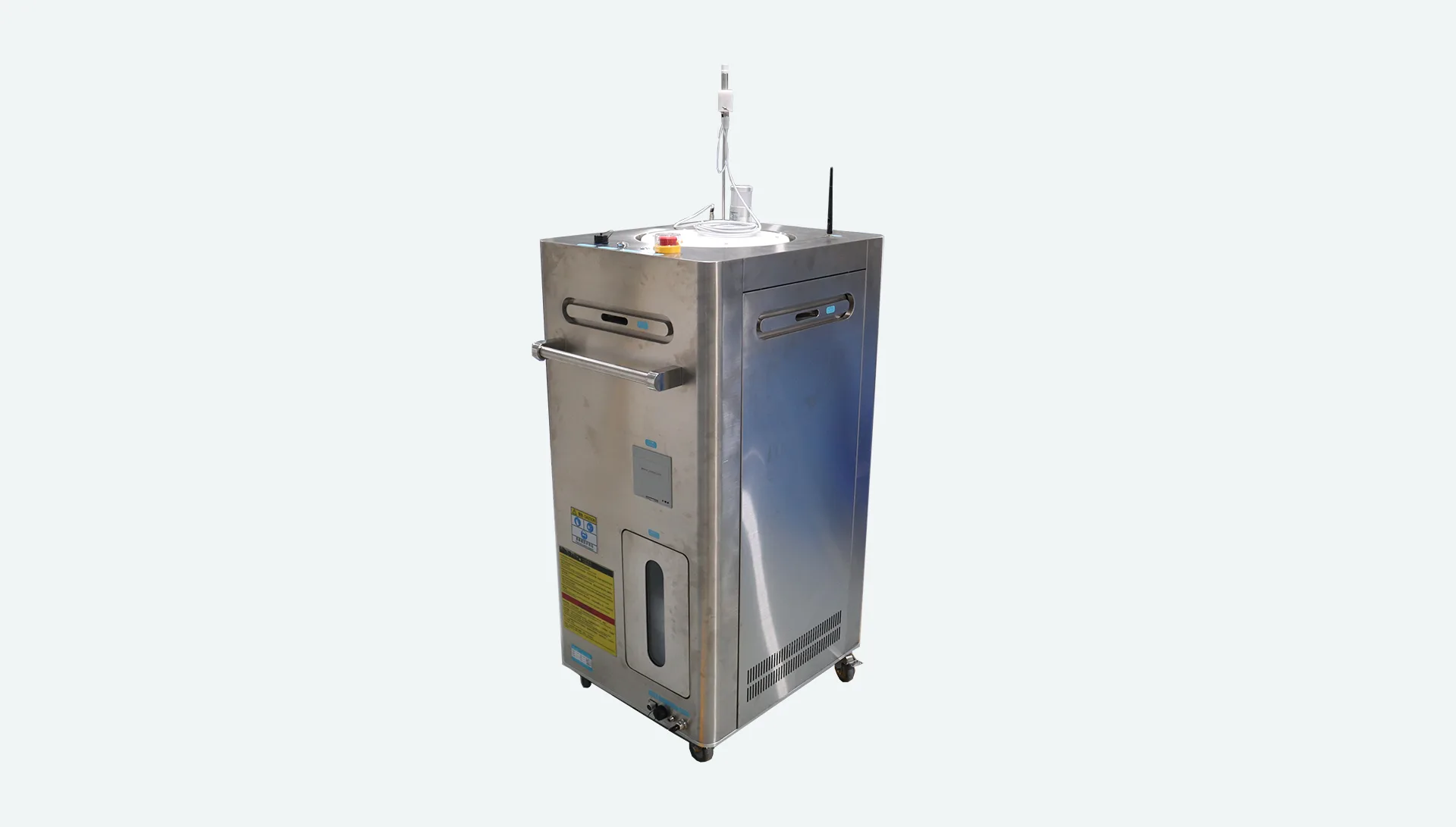

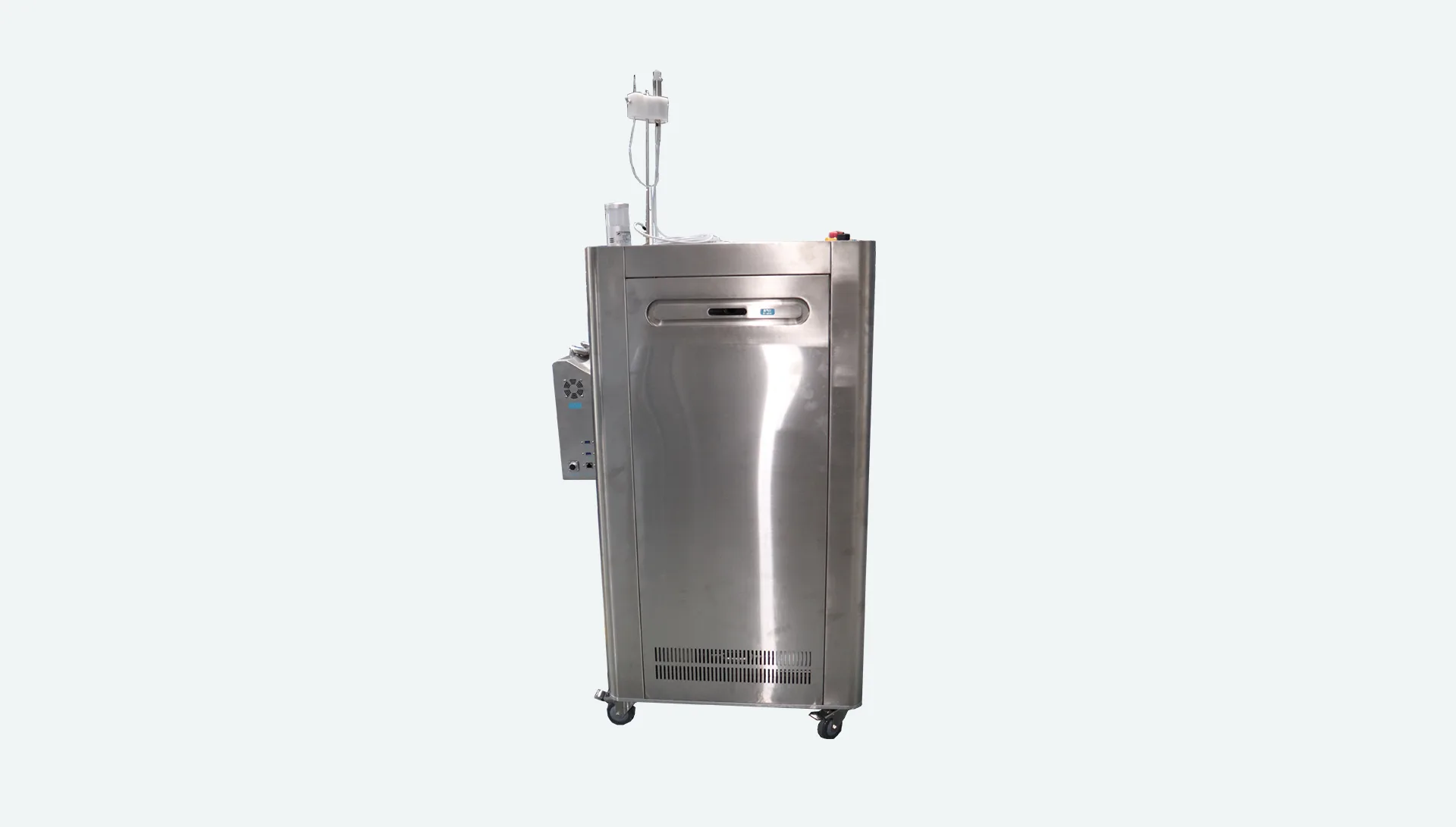

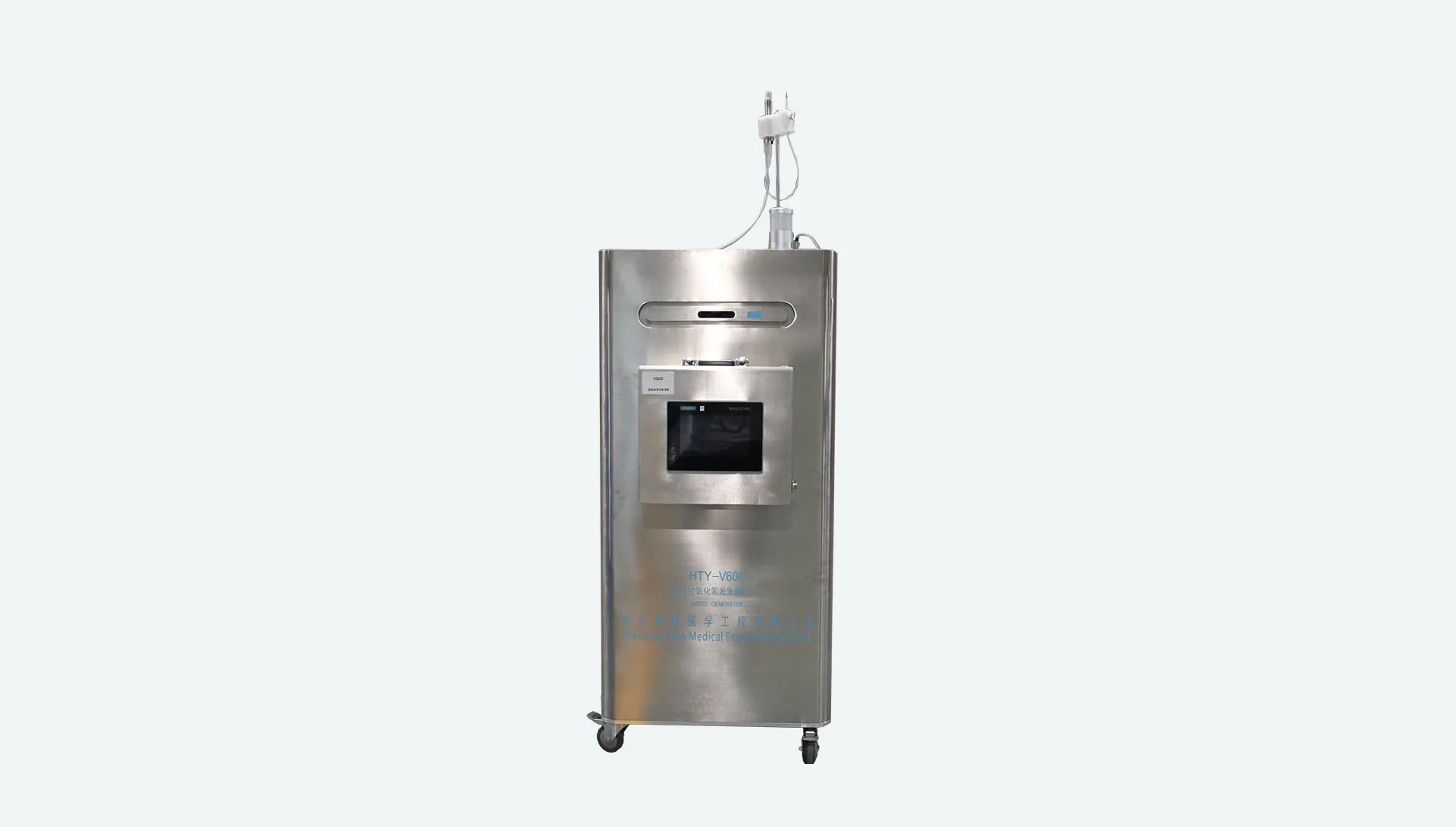

Vaporized Hydrogen Peroxide Generator HTY-V600 adpots high-speed airflow and flash vaporization technology to vaporize 35% hydrogen peroxide solution into hydrogen peroxide steam, and through the pipeline or nozzle hydrogen peroxide into the confined space. Vaporized hydrogen peroxide molecules contain a large number of hydroxyl radicals, which can kill microorganisms by attacking molecules on cell membranes and biologically active components such as DNA inside cells.
| Airflow: <200m³/h | Sterilization Volume: ≤600m³ |
| Compressed Air: Pressure: 0.3 MPa, flow rate | High-Efficiency Filtration Efficiency: 99.99% |
| Solution Tank Capacity: 5000mL | Output Direction: 360° all-directional spraying |
| Injection Rate: Adjustable flow rate 5-40 g/min | Vaporization Temperature: ≤160°C |
| Data Reports: Log records and operational data with time stamps | Monitoring Parameters: Time |
| Sterilant: 35% food-grade H2O2 solution | Killing Rate: ≥log6 |

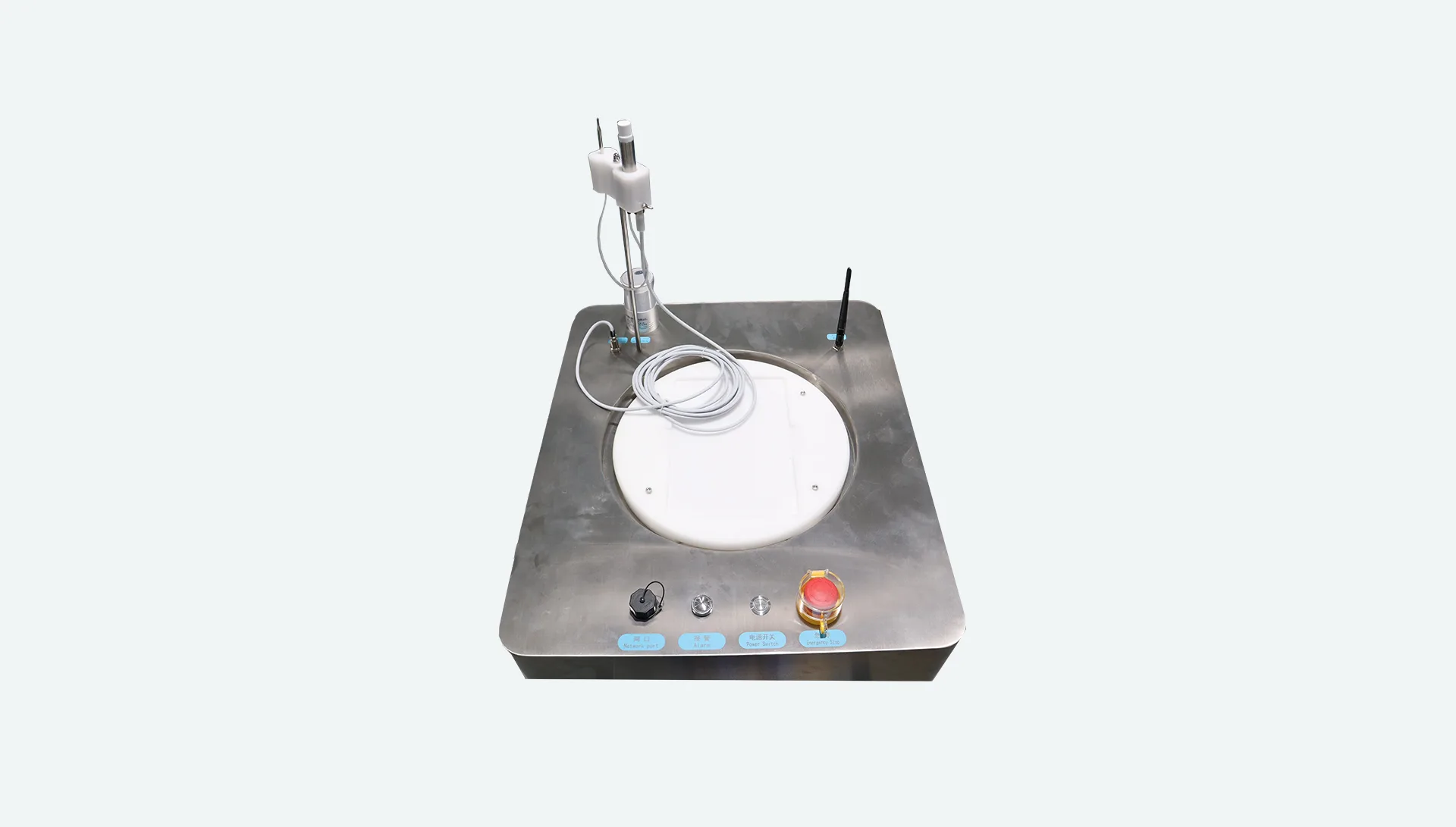

| Distribution Uniformity: After sterilization, the CIs exposed at all points in the space exhibit uniform color changes | Control Method: Equipped with a split control system, the main unit is separated from the operation panel.Siemens Programmable Logic Controller (PLC) enables modular control, and the touch screen allows remote operation outside the disinfection area, ensuring ease of use |
| Operation Mode: Built-in scattering system | Target Objects: Designed for high-level disinfection/chemical sterilization of air and surfaces in large cleanrooms and other enclosed spaces |
| Post-Sterilization Treatment Method: After sterilization, the gaseous hydrogen peroxide is decomposed through the air conditioning and ventilation system of the sterilized space until the residual concentraltion meets national standards reaching below 1 ppm | Noise: During operation, the noise level at 1 meter from the device at ear height is ≤75dB |
| Safety: 1. The control system can resist interference from handheld radio devices and mobile phone signals within a 1-meter range of the device 2. In the event of a utility failure (e.g, power outage), all circuits and components of the device will stop functioning |
Dimensions(mm): 650x560x1250(L×W×H) |
| Weight: 90kg | Power Supply: 220V±22V, 50Hz±1Hz |
| Power: 4000W, 25A |
Primarily used for sterilization and disinfection in the public spaces, such as pharmaceutical cleanrooms, bio-laboratories, animal laboratories, and animal facilities, etc.
