HTY-30A

Vacuum Pump

A specialized pump designed for microbiological testing

Introduction

Features

Specifications

Applications

Inquiry

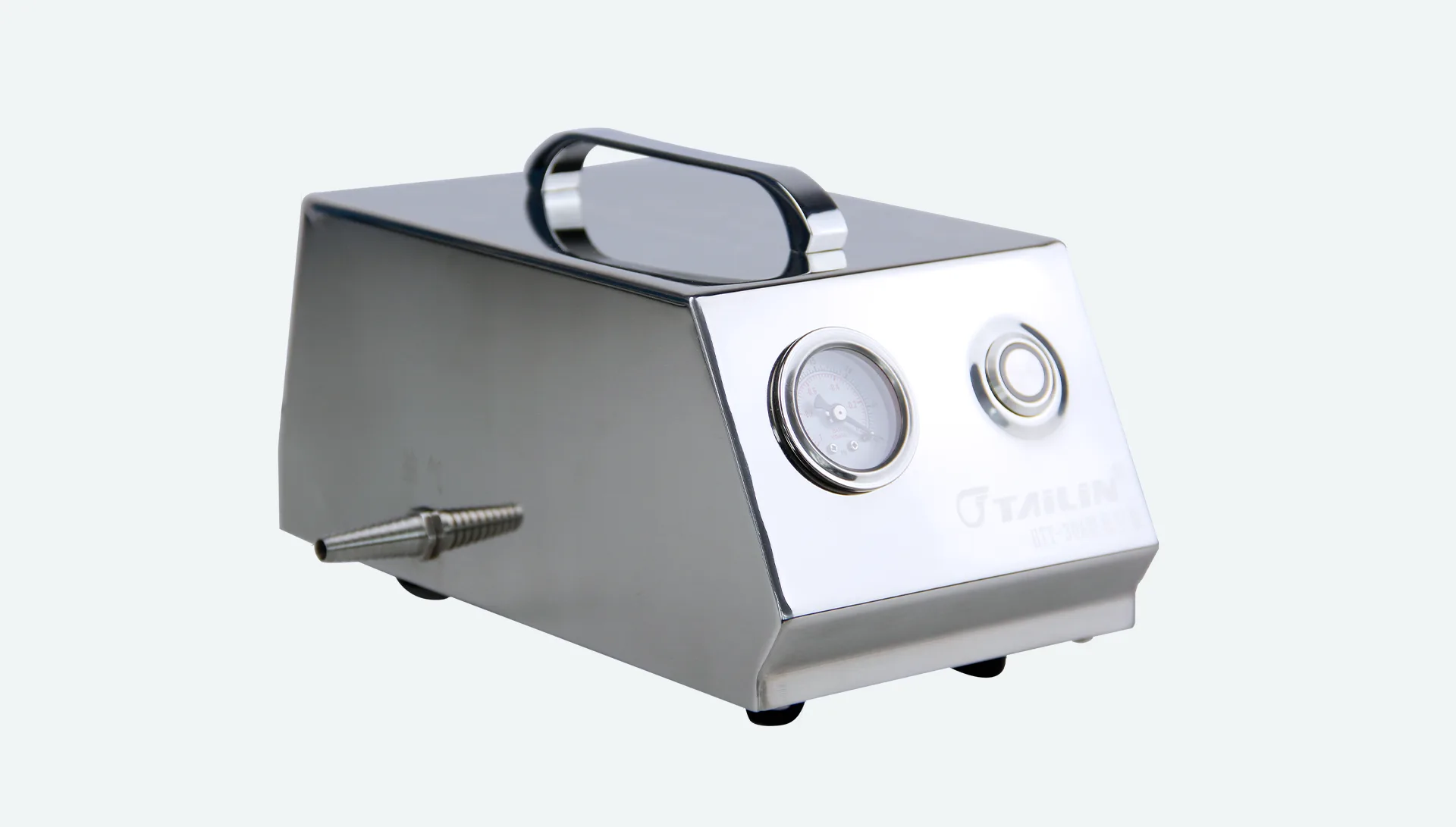

The HTY-30A vacuum pump is a specialized pump designed for microbiological testing. It features a compact form factor, simple operation, and easy cleaning and maintenance. The vacuum gauge displays the operating status in real time for clear monitoring. It can be paired with microbial limit test manifolds to perform microbiological testing using negative-pressure filtration, or used independently as a vacuum device.

Vacuum Pump

Direct discharge

Small size, suitable for use in laminar flow hood

Low noise, easy to clean and disinfection

Features

  • Can be used as a vacuum device.
  • Indicator light button switch control.
  • Vacuum gauge displays real-time operating status.
  • High-performance vacuum pump, and should be used together with a filter bottle for drainage.
  • Used with microbial limlit test manifolds, funnels, and membrane filters to form the microbial test system.

*In actual use, it is recommended that the inlet of the filter bottle lower than the outlet of the manifolds.

Specifications

Power: AC220V/50Hz, 30W Noise: ≤65dB(A) (under load)
Flow Rate: 25L/min（Vacuum Flow Rate） Weight: 3kg
Size: 14.0x25.0x11.0cm Vacuity: 30KPa (absolute pressure), -70KPa (relative pressure）

Applications

Microbial Limit Testing is used to determine whether a non-sterile pharmaceutical product complies with an established specification for microbial quality.
Tailin Bioengineering

Pharmaceuticals

Microbial limit testing of purified water, water for injection, and other drugs and preparations.

Tailin Bioengineering

Food & Beverage

Total colony count in beverages, mineral water, and purified water.

Tailin Bioengineering

Disease Control

Total bacterial count and pathogen detection in water samples such as air-conditioning condensate and drinking water.
