Home > Solutions > Water Quality > Total Organic Carbon (TOC) Analysis > TOC Analyzer Controller

HTY-DI1500-PM

TOC Analyzer Controller

Intelligent TOC Analyzer Control Unit

Introduction

Features

Specifications

Applications

Inquiry

HTY-DI1500-PM Total Organic Carbon (TOC) Analyzer Controller is the core control unit of the TOC detection system, integrating instrument control, data management, and system operation functions. It enables centralized management and stable operation of the TOC analyzer. It provids a reliable control and management platform for TOC monitoring of pharmaceutical water systems and other critical process media.

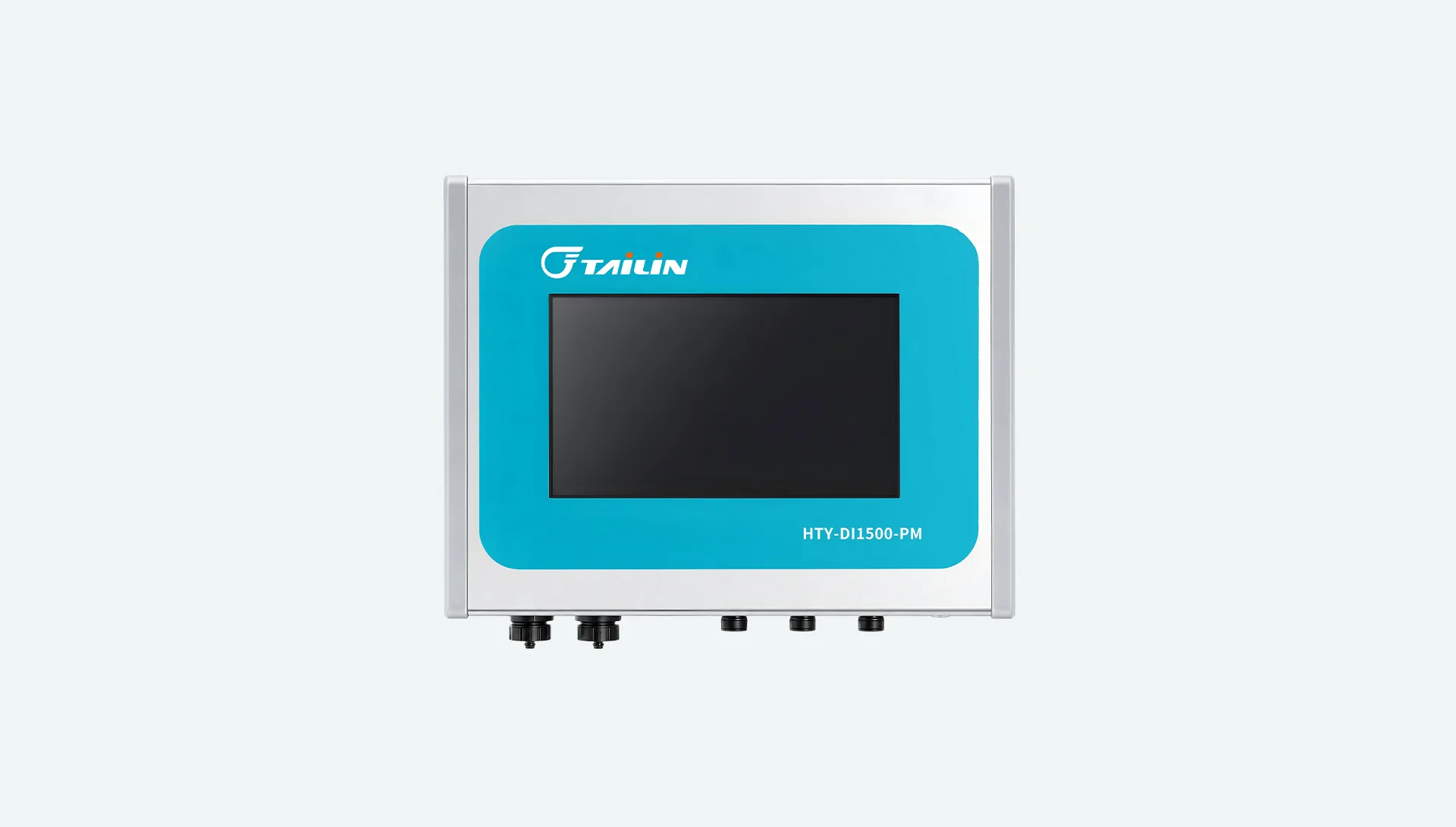

TOC Analyzer Controller DI1500-PM

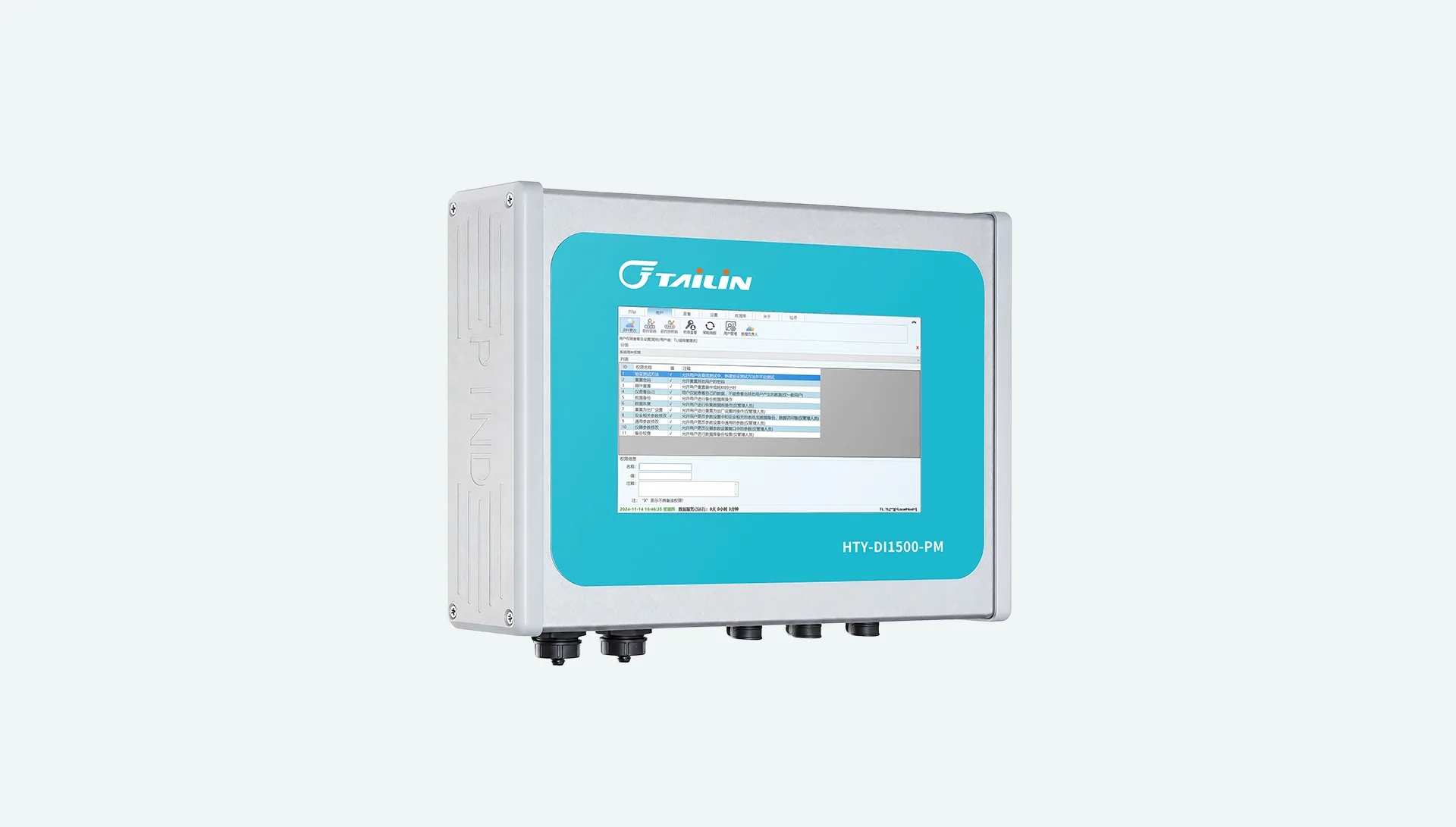

TOC Analyzer Controller DI1500-PM

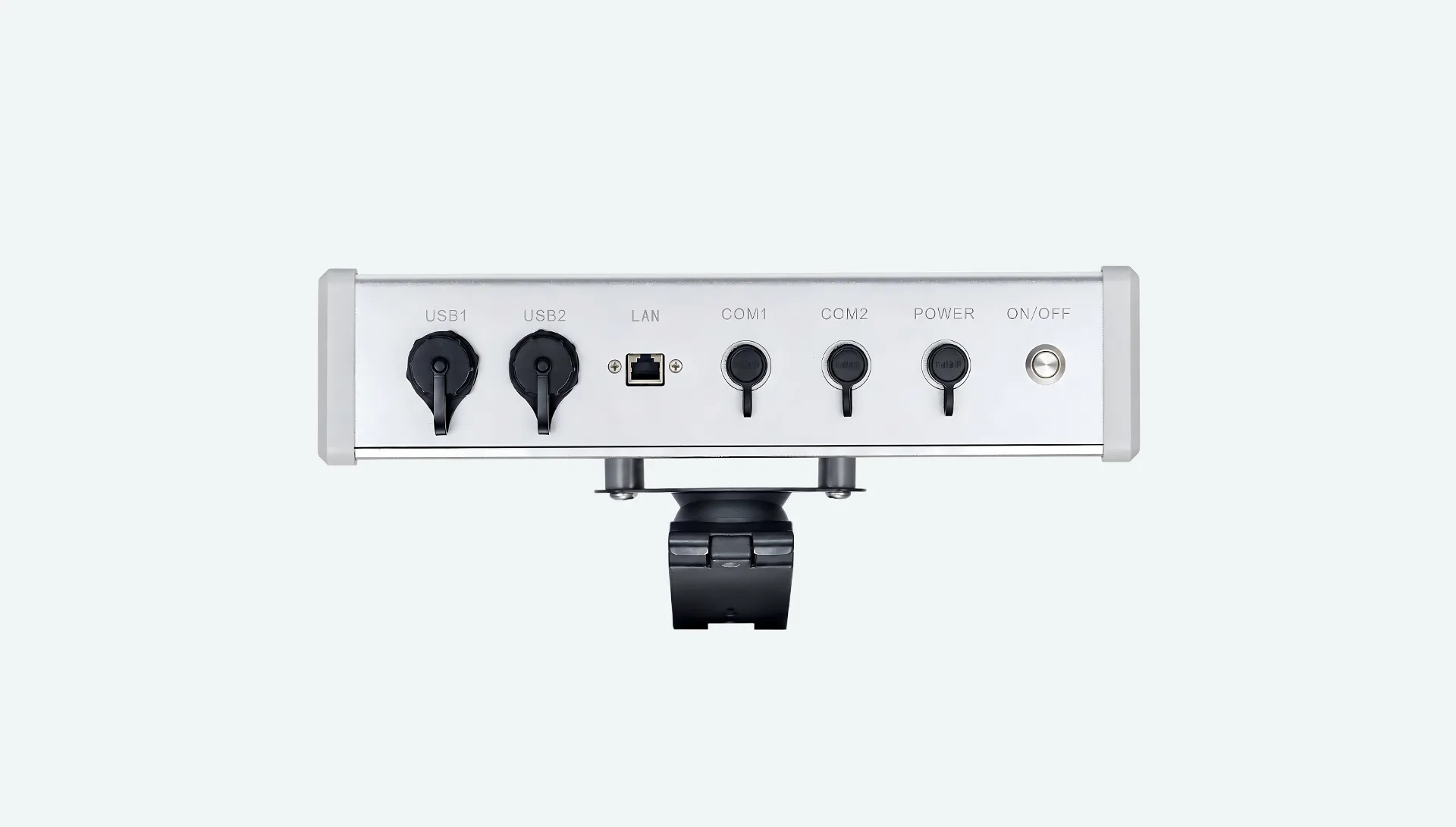

TOC Analyzer Controller DI1500-PM

Centralized management of multiple TOC analyzers

IP65-rated design for stable continuous operation

Easy data export and real-time reporting

Features

Centralized Instrument Control

  • Supports centralized control and management of up to 4 TOC analyzers (excluding the DC200 model).

Reliable Industrial Design

  • IP65 protection rating for dust and water resistance, suitable for demanding industrial environments.

Stable Continuous Operation

  • Automatic startup after power-on, ready for testing without manual intervention.
  • Automatic recovery and resumption of testing after power restoration, ensuring continuous operation.

Efficient Data Handling

  • USB data export for convenient data transfer.
  • Real-time printing of test results.

Specifications

Power Supply: 100‒240 VAC, 50/60 Hz Dimensions: 370 × 275 × 136 mm
Power: 60 W Weight: 5 kg
Audit Trail: Supported User Access Management: Four-level user permission management
Hardware: 10.1-inch HD touchscreen, Intel® quad-core processor, 8 GB RAM, 32 GB SSD, 500 GB HDD

Applications

Tailin Bioengineering

Semiconductor Process Water Monitoring

Tailin Bioengineering

Ultrapure Water Quality Monitoring

Tailin Bioengineering

Pharmaceuticals
