PBL Series

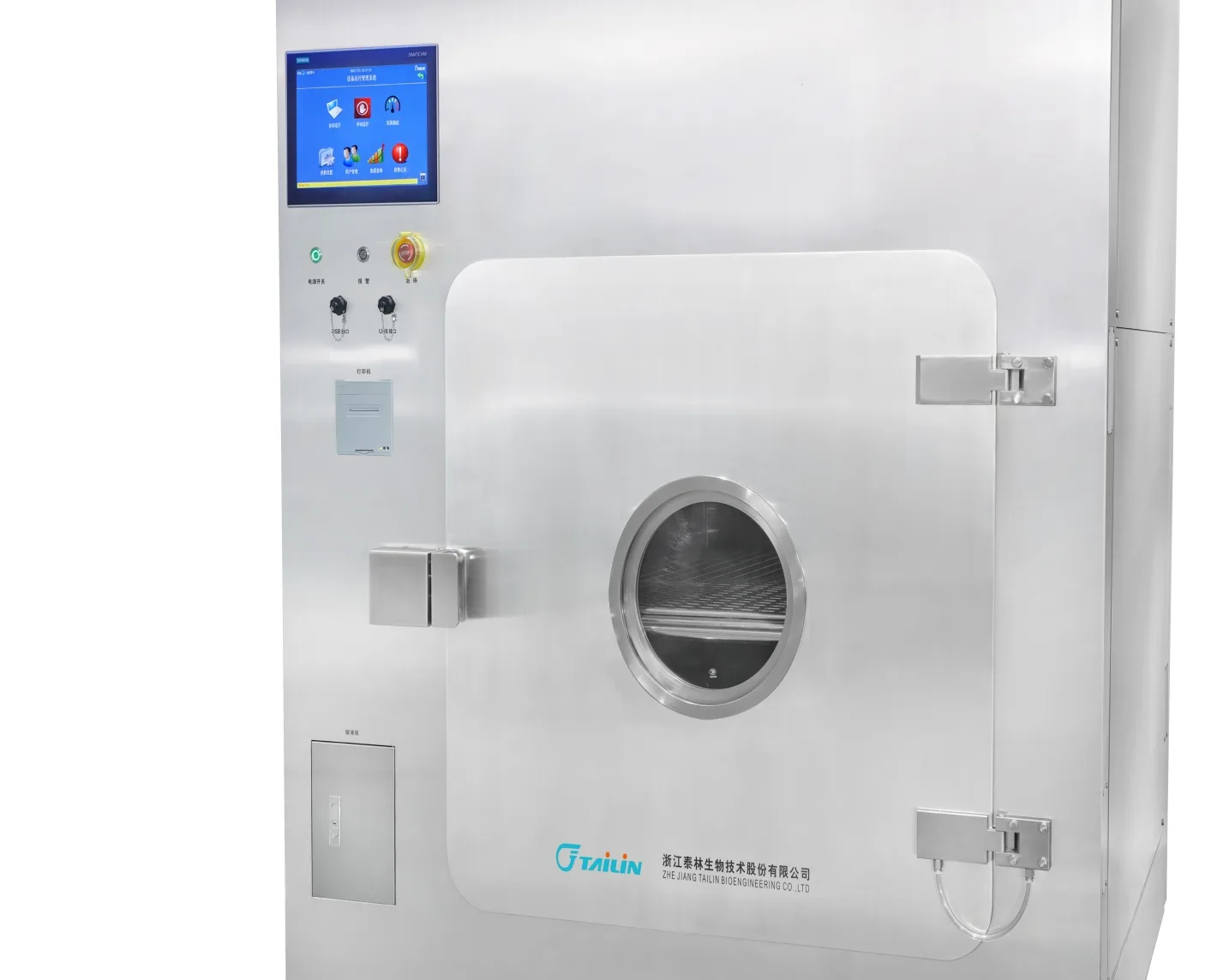

The PBL Series Sterile Pass Box (decontamination airlock) is equipped with an integrated Vaporized Hydrogen Peroxide (VH2O2) system for surface decontamination. It features vertical laminar airflow and maintains a Class A internal environment. Controlled by a SIEMENS PLC, the system operates automatically and unattended once sterilization parameters are set.
| Air flow: Vertical laminar flow | Cleanliness: GMP Grade A |
| Complete Cycle Time: 150min | VH2O2 Residue: ≤1ppm |
| HEPA Filters: H14 | Outlet: 4" or 6" TC |
| VH2O2 Inlet: 1.5" TC | Sterility Assurance Level: ≥6-log kill |
| Chamber Material: SUS316L | Print: Bio-decontamination cycle parameter saving and printing |
| Alarms: High/low pressure alarm, interlock alarm, VH2O2 concentration alarm,temperature alarm, door open timeout |
For transferring materials such as APIs and tools from low grade areas to Class B areas.
For the handling of items that cannot endure high temperatures into Class A/B aseptic areas.
