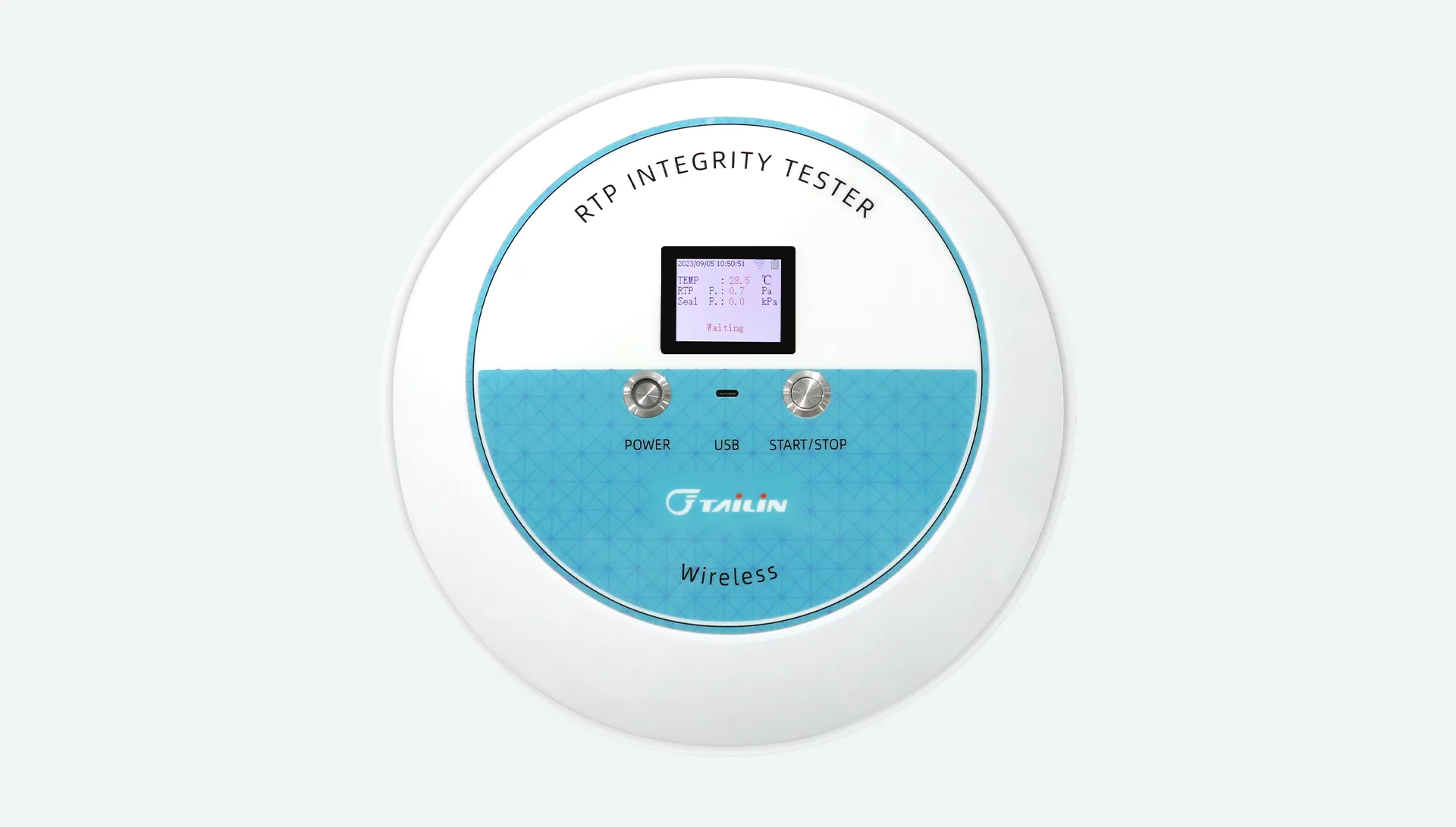

RTP Integrity Tester

RTP Integrity Tester

Designed for leak testing of alpha and beta ports

Introduction

Features

Specifications

Applications

Inquiry

The RTP Integrity Tester is designed for leak testing of alpha and beta ports. It adopts the pressure drop test method and has positive pressure / negative pressure mode. The parameters required for the measurement could be individually configured by the user according to the actual situation.

RTP Integrity Tester
RTP Integrity Tester

Can be customized to meet the specific dimensions

Compact, portable, and tailored to the customer's RTP product

Wireless data transfer to PC

Features

  • Compact, portable, and tailored to the customer’s RTP product.
  • Wireless data transfer to PC.
  • No external power supply required.
  • Wide range of test recipes to suit various needs.
  • Meet the repeatability and reproducibility requirements of ISO14644-7.
  • Validation protocols (IQ, OQ, PQ) and services are available.
  • Easy to clean and suitable to use in clean rooms.
  • Automatic monitoring of inflatable seal pressure and RTP during the test.
  • Industrial tablet for clean room is optional.
  • Comply with 21CFR part ll requirements.
  • Comply with FDA/GMP and Computer System.

Specifications

Test Time: 5-8min Power: ≤20W
Pressure Display Resolution: 1Pa Commnunication: WiFi
Test Port : Customized on demand Smallest Hole Detectable: 30µm
Battery: 12V lithium battery Battery Charging Time: ≤ 4 hours
Continuous Working Time: ≥4 hours Inflation Pressure: -4000 Pa to 4000 Pa
Dimensions: Φ260 x 135mm(for Alpha port); Φ260 x 165mm (for Beta port) Accessories: Test management software/Storage and charging trolley

Applications

Tailin Bioengineering

Pharmaceutical and Biotechnology Aseptic Production

Tailin Bioengineering

Food Industry Safety Control

Tailin Bioengineering

High-Risk Industrial Protection
