Isolator for Solid Dosage

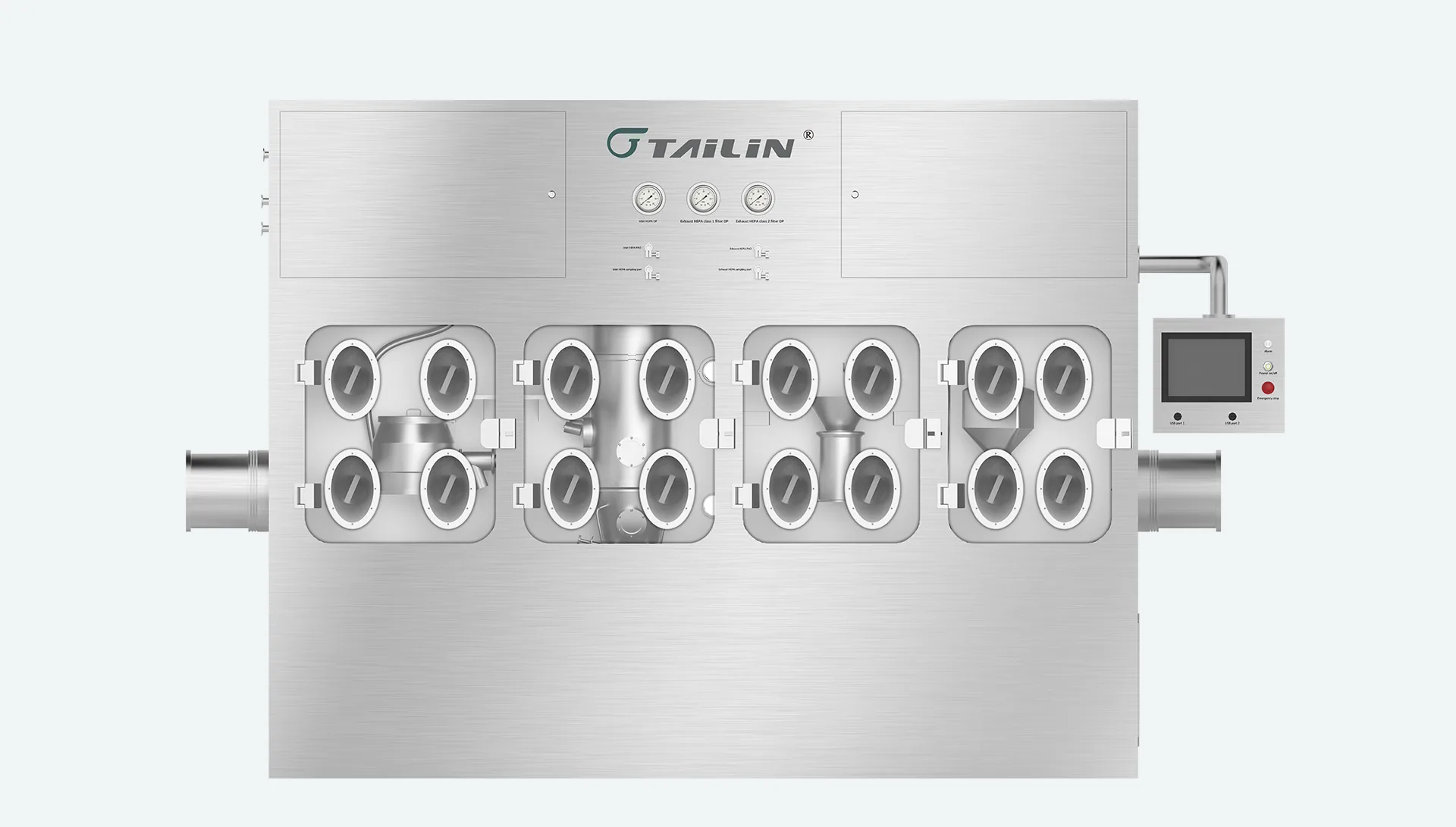

Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. It is mainly applied in pharmaceuticals, cosmetics, bioproduct research, and physico-chemical laboratory studies. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area. This design effectively prevents cross-contamination between internal and external environments, ensuring the safety of both personnel and the surrounding environment.
| Fresh Air Supply Volume: ≥100m³/h | Operation Chamber Space (mm): 3175x539x1043(L*W*H) |
| Public Utilities: Clean compressed air 0.6Mpa≤P≤0.8Mpa | Net Weight : 600kg |
| Overall Size (mm) : 4013x794x2479(L*W*H) | Power: 220V, 3kw, 10A(Isolator only) |
| Doors: All doors are equipped with inflatable seal, the observation window is made of 15mm thickness tempered glass | The top of the isolator is fitted with an exhaust pipe connected to an exhaust blower |
Used in solid dosage production line.
