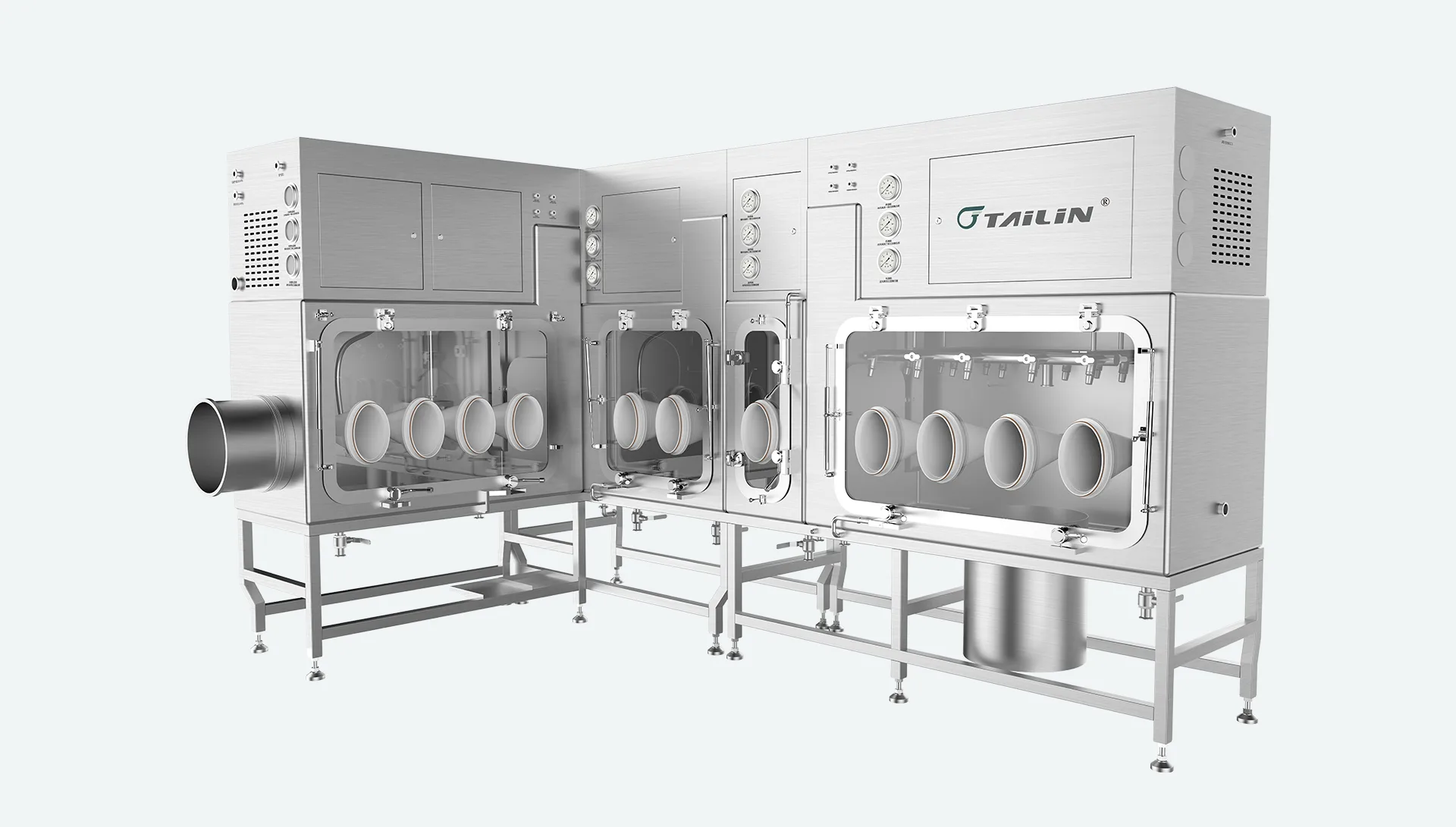

Isolator for Freeze-drying, Weighing & Capping
The isolator is placed in the laboratory and shall not affect the structure of the existing workshop.
It is designed to be the L-shape and the length of the right-angle side less than 240cm, the depth of the isolator less than 105cm, the height of the room is 240cm.
Equipped with 1 rotary evaporator, 2 electronic evaporators and 1 capping machine.
The sinking freeze dryer chamber and freeze dryer manifold interface are reserved in the isolator, and the freeze dryer is connected to the sinking freeze dryer chamber and the freeze dryer manifold through a wired hose.
| Fresh Air Volume: ≥400m³/h | Weighing and Capping Space (mm): 1550x750x2400(L*W*H) |
| Public Utilities: Clean compressed air 0.6Mpa≤P≤0.8Mpa | Rotary Evaporator Space (mm): 1800x850x2400(L*W*H) |
| Overall Size (mm): 4000x2705x2400(L*W*H) | Transfer Chamber Space (mm): 500x850x2400(L*W*H) |
| Freeze Dryer Space (mm): 1700x850x2400(L*W*H) | Net Weight: 1400kg |
| Power: 380V, 7.5kw (isolator) | Lifting Doors: Made of 3mm metal panel with Inflatable seal |
| Doors: All doors adopt mechanical press sealing; the observation window is made of 12mm thickness tempered glass. |
Used in the laboratory for freeze-drying, weighing and dispensing
