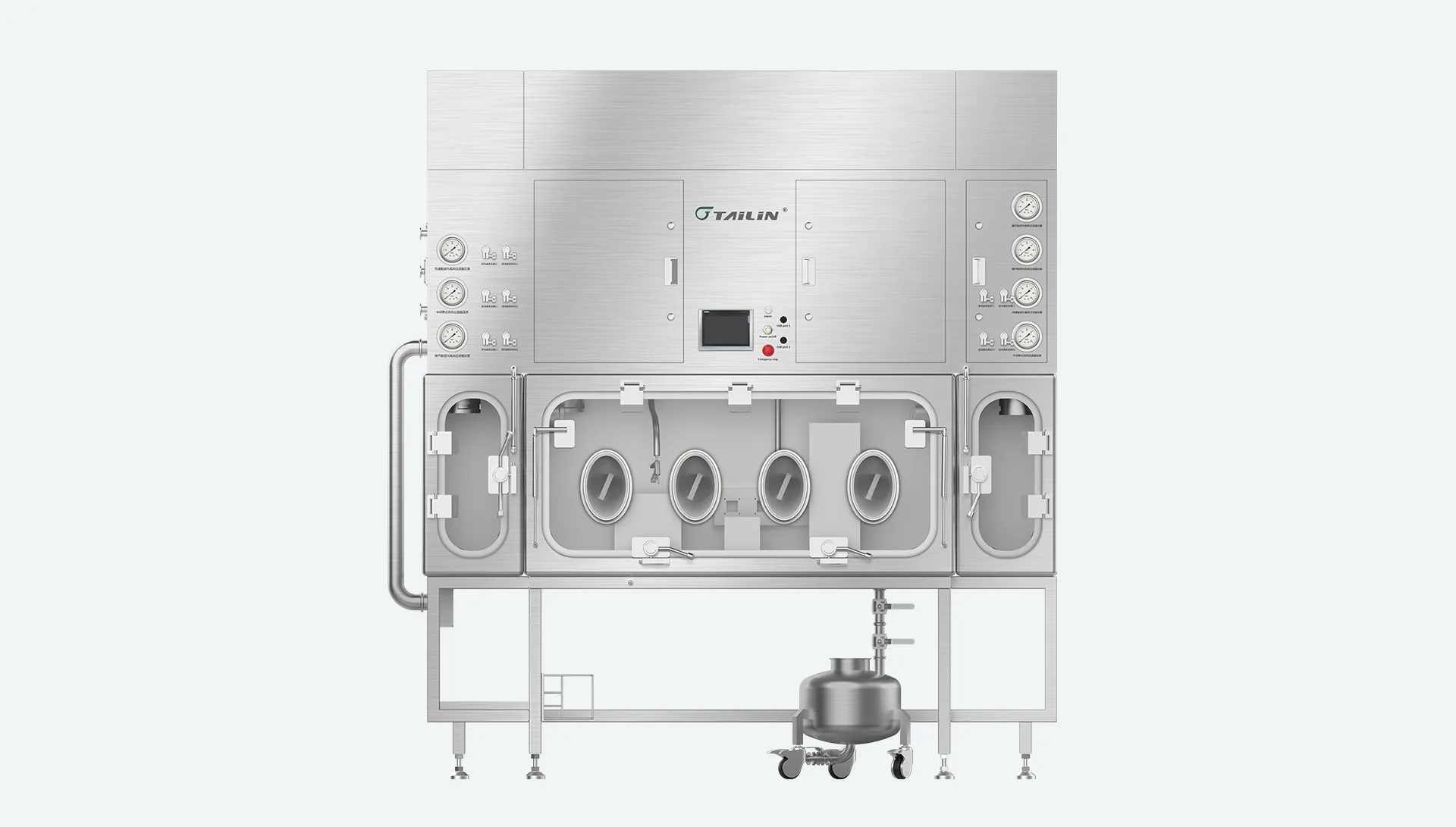

Isolator for High Activity Titration Analysis
Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. It is mainly applied in pharmaceuticals, cosmetics, bioproduct research, and physico-chemical laboratory studies. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area. This design effectively prevents cross-contamination between internal and external environments, ensuring the safety of both personnel and the surrounding environment.
| Fresh Air Supply Volume: ≥300m³/h | Operation Chamber Space (mm): 1700x750x800(L*W*H) |
| Overall Size (mm) : 2634x750x2800(L*W*H) | Net Weight : 500kg |
| Transfer Operation Chamber Space (mm): 400x500x500(L*W*H) | Power: 200V, 1.5kw(Isolator only) |
| Doors: All doors adopt mechanical press sealing; The observation window is made of 15mm thickness tempered glass,supported by gas springs, which are easy to open and close; the transfer chamber is separated from the main chamber by the inner transfer door. | It is equipped with an exhaust port on the isolator top, and the piping is connected to the outdoor |
| *This proposal is for reference only, final drawings need to be confirmed by DQ |
Used in laboratory for high activity analysis.
