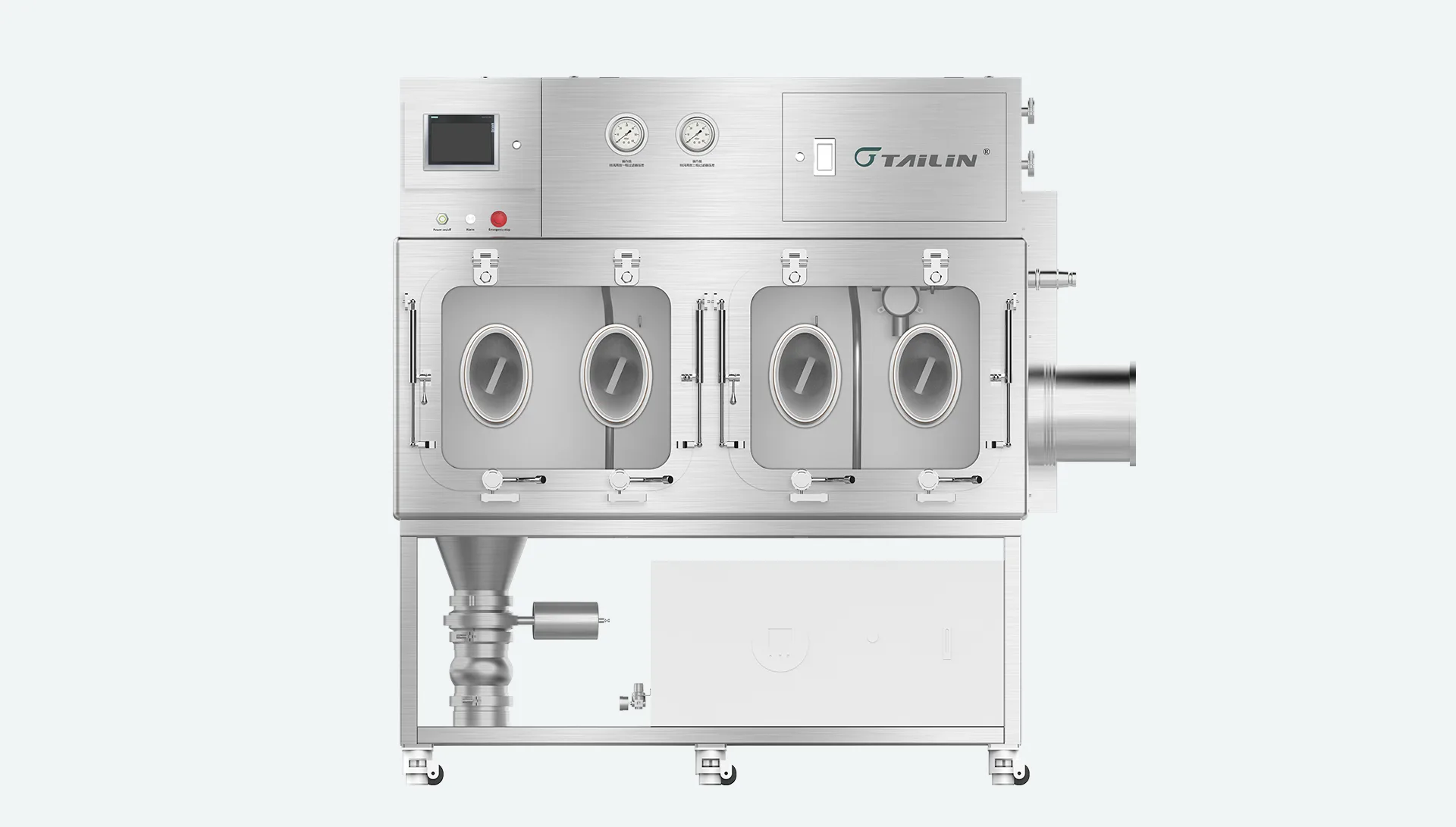

Isolator for Feeding
Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. It is mainly applied in pharmaceuticals, cosmetics, bioproduct research, and physico-chemical laboratory studies. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area. This design effectively prevents cross-contamination between internal and external environments, ensuring the safety of both personnel and the surrounding environment.
| Fresh Air Supply Volume: ≥100m³/h | Net Weight : 500kg |
| Public Utilities: Clean compressed air 0.6Mpa≤P≤0.8Mpa | Power: 380V, 1.5kw |
| Overall Size (mm): 2105x880x2000(L*W*H) | Operation Chamber Space (mm): 1800x750x800(L*W*H) |
| Doors: All doors adopt mechnical press sealing, the observation window is made of 12mm thickness tempered glass | It is equipped with an exhaust port on the isolator top, and the piping is connected to the outdoor. |
Used for feeding operations in highly corrosive environments.
