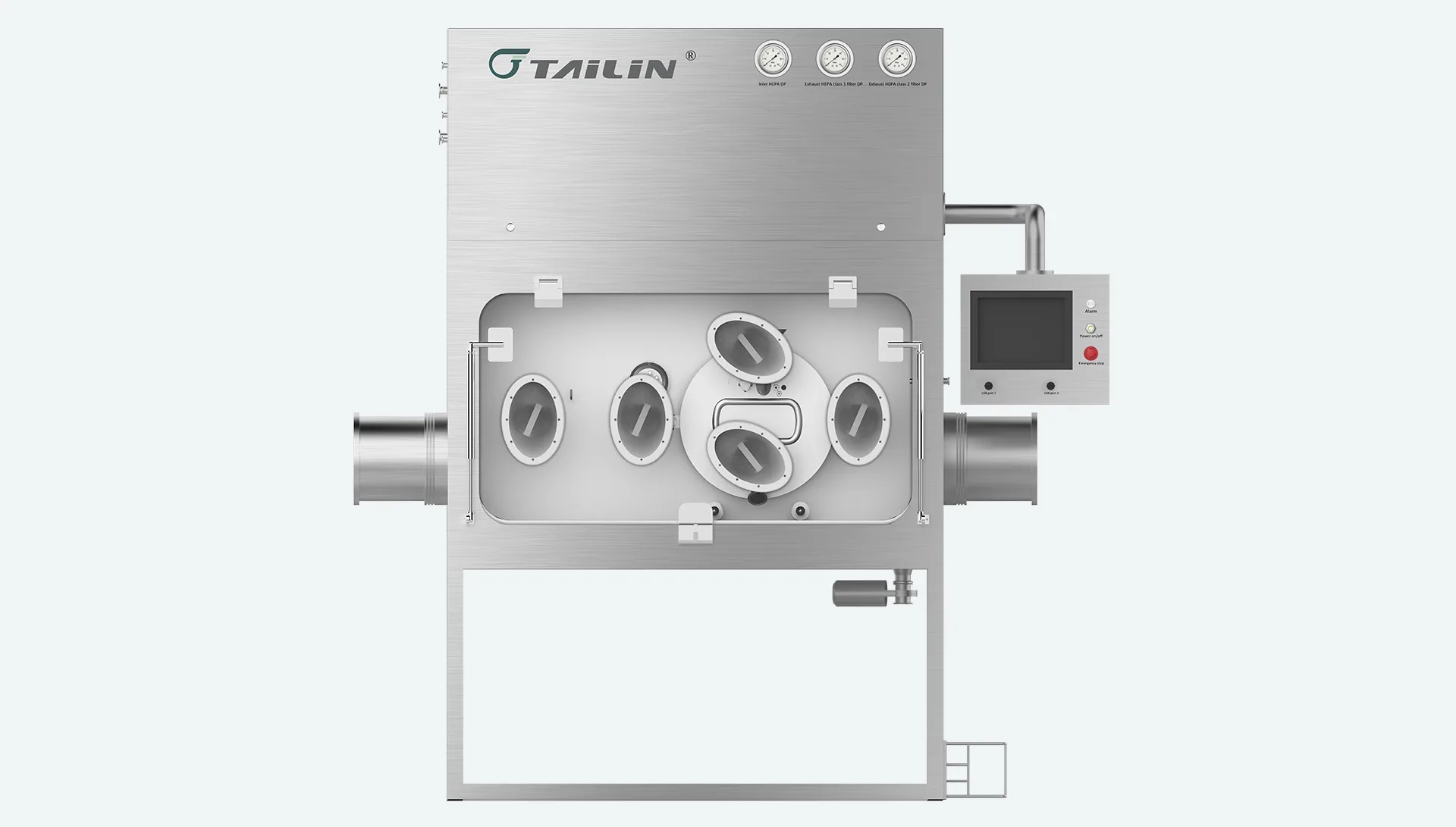

Isolator for Coating
Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. It is mainly applied in pharmaceuticals, cosmetics, bioproduct research, and physico-chemical laboratory studies. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area. This design effectively prevents cross-contamination between internal and external environments, ensuring the safety of both personnel and the surrounding environment.
| Fresh Air Supply Volume: ≥100m³/h | Operation Chamber Space (mm) : 1600x700x1000(L*W*H) |
| Public Utilities: Clean compressed air 0.6Mpa≤P≤0.8Mpa | Net Weight: 450kg |
| Overall Size (mm) :2438x960x2490(L*W*H) | Power: 220V, 3kw (Isolator only) |
| Doors: All doors are equipped with inflatable seal, the observation window is made of 15mm thickness tempered glass | It is equipped with an exhaust port on the isolator top, and the piping is connected to the outdoor or air conditioning ducts |
| *This proposal is for reference only, final drawings need to be confirmed by DQ |
Used in solid dosage form coating process.
