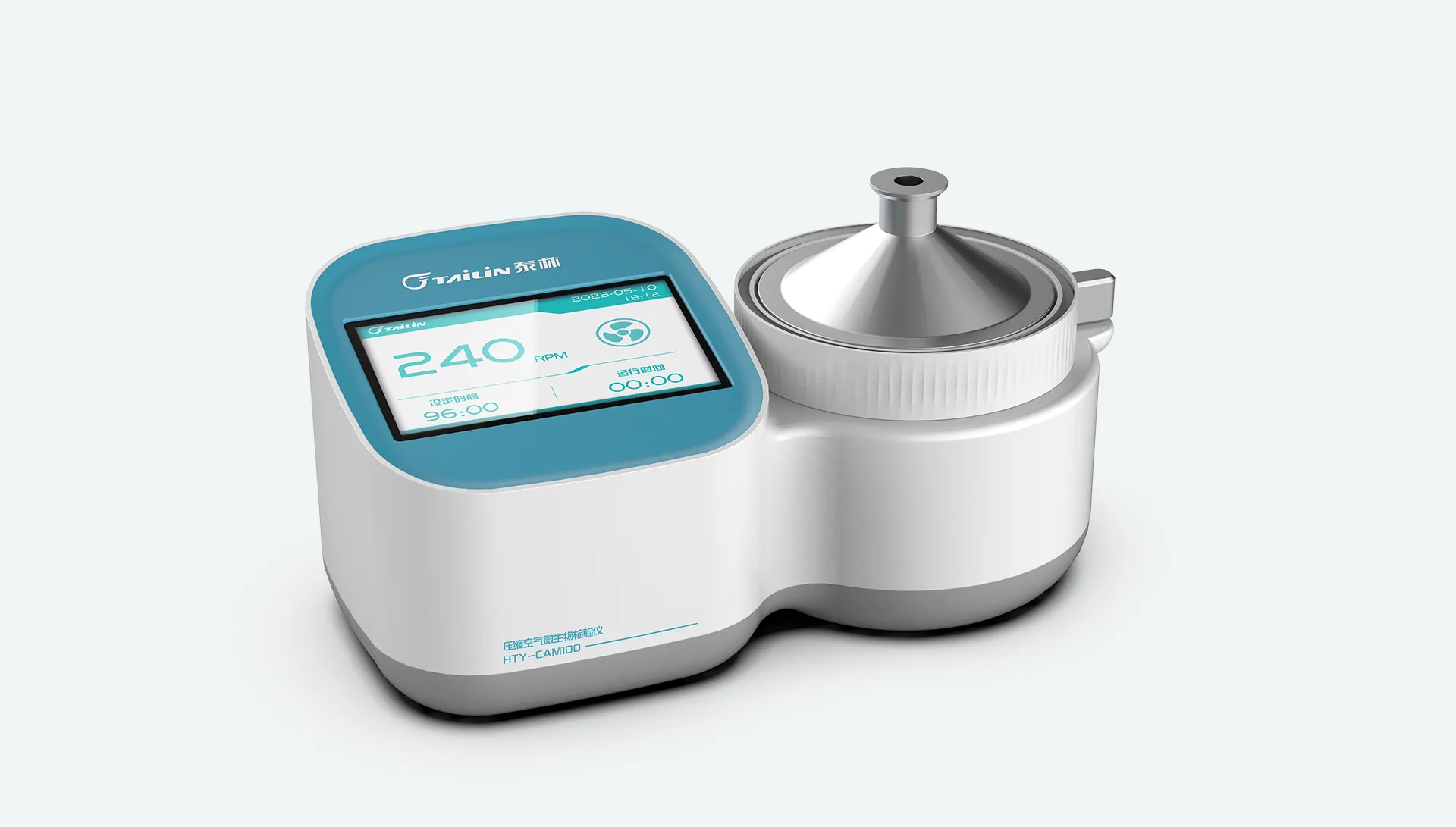

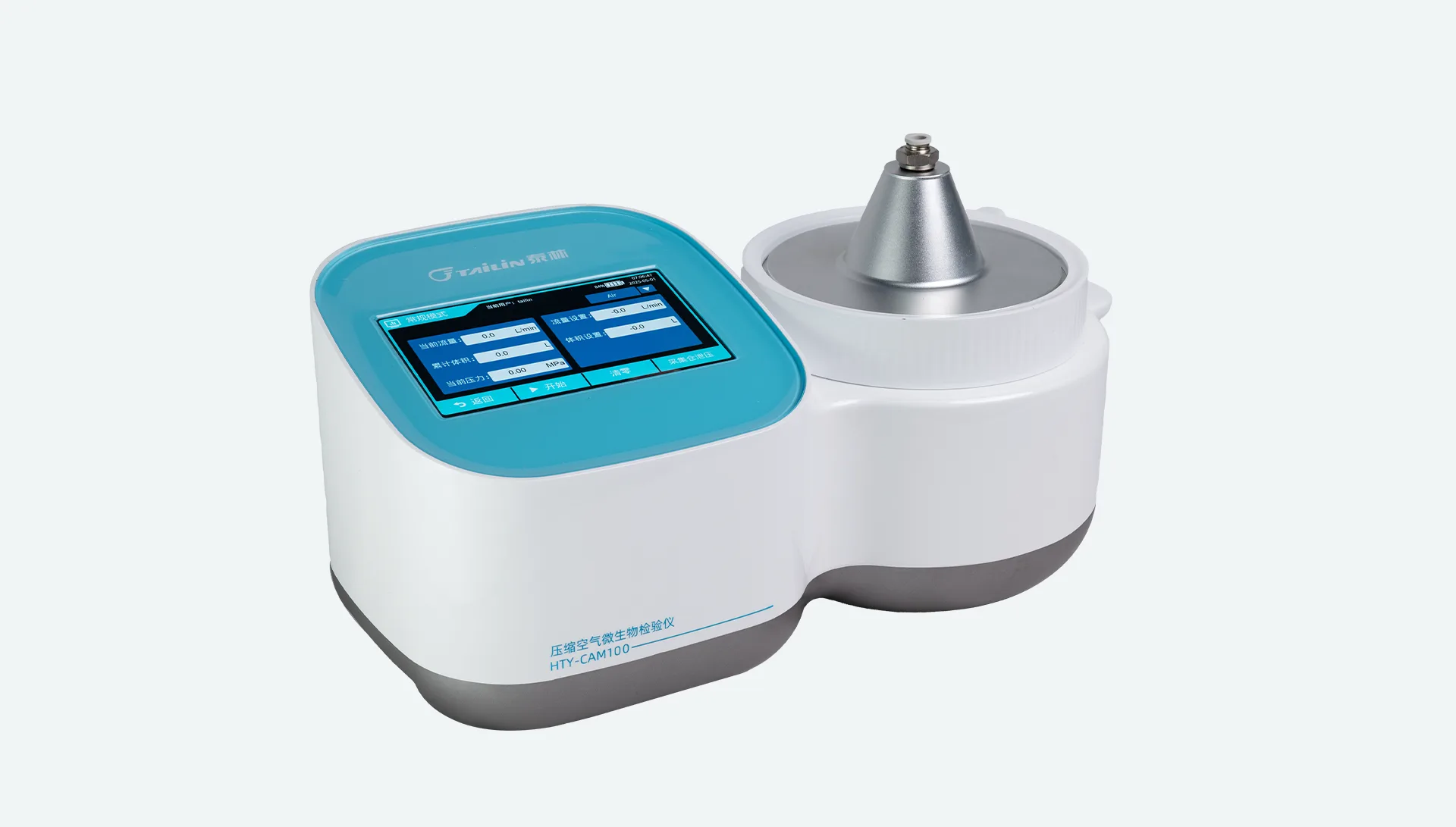

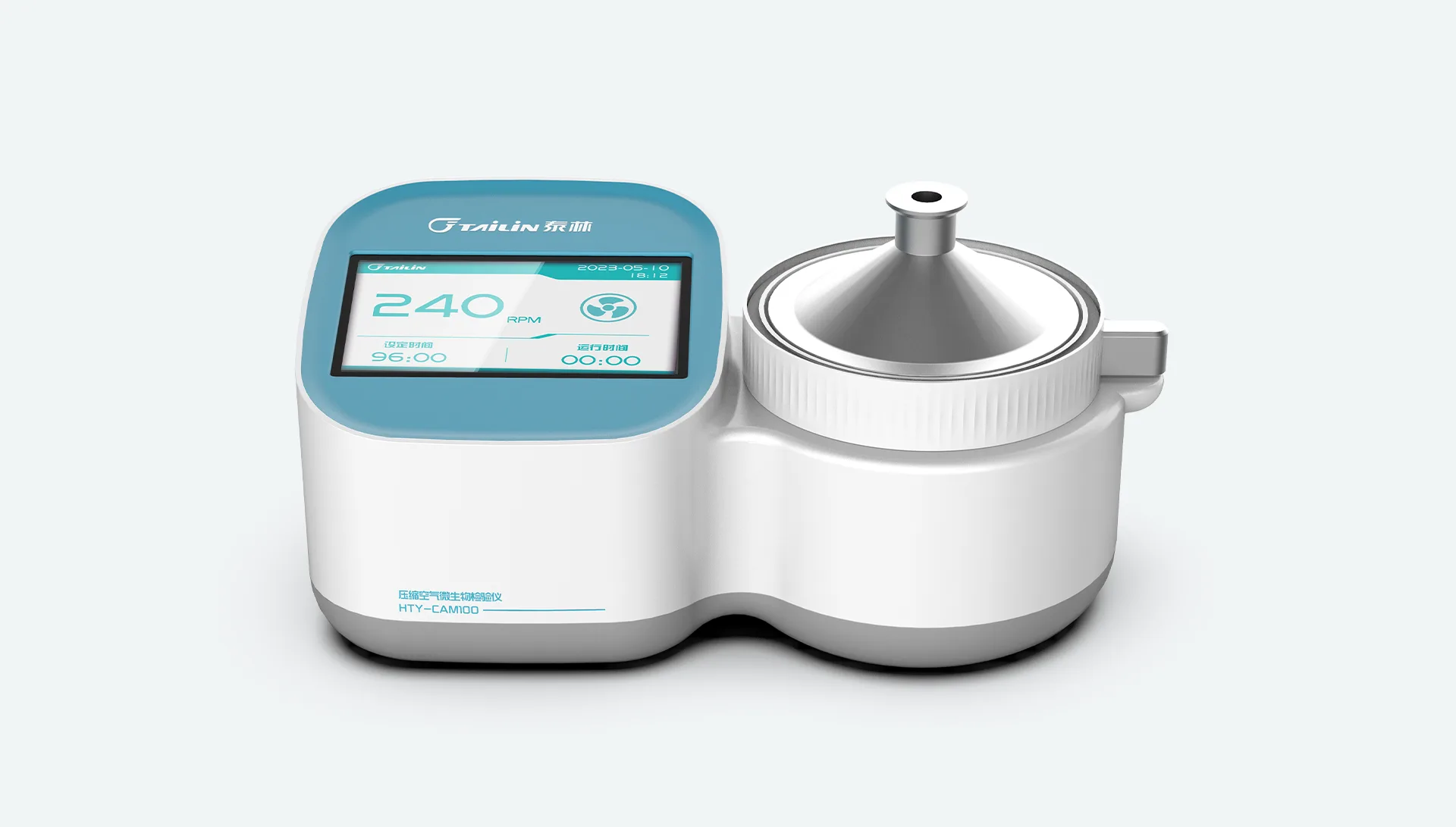

HTY-CAM100

Compressed Air Microbial Sampler

Used to detect potential microbial contamination in compressed gases

Compressed air in clean areas can be used as equipment power, packaging filling, material transportation, sealing fuel, etc. in food and drug production. Potential microbial contamination in compressed gas will not only affect the bioburden of the clean room but may also directly affect the quality of the final product. There are many methods for microbial detection of compressed gas, such as airflow impact and liquid enrichment. The detection effects of each method vary greatly, and there is no unified standard.

Tailin HTY-CAM100 uses the pressure-maintaining impact method to capture microorganisms in compressed gas. After cultivation, it can effectively detect microorganisms and solve the problem of compressed gas microbial detection.

Compact size, built-in battery, portable and easy to use

Sanitary quick-connect ports for easier detection connections

Independent locking mechanism for safer testing

Features

  • Fully automatic pressure detection and automatic pressure relief design for better instrument protection.
  • LCD screen, comprehensive display, easy operation.
  • Adaptive petri dish holder compatible with various petri dishes.
  • Filtered exhaust or connection to piping for collection, preventing secondary pollution.
  • Customizable settings for fixed flow rate and sampling volume.
  • 2000 groups of test data storage capacity.
  • Three-level password permission management to ensure data security.
  • Tamper-proof data export: Device can export test data via USB to a computer.
  • Optional barcode scanning function for one-to-one correspondence between culture results and test data.

Specifications

Instantaneous Flow Rate Range: 20~200 L/min, customizable Pressure Range: 0.1~0.8MPa
Cumulative Flow Rate Range:1~9999 L, customizable Media: Compressed air, nitrogen, nitrogen dioxide, and other inert gases
Power Supply: AC220V/50Hz Media Temperature: 0~40℃
Dimensions: 435x210x240mm(LxWxH) Battery Life: ≥12h
Weight: 8.5kg Display Screen: 7-inch color touch LCD screen

Applications

Tailin Bioengineering

Pharmaceuticals

Tailin Bioengineering

Food & Beverage

Tailin Bioengineering

Disease Control
