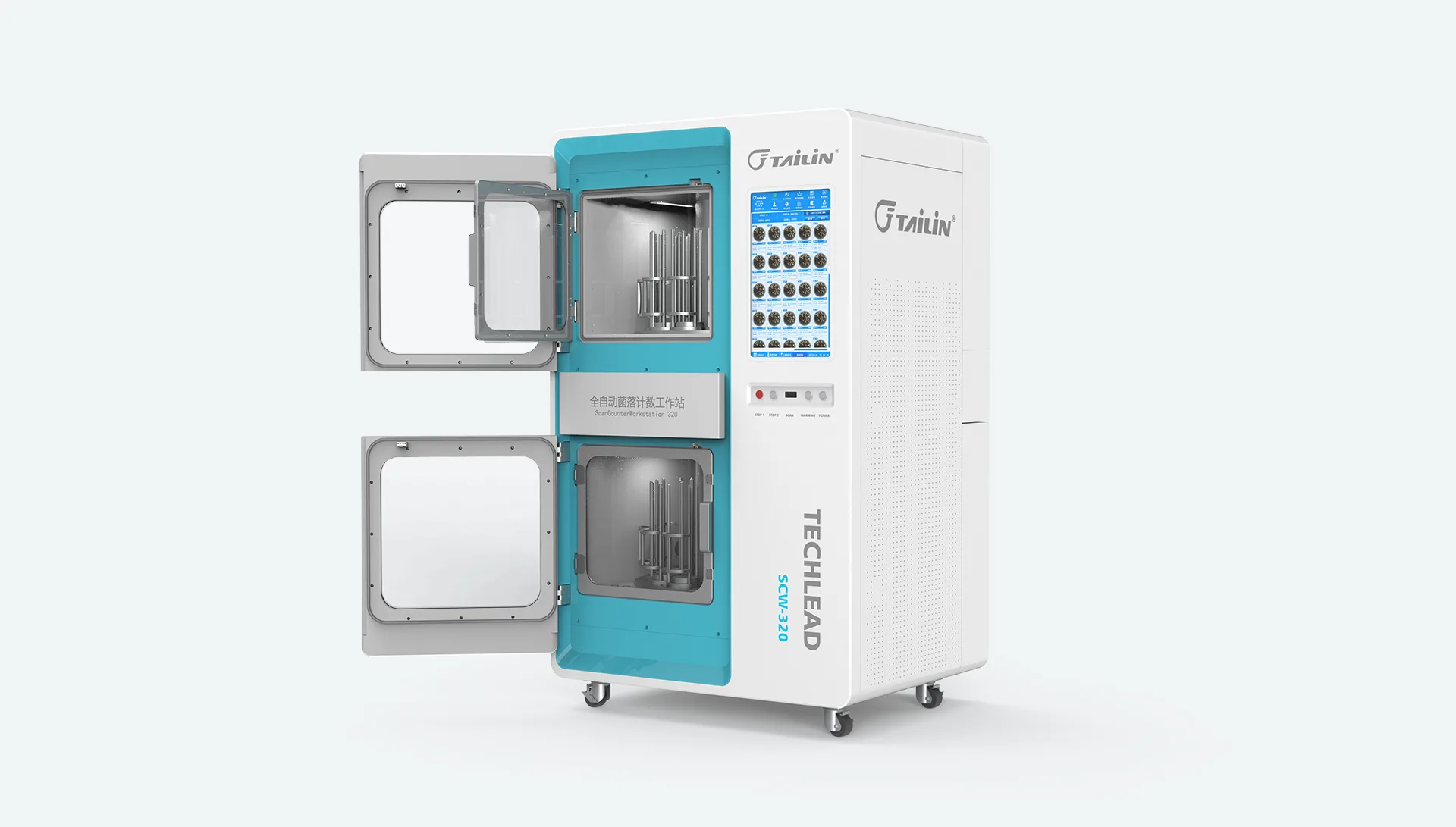

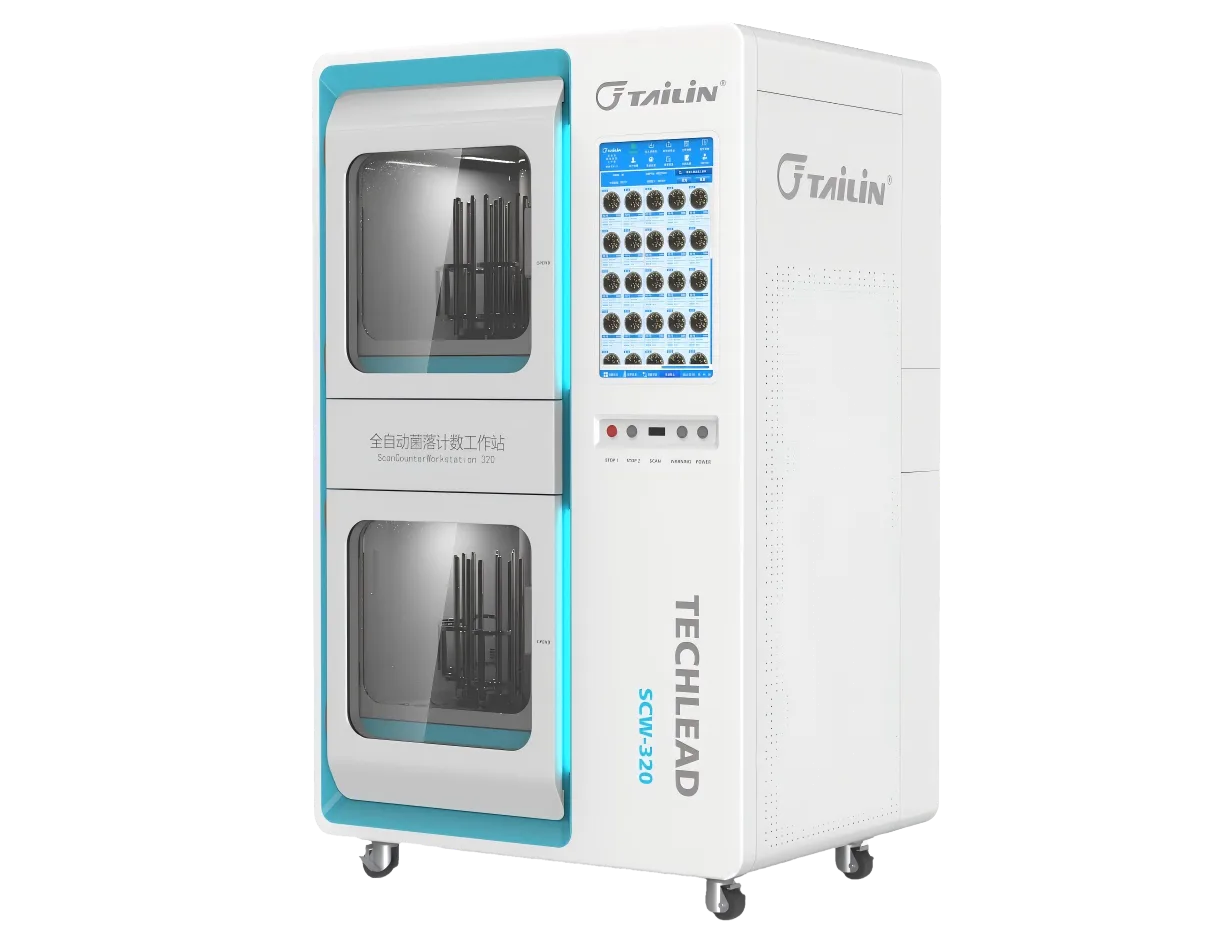

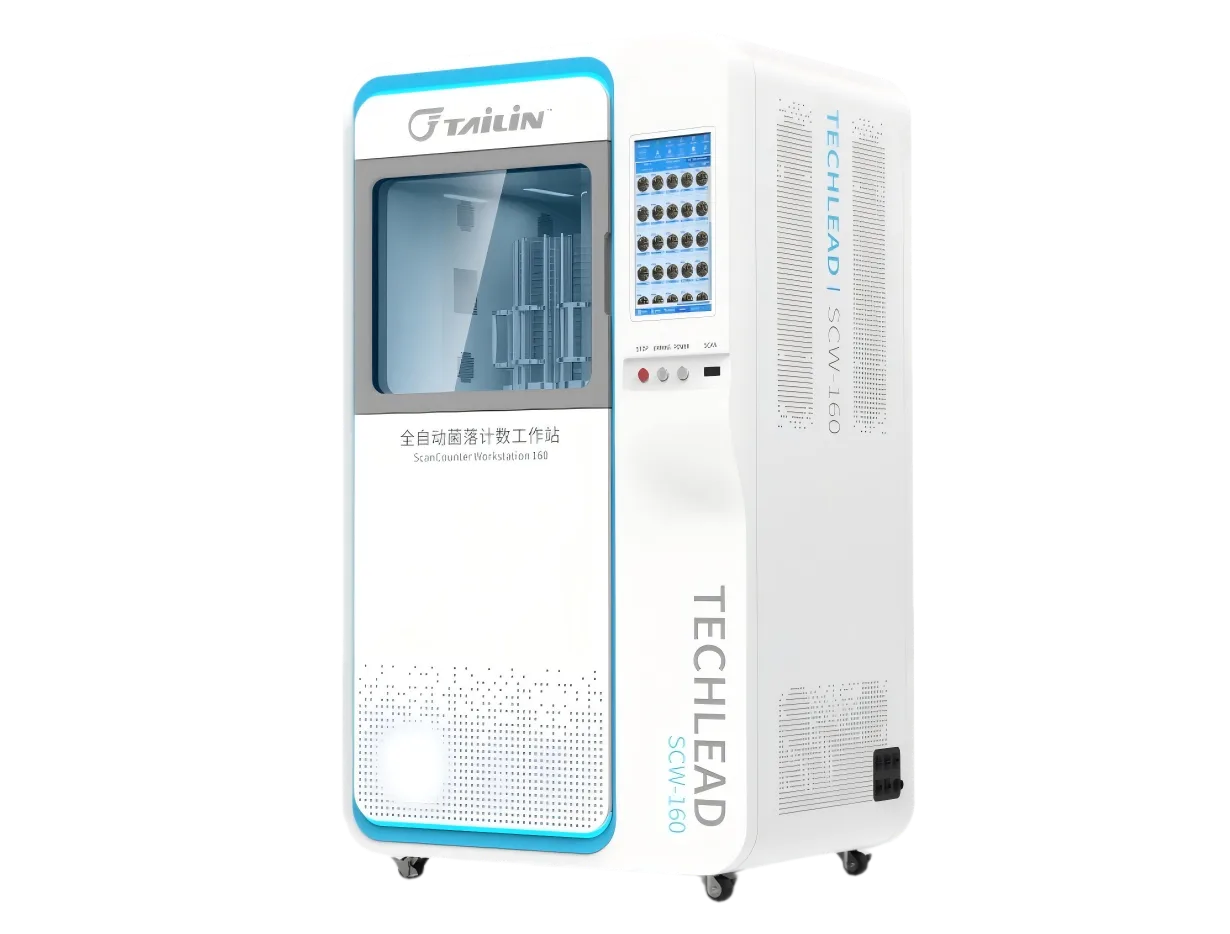

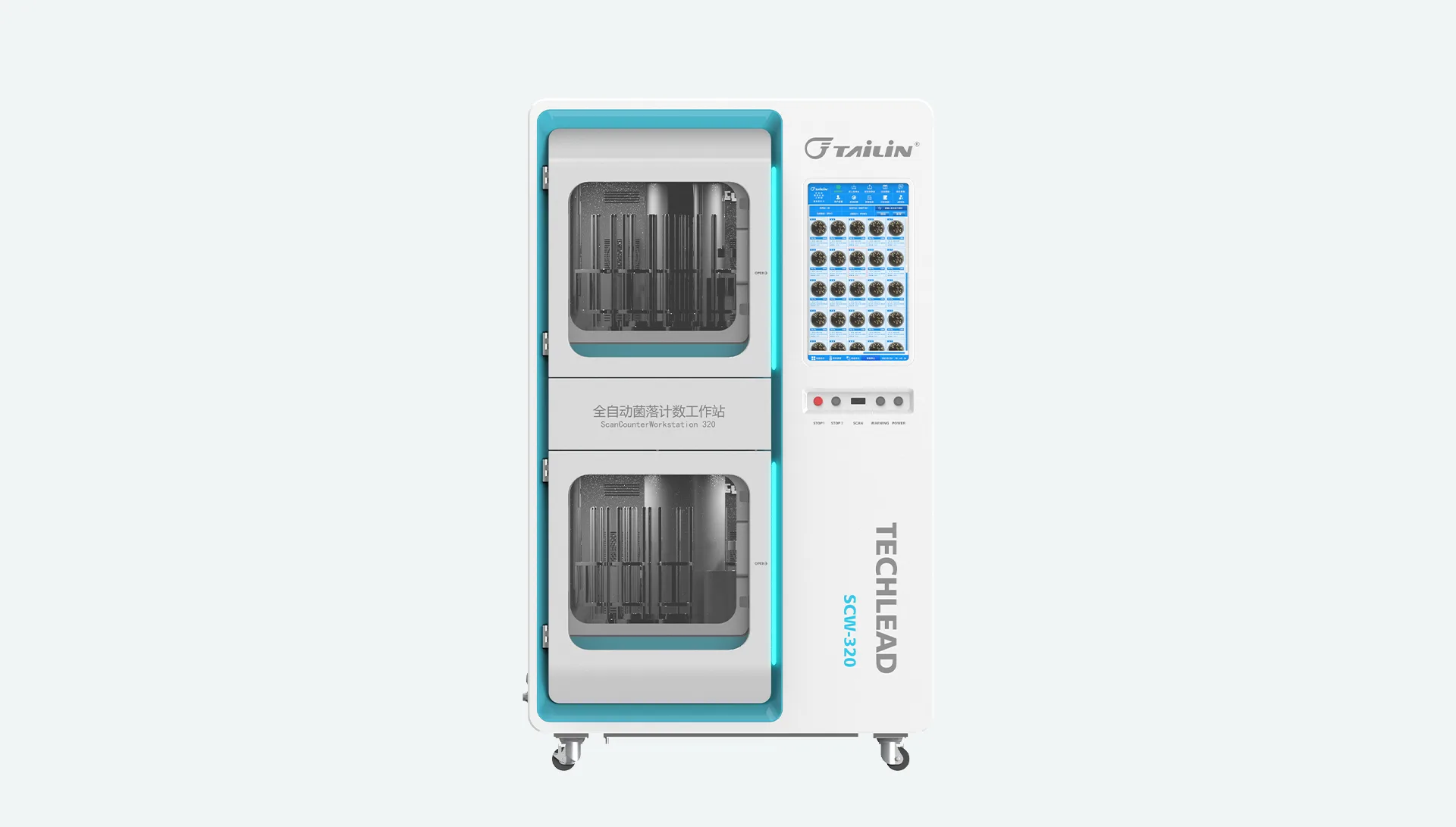

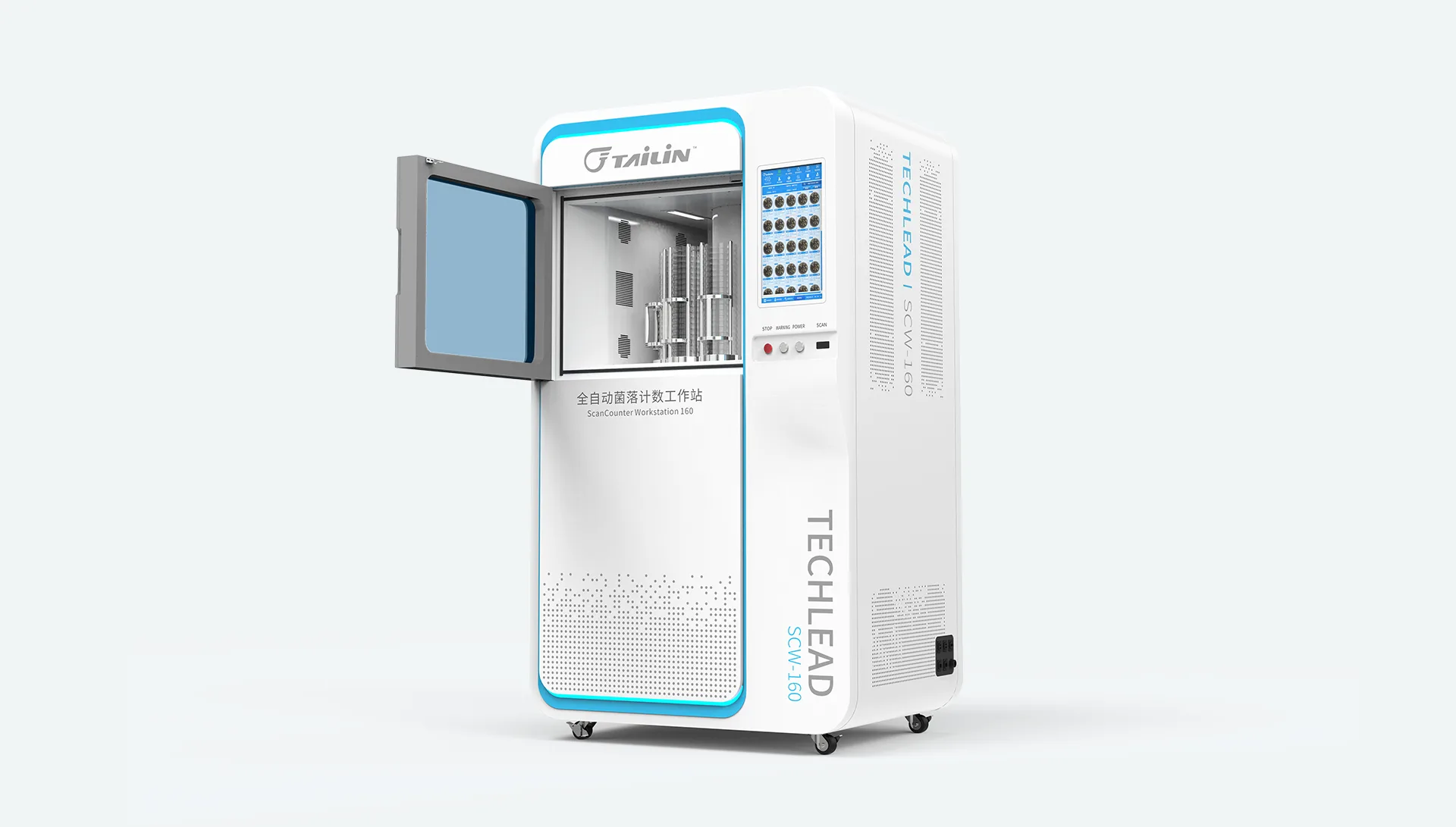

The automatic Colony Counter Workstation, SCW 160Pro/320Pro, is a real-time microbial incubator and colony counting system integrated with automatic incubation, detection, and counting.
The system, based on a proprietary high accuracy AI intelligent algorithm that detects the dynamic colony growth and morphological changes, use computer vision and neural network technology to achieve batch plate incubation and obtain accurate colony counting results.
Tailin Automatic Colony Counter Workstation can be widely used in biopharmaceuticals, medical and health care, inspection and quarantine, food safety, life sciences, air quality monitoring and water quality monitoring, etc.
| Model | SCW-160pro | SCW-320pro |
| Incubation Information | ||
| Max. Capacity | Up to 160 petri dishes incubation and counting | Up to 320 petri dishes incubation and counting |
| Incubation Chamber | Single chamber | Dual chambers (Independent temperature setting) |
| Plate Size | Ø90mm/Ø55-65mm,adapter required | |
| Plating Method | Spreading, pouring, passive setting, filtration, surface contacting | |
| Interval Between Sample Scannings | 1h | |
| Max. Incubation Time | 240h | |
| Temperature Range | 15℃-45℃ | 20℃-45℃ |
| Temperature Uniformity | Temperature monitored at 27 locations, with a tolerance of ±0.7℃ | |
| Environmental Temperature | 20℃-26℃ | |
| Max. Environ Mental RH | 70% | |
| Temp./RH Monitoring | Once per minute | |
| Message Notification | Notified/alerted through email | |
| Specification | ||
| Dimension | 950 x 750 x 1720mm | 1100 x 900 x 1820mm |
| Weight | 250kg | 400kg |
| Operating Noise | ≤75dB | ≤75dB |
| Power Supply | 220V, 50Hz | |
| Max. Power | 1500W | 2000W |
The workstation utilizes a high-accuracy AI intelligent algorithm based on computer vision and neural network technology. It performs continuous real-time detection throughout the incubation cycle, allowing it to analyze dynamic growth and morphological changes. This “Multi-temporal Phase Alignment” and “Edge Analysis” technology enables the system to automatically segment merged colonies, identify colony outlines, and distinguish colonies from impurities or plate edges.
The workstation consists of four primary hardware modules designed for automated microbial analysis:
The HMI is an integrated intelligent interface designed for comprehensive sample management and real-time monitoring through four key functional areas.
The system is designed to meet strict data management standards by incorporating three-level user access permissions, electronic signatures, and comprehensive audit trailing. To ensure the integrity of the results, the system outputs colony growth curves and saves a full video of the microbial growth process, making every result fully traceable and verifiable.
