Home > Microbial Limit Tester > Microbial Limit Tester

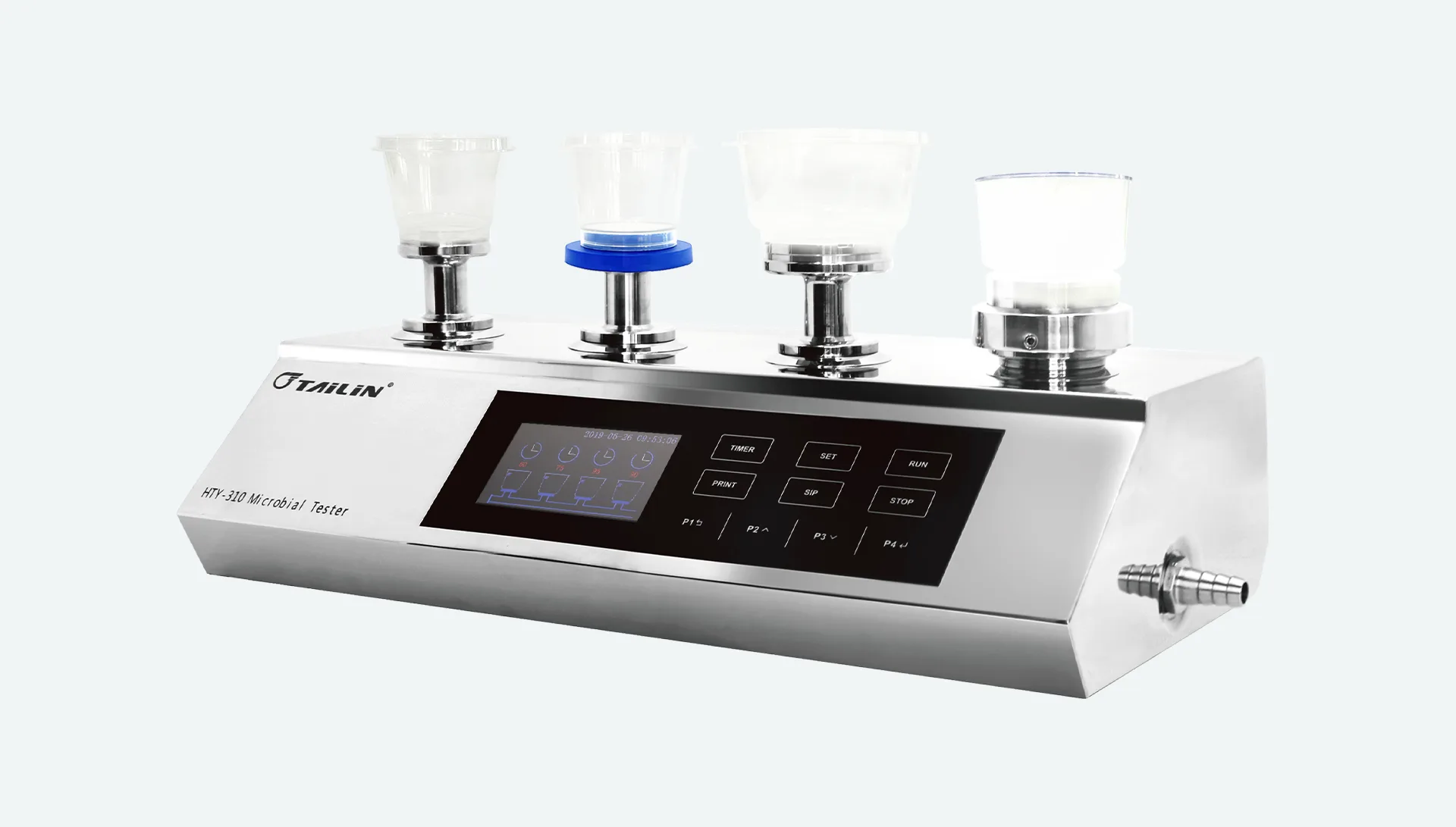

HTY-310

Microbial Limit Tester

Four pump heads, built-in SIP automatic disinfection program

Introduction

Features

Specifications

Applications

Inquiry

The HTY-310 Microbial Limit Tester is a specialized device designed according to pharmacopeia requirements. It features four pump heads, SIP sterilization, high-performance diaphragm pump, and direct waste discharge. By using different pump heads with funnels or canisters, it forms a complete membrane-filtration setup. During testing, the sample is filtered to retain microorganisms on the membrane, which are then cultured into visible colonies for counting to determine microbial levels.

Uses a 32-bit ARM Microcontroller, high performance processor, digital control display and operation

Test results could be printed, user-friendly recording and management

Multiple Pump Heads Options, compatible with various consumables, quick assembly and disassembly, and capable of steam sterilization

Features

  • Color LCD screen with tempered glass touch panel.
  • Built-in SIP automatic disinfection program.
  • Countdown running function, different pump head can be set for different running times.
  • Four types of pump heads are freely selectable, and the pump heads are resistant to 121°C moist heat sterilization.
  • The pump head can be quickly sterilizedwith a flame gun for continuous experimental operation.
  • Built-in diaphragm pump, direct drainage, no need for filter bottles.
  • Built-in check valve to eliminate backflow and prevent contamination.

Specifications

Power: AC220V/50Hz Flow rate: 1500mL/min (single pump)
Consumables: S60 filtration funnel, F47/F60/F47B Noise: ≤65dB (A) (under load)
Dimensions: 500X260X120mm Body Material: 316L Stainless Steel
Weight: 13kg (with PF47, PB47 ) / 14kg (with PF60 ) / 15kg (with PS60)

Applications

Microbial Limit Testing is used to determine whether a non-sterile pharmaceutical product complies with an established specification for microbial quality.
Tailin Bioengineering

Pharmaceuticals

Microbial limit testing of purified water, water for injection, and other drugs and preparations.

Tailin Bioengineering

Food & Beverage

Total colony count in beverages, mineral water, and purified water.

Tailin Bioengineering

Disease Control

Total bacterial count and pathogen detection in water samples such as air-conditioning condensate and drinking water.
