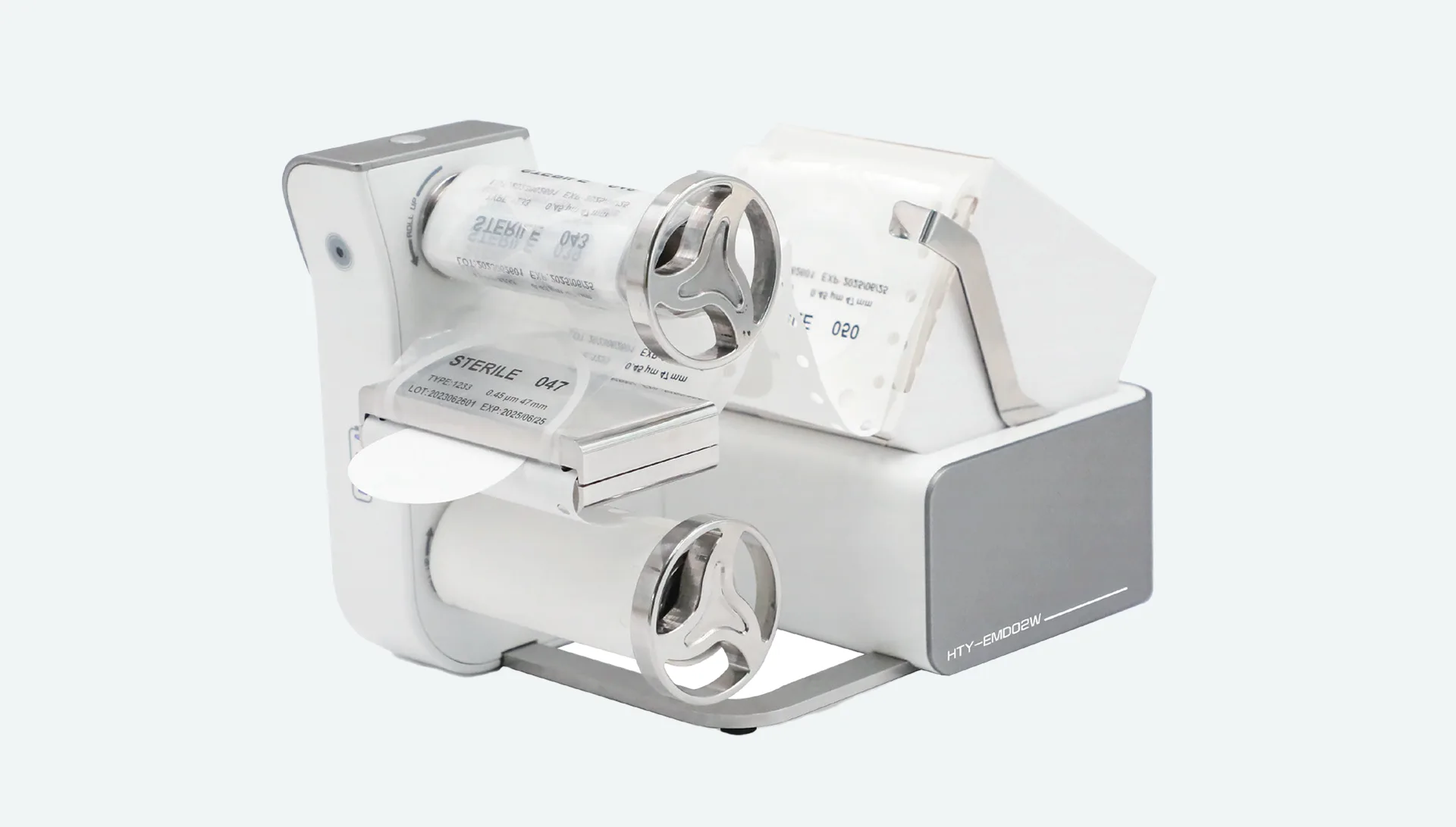

Membrane Dispenser

Built-in infrared sensor, automatic dispensing of filter membranes

Introduction

Model

Features

Specifications

Applications

Inquiry

The Membrane Dispenser is used in conjunction with Tailin Membrane Filters.

Long battery life, supporting membranes can be dispensed continuously

Large capacity: High-speed sterile membrane dispensing

High motion positioning accuracy, long life and high reliability

Model

HTY-EMD02

HTY-EMD02W

Features

Compact size takes up less space on the operating table.
Patented design with two modes of operation at the same time.
Built-in infrared sensor, automatic dispensing of filter membranes can be realized by hand sensing.
Membrane can also be dispensed with the push of the top button.
Long battery life, supporting membranes can be dispensed continuously.
High motion positioning accuracy, long life and high reliability.
316L metal drive roller shaft, anti-sterilizing wipe, anti-oxidation.
Large capacity: High-speed sterile membrane dispensing.

Specifications

Material: ABS shell + 316L roller	Power Supply: Lithium battery
Sensing Distance: 0~20mm	Running Time: 35 hours
Sensing Distance Adjustment: 0~150mm	Charging Time: 3 hours
Sleep Mode: Automatically enter into sleep after 2 minutes of stop, infrared sensor/button wake-up	Speed: Average 1 membrane/s

Applications

For Membrane Filters:

In microbiological testing experiments, the automatic dispensing of sterile, individually packaged filter membranes eliminates the need to manually separate the protective paper and the membrane, simplifying the membrane operation process, reducing the possibility of membrane contamination during human operation, and enabling rapid membrane retrieval, thereby improving experimental testing efficiency.
