CellScan/Cytoimage

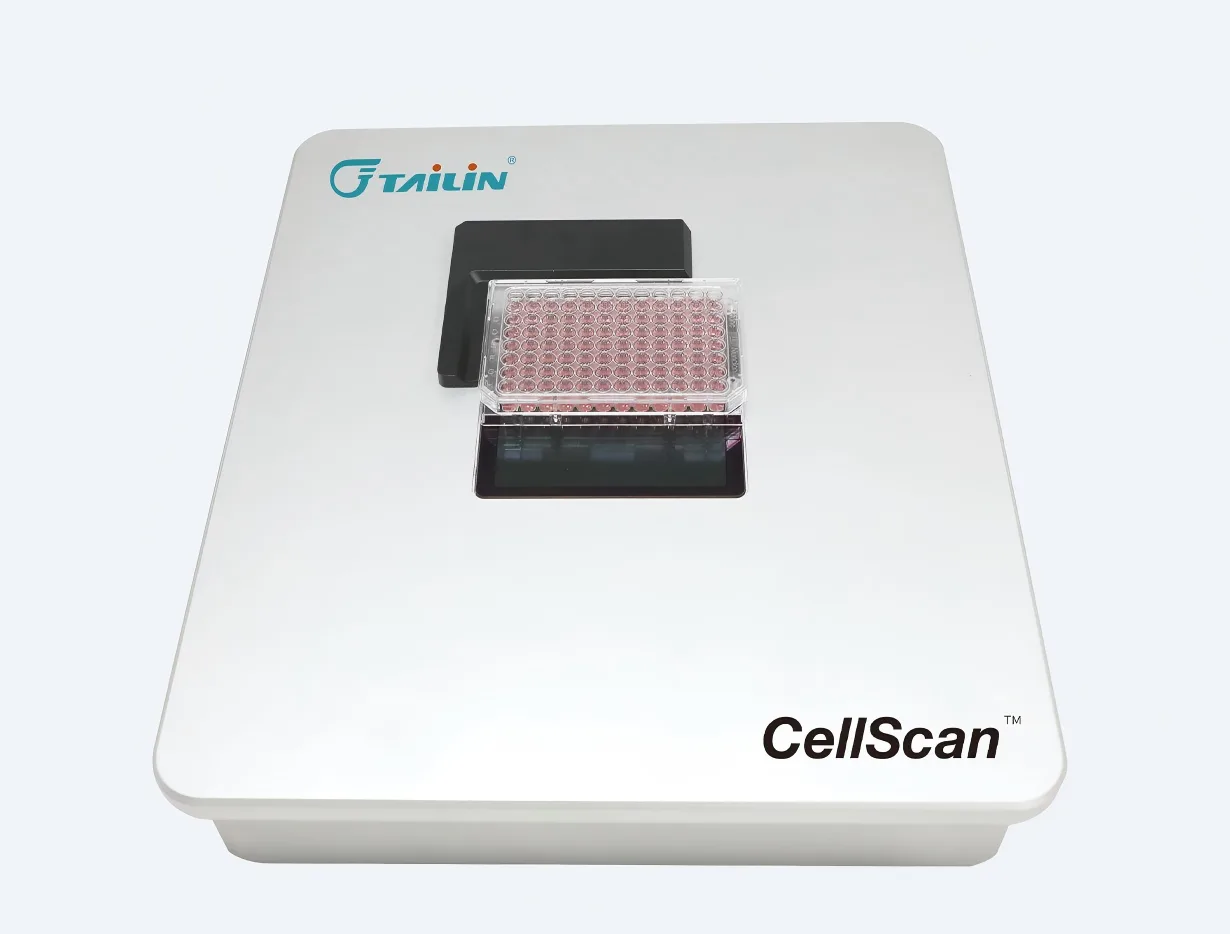

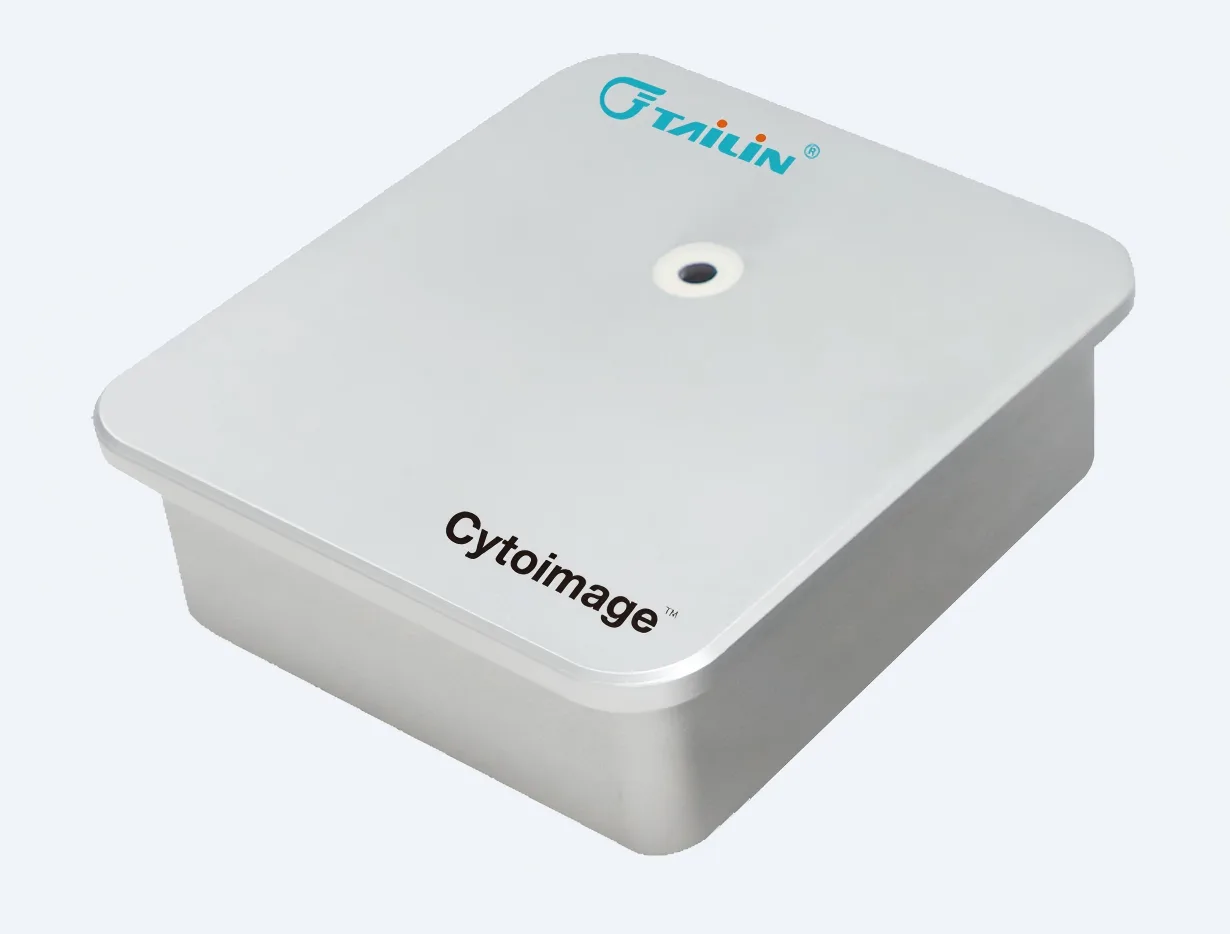

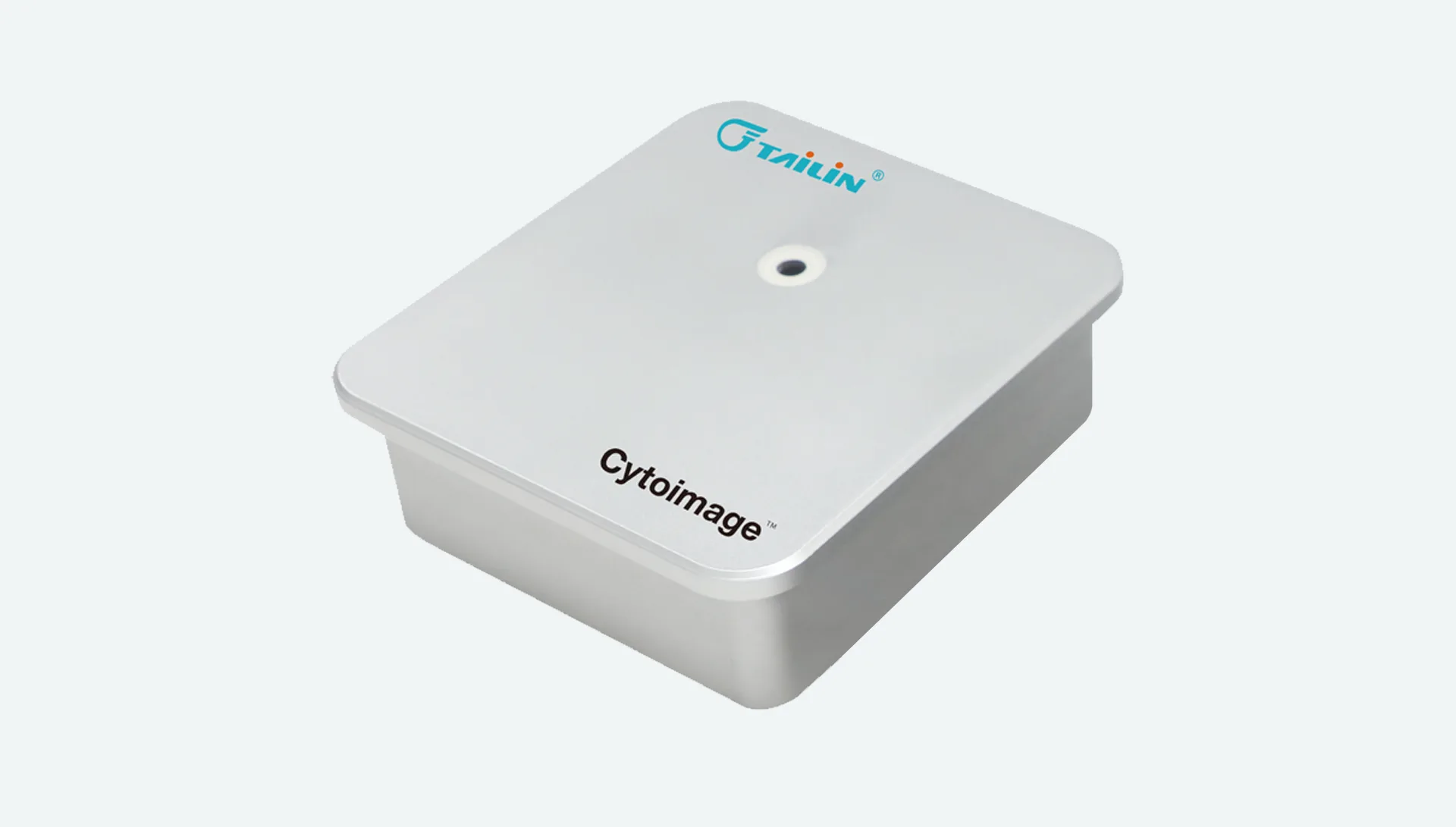

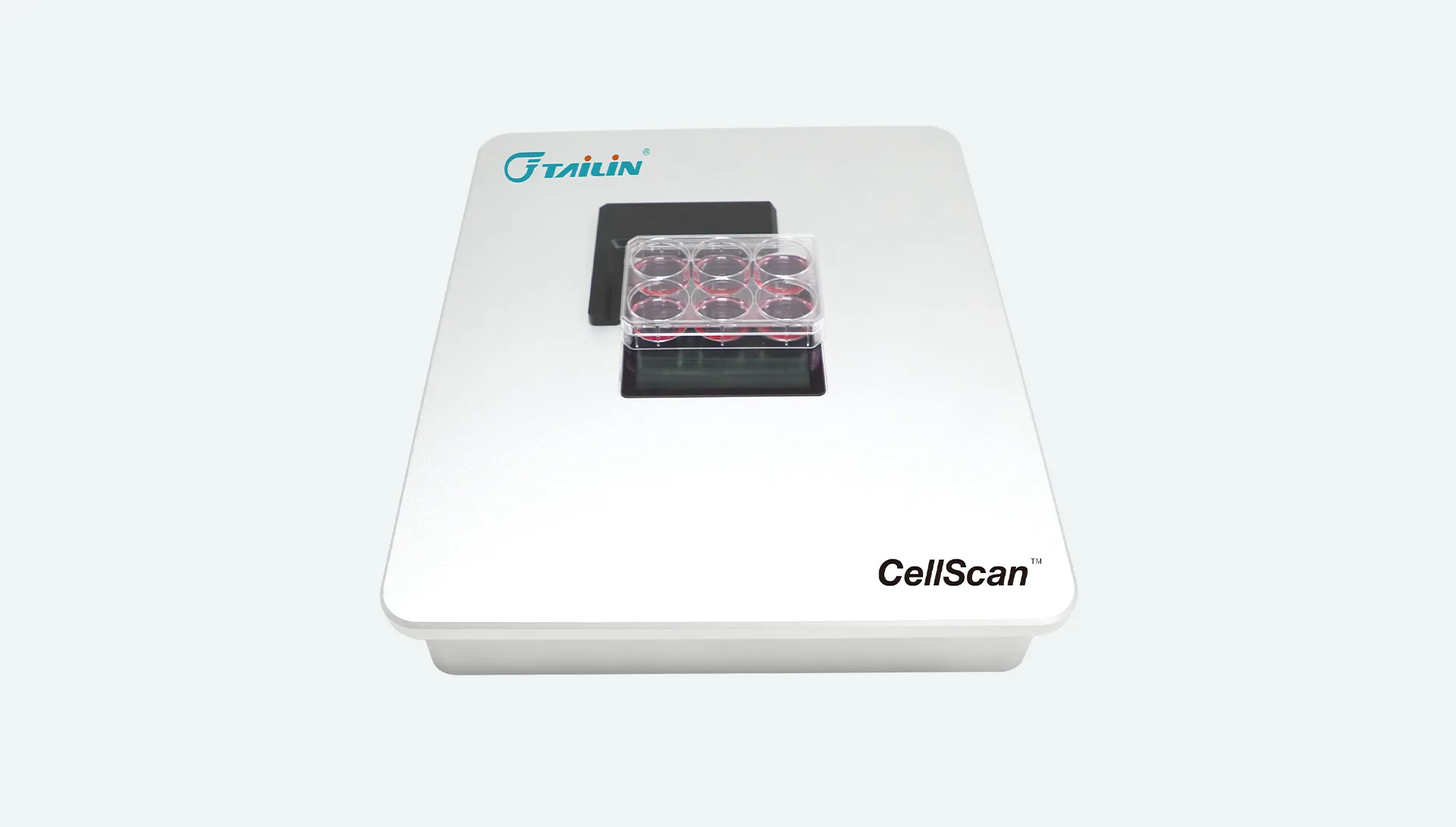

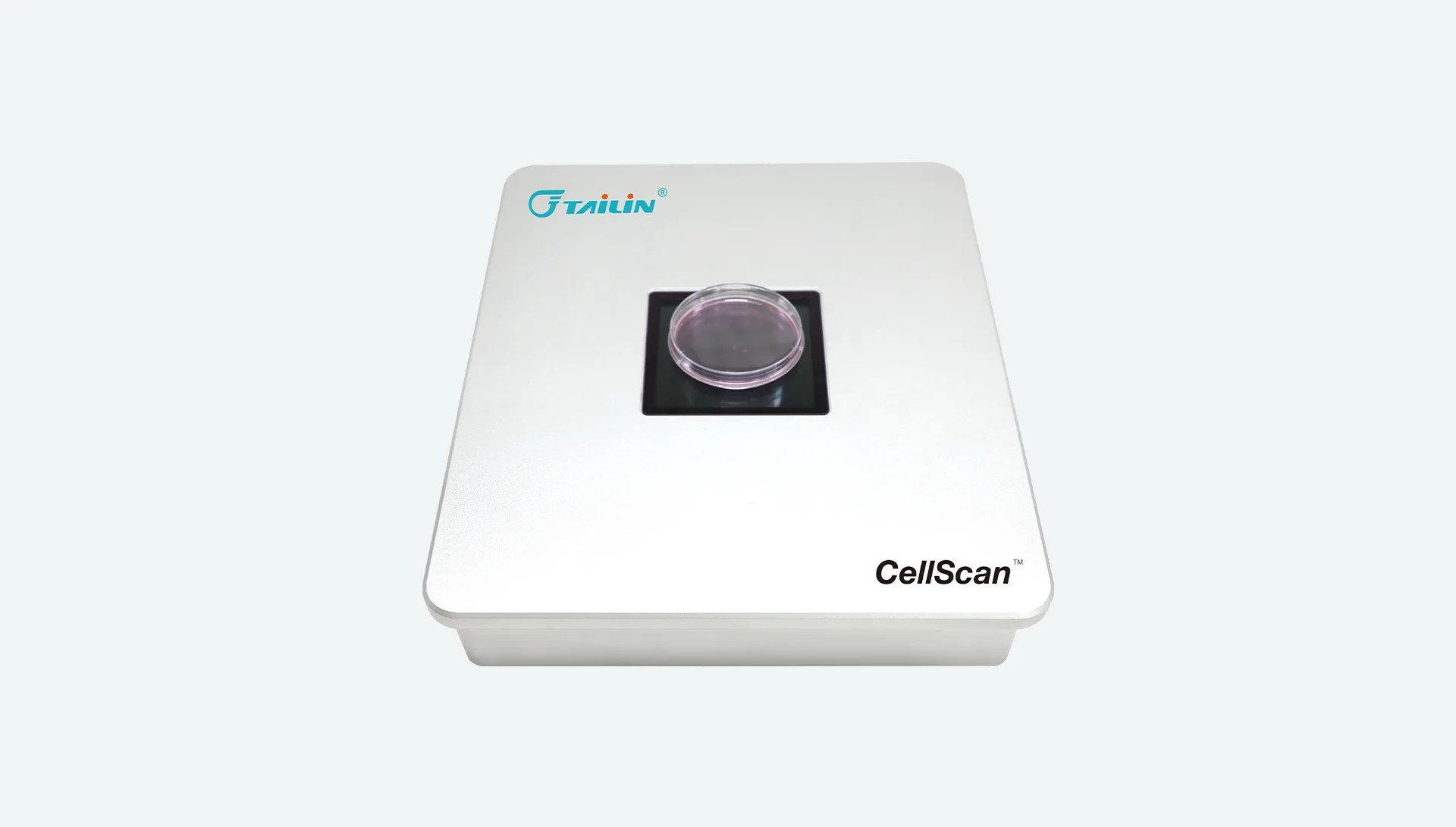

CellScan (mobile version) and Cytoimage (single-point version) Live Cell Imaging Systems are real-time, quantifiable live cell imaging and analysis platforms designed for use within incubators. These systems enable remote monitoring of cell growth and acquisition of quantitative cell culture data. Users can set custom projects, and the system will periodically scan cultured cells, calculate cell numbers, and determine confluence. Cell growth data is automatically saved to the cloud, allowing researchers to monitor cell status at any time without entering the cleanroom.
| CellScan | Cytoimage |
| Operating Environment: Temperature:37±0.3℃; Humidity 0-99% | Operating Environment: Temperature:37±0.3℃; Humidity 0-99% |
| Dimensions: W370×D440×H84(mm) | Dimensions: W210×D225×H80(mm) |
| Weight: Approx.12.25kg | Weight: Approx. 3.25kg |
| Compatible Containers: Cell culture dishes(90 mm,100 mm) Well plates(6-well,12-well,24-well,48-well,96-well) Culture flasks(T25,T75,T80,T150,T17,T225) Multi-layer culture flasks |
Compatible Containers: Cell culture dishes(90 mm,100 mm) Well plates(6-well,12-well,24-well,48-well,96-well) Culture flasks(T25,T75,T80,T150,T17,T225) Multi-layer culture flasks |
| Illumination Wavelength: λ=630 nm | Illumination Wavelength: λ=630 nm |
| Illumination Method: Phase contrast reflective illumination | Illumination Method: Phase contrast reflective illumination |
| Magnification: 10X | Magnification: 10X |
| Capture Size: 100×100(mm) | Capture Size: 7.2×5.2(mm) |
| Field of View: 7.2×5.2(mm) | Field of View: 7.2×5.2(mm) |
| Image Size: 2880×2064 pixels | Image Size: 2880×2064 pixels |
| Sterilization Resistance: Vaporized hydrogen peroxide sterilization,UV sterilization,alcohol disinfection | Sterilization Resistance: Vaporized hydrogen peroxide sterilization,UV sterilization,alcohol disinfection |
| Cell Analysis: Cell confluence, cell counting | / |
| Data Statistics: Growth curve, doubling time curve | / |
| Data Export: Image files,video files*,CSV files | Data Export: Image files,video files*,CSV files |
