Home > Enzyme Substrate Method > Automatic Counter for Enzyme Substrate Test

HTY-ESAC100

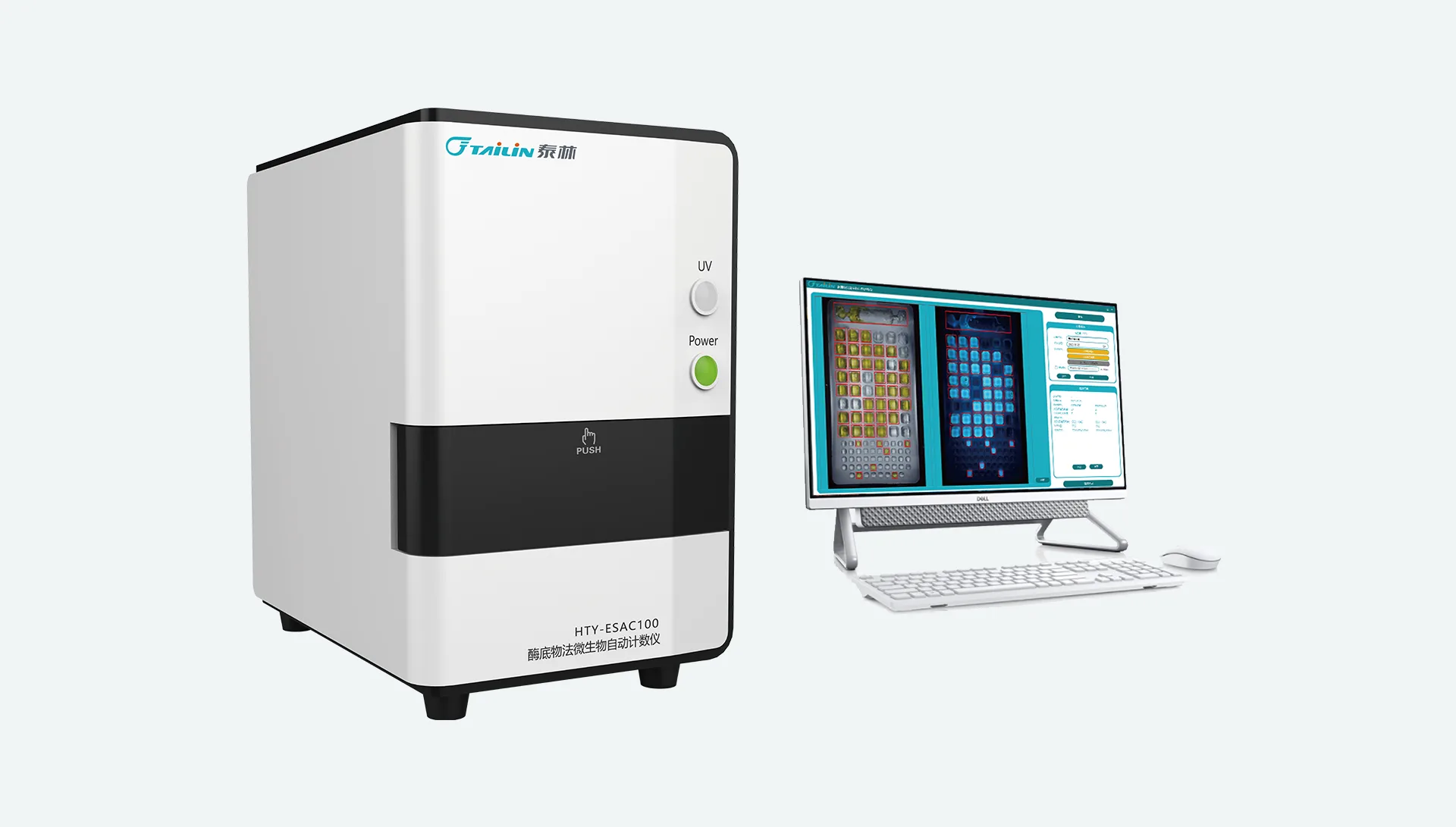

Automatic Counter for Enzyme Substrate Test

The HTY-ESAC100 Automatic Counter is designed for the Enzyme Substrate Test.

Automatic Operation

Quick Counting Completion

Audit Trail and Electronic Signature

Features

Automatic Operation:

It enables automatic detection and is compatible with 51-well, 97-well, and 84-well quantitative trays, meeting the detection needs for microorganisms like coliform bacteria, total bacterial colonies, Pseudomonas aeruginosa, and enterococci.

Quick Counting Completion:

It adopts AI intelligent algorithms and standardized procedures to automatically identify and track positive wells in quantitative trays, and generate results within 10s, reducing manual reading errors.

Audit Trail and Electronic Signature:

+ Provides informatization management interfaces such as electronic signature, supports customized report templates, and automatically archives data.
+ Can quickly query detection results by date, save and export relevant reports.
+ Can set management permissions to prevent data leakage or misoperation,
complying with the three-level management permissions for GMP users.

Details:

  • 1 plate × 3 types of Quantitative Trays.
  • Inclined angle design reduces bubbles in empty wells.
  • High-quality slide rails with over 500,000 cycles of service life.
  • Waterproof design prevents accidental splashing of water samples from
    the 84-well Quantitative tray.

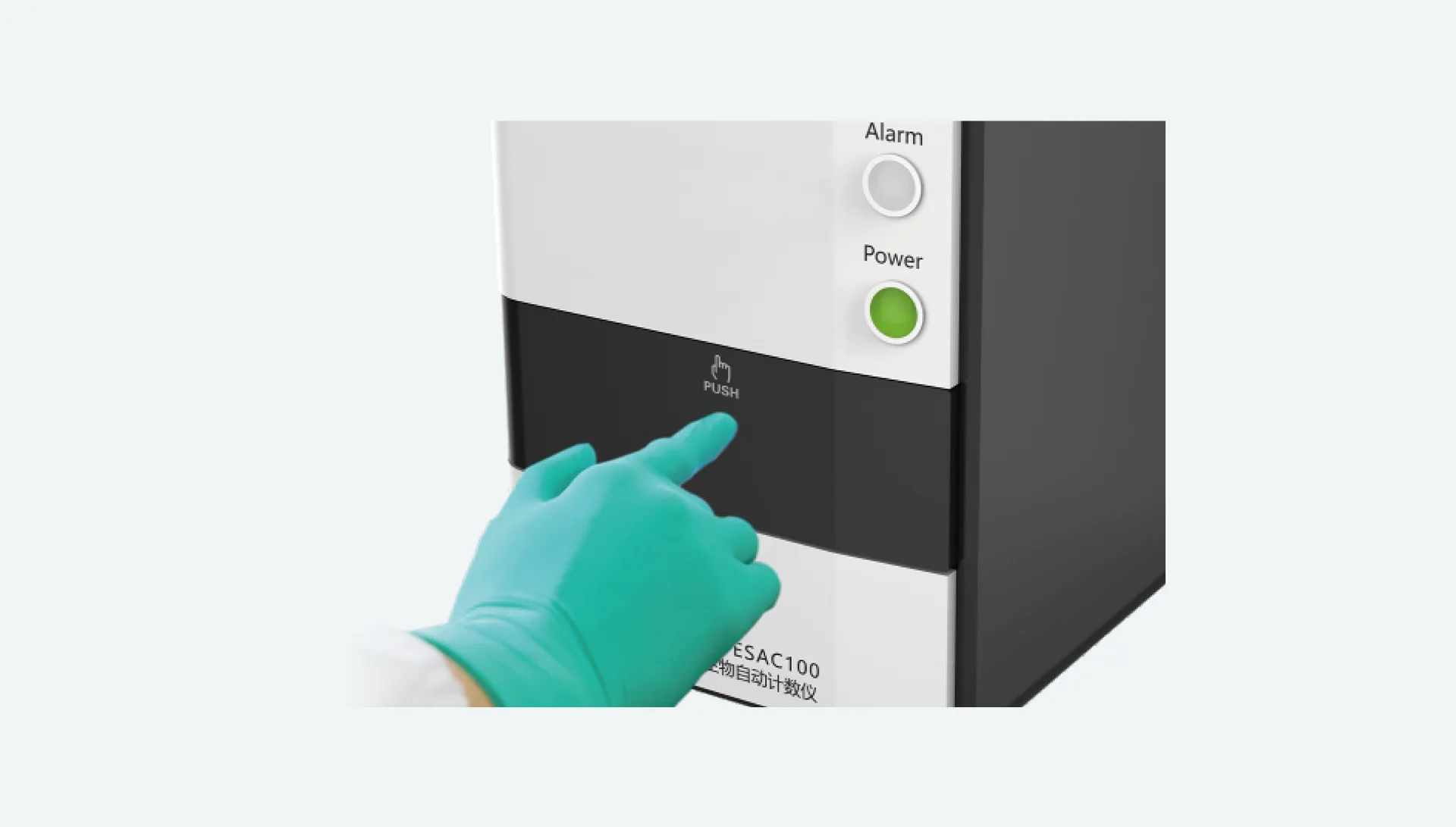

  • Push-pop shelf for user-friendly operation.
  • Door closed signal to prevent interference from external light sources.

Specifications

Quantitative Trays: 97 wells/84 wells/51 wells Recognition Time: <10s
Lighting Sources: Shadowless white light, color temperature: 6500-7500K, integrated 366nm UV lamp + narrow band quartz filter PC: Intel CPU,16GB/1T+256GB
Recognition: HD Camera + Al Algorithm Ambient Temp: 0-45℃
Camera: 1080P, CMOS Overall Size: 243mm×364mm×380mm
Interfaces: USB-A Weight: 12kg
Speical: dilution mode Input: AC220V/50Hz
